ns3::Icmpv6ParameterError Class Reference

ICMPv6 Error Parameter Error header. More...

#include <icmpv6-header.h>

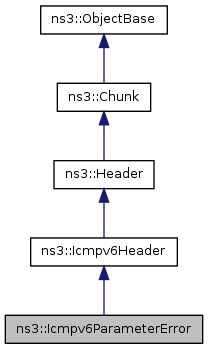

Inheritance diagram for ns3::Icmpv6ParameterError:

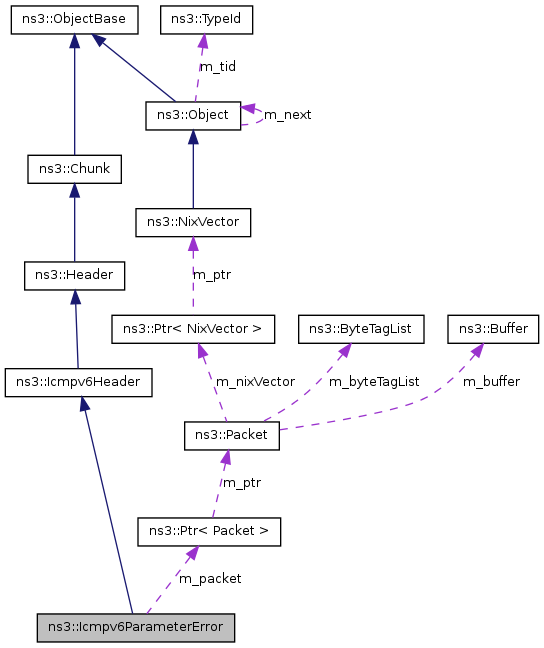

Collaboration diagram for ns3::Icmpv6ParameterError:

List of all members.

Public Member Functions
	Icmpv6ParameterError ()
	Constructor.
virtual	~Icmpv6ParameterError ()
	Destructor.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
Ptr< Packet >	GetPacket () const
	Get the incorrect packet.
void	SetPacket (Ptr< Packet > p)
	Set the incorrect packet.
uint32_t	GetPtr () const
	Get the pointer field.
void	SetPtr (uint32_t ptr)
	Set the pointer field.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.
Private Attributes
Ptr< Packet >	m_packet
	The incorrect packet.
uint32_t	m_ptr
	The pointer field.

---

Detailed Description

ICMPv6 Error Parameter Error header.

---

Member Function Documentation

virtual uint32_t ns3::Icmpv6ParameterError::Deserialize

(

Buffer::Iterator

start

)

[virtual]

Deserialize the packet.

Parameters:

start

start offset

Returns:

length of packet

Reimplemented from ns3::Icmpv6Header.

virtual TypeId ns3::Icmpv6ParameterError::GetInstanceTypeId

(

)

const [virtual]

Get the instance type ID.

Returns:

instance type ID

Reimplemented from ns3::Icmpv6Header.

Ptr<Packet> ns3::Icmpv6ParameterError::GetPacket

(

)

const

Get the incorrect packet.

Returns:

the incorrect packet

uint32_t ns3::Icmpv6ParameterError::GetPtr

(

)

const

Get the pointer field.

Returns:

pointer value

virtual uint32_t ns3::Icmpv6ParameterError::GetSerializedSize

(

)

const [virtual]

Get the serialized size.

Returns:

serialized size

Reimplemented from ns3::Icmpv6Header.

static TypeId ns3::Icmpv6ParameterError::GetTypeId

(

void

)

[static]

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6ParameterError.

Returns:

UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Icmpv6Header.

virtual void ns3::Icmpv6ParameterError::Print

(

std::ostream &

os

)

const [virtual]

Print informations.

Parameters:

os

output stream

Reimplemented from ns3::Icmpv6Header.

virtual void ns3::Icmpv6ParameterError::Serialize

(

Buffer::Iterator

start

)

const [virtual]

Serialize the packet.

Parameters:

start

start offset

Reimplemented from ns3::Icmpv6Header.

void ns3::Icmpv6ParameterError::SetPacket

(

Ptr< Packet >

p

)

Set the incorrect packet.

Parameters:

p

the incorrect packet

void ns3::Icmpv6ParameterError::SetPtr

(

uint32_t

ptr

)

Set the pointer field.

Parameters:

ptr

byte where the error is located in the incorrect packet

---

The documentation for this class was generated from the following files:

• src/internet-stack/icmpv6-header.h
• doc/introspected-doxygen.h
