ns3::Icmpv6Header Class Reference

ICMPv6 header. More...

#include <icmpv6-header.h>

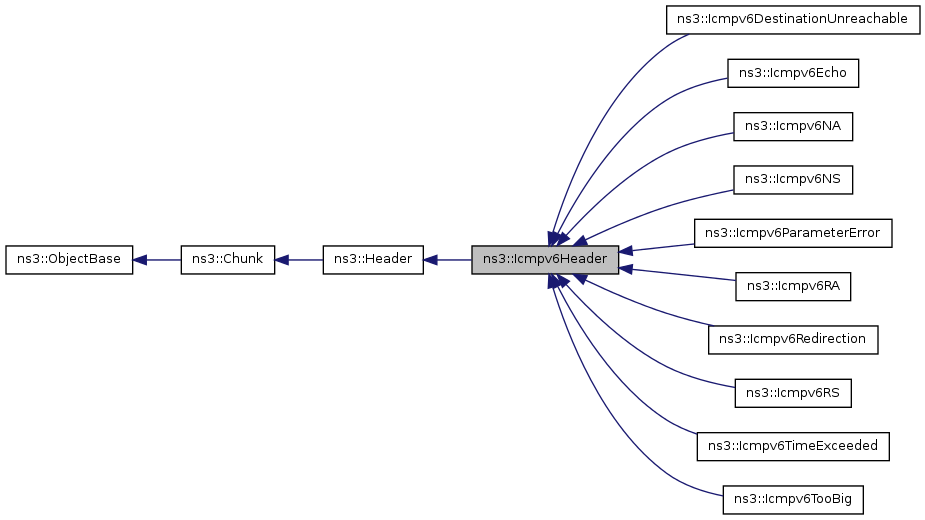

Inheritance diagram for ns3::Icmpv6Header:

Collaboration diagram for ns3::Icmpv6Header:

List of all members.

Public Types
enum	Type_e
	ICMPv6 type code.
enum	OptionType_e
	ICMPv6 Option type code.
enum	ErrorDestinationUnreachable_e
	ICMPv6 error code : Destination Unreachable.
enum	ErrorTimeExceeded_e
	ICMPv6 error code : Time Exceeded.
enum	ErrorParameterError_e
	ICMPv6 error code : Parameter Error.
Public Member Functions
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
	Icmpv6Header ()
	Constructor.
virtual	~Icmpv6Header ()
	Destructor.
uint8_t	GetType () const
	Get the type field.
void	SetType (uint8_t type)
	Set the type.
uint8_t	GetCode () const
	Get the code field.
void	SetCode (uint8_t code)
	Set the code field.
uint16_t	GetChecksum () const
	Get the checksum.
void	SetChecksum (uint16_t checksum)
	Set the checksum.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.
Protected Attributes
bool	m_calcChecksum
	Checksum enable or not.
uint16_t	m_checksum
	The checksum.
Private Attributes
uint8_t	m_type
	The type.
uint8_t	m_code
	The code.

---

Detailed Description

ICMPv6 header.

---

Member Function Documentation

void ns3::Icmpv6Header::CalculatePseudoHeaderChecksum	(	Ipv6Address	src,
		Ipv6Address	dst,
		uint16_t	length,
		uint8_t	protocol
	)

Calculate pseudo header checksum for IPv6.

Parameters:

	src	source address
	dst	destination address
	length	length
	protocol	the protocol number to use in the underlying IPv6 packet.

virtual uint32_t ns3::Icmpv6Header::Deserialize

(

Buffer::Iterator

start

)

[virtual]

Deserialize the packet.

Parameters:

start

start offset

Returns:

length of packet

Implements ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

uint16_t ns3::Icmpv6Header::GetChecksum

(

)

const

Get the checksum.

Returns:

checksum

uint8_t ns3::Icmpv6Header::GetCode

(

)

const

Get the code field.

Returns:

code of ICMPv6 message

virtual TypeId ns3::Icmpv6Header::GetInstanceTypeId

(

)

const [virtual]

Get the instance type ID.

Returns:

instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

virtual uint32_t ns3::Icmpv6Header::GetSerializedSize

(

)

const [virtual]

Get the serialized size.

Returns:

serialized size

Implements ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

uint8_t ns3::Icmpv6Header::GetType

(

)

const

Get the type field.

Returns:

type of ICMPv6 message

static TypeId ns3::Icmpv6Header::GetTypeId

(

void

)

[static]

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6Header.

Returns:

UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

virtual void ns3::Icmpv6Header::Print

(

std::ostream &

os

)

const [virtual]

Print informations.

Parameters:

os

output stream

Implements ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

virtual void ns3::Icmpv6Header::Serialize

(

Buffer::Iterator

start

)

const [virtual]

Serialize the packet.

Parameters:

start

start offset

Implements ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

void ns3::Icmpv6Header::SetChecksum

(

uint16_t

checksum

)

Set the checksum.

Parameters:

checksum

to set

void ns3::Icmpv6Header::SetCode

(

uint8_t

code

)

Set the code field.

Parameters:

code

code to set

void ns3::Icmpv6Header::SetType

(

uint8_t

type

)

Set the type.

Parameters:

type

type to set

---

The documentation for this class was generated from the following files:

• src/internet-stack/icmpv6-header.h
• doc/introspected-doxygen.h
