ns3::Header Class Reference [Packet]

Protocol header serialization and deserialization. More...

#include <header.h>

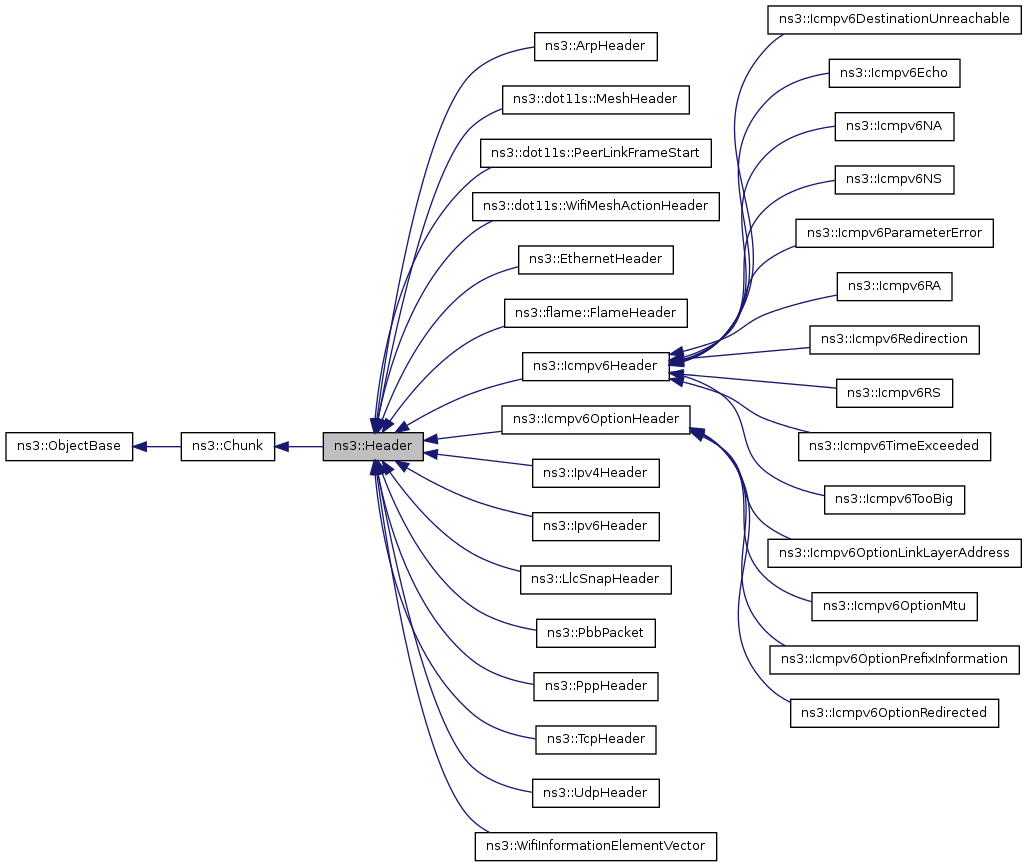

Inheritance diagram for ns3::Header:

Collaboration diagram for ns3::Header:

List of all members.

Public Member Functions
virtual uint32_t	GetSerializedSize (void) const =0
virtual void	Serialize (Buffer::Iterator start) const =0
virtual uint32_t	Deserialize (Buffer::Iterator start)=0
virtual void	Print (std::ostream &os) const =0
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Header.

---

Detailed Description

Protocol header serialization and deserialization.

Every Protocol header which needs to be inserted or removed from a Packet instance must derive from this base class and implement the pure virtual methods defined here.

Sample code which shows how to create a new type of Header, and how to use it, is shown in the sample file samples/main-packet-header.cc

---

Member Function Documentation

virtual uint32_t ns3::Header::Deserialize

(

Buffer::Iterator

start

)

[pure virtual]

Parameters:

start

an iterator which points to where the header should written.

Returns:

the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Chunk.

Implemented in ns3::dot11s::MeshHeader, ns3::dot11s::WifiMeshActionHeader, ns3::dot11s::PeerLinkFrameStart, ns3::flame::FlameHeader, ns3::WifiInformationElementVector, ns3::PppHeader, ns3::ArpHeader, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::TcpHeader, ns3::UdpHeader, ns3::EthernetHeader, ns3::Ipv4Header, ns3::Ipv6Header, ns3::LlcSnapHeader, and ns3::PbbPacket.

virtual uint32_t ns3::Header::GetSerializedSize

(

void

)

const [pure virtual]

Returns:

the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implemented in ns3::dot11s::MeshHeader, ns3::dot11s::WifiMeshActionHeader, ns3::dot11s::PeerLinkFrameStart, ns3::flame::FlameHeader, ns3::WifiInformationElementVector, ns3::PppHeader, ns3::ArpHeader, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::TcpHeader, ns3::UdpHeader, ns3::EthernetHeader, ns3::Ipv4Header, ns3::Ipv6Header, ns3::LlcSnapHeader, and ns3::PbbPacket.

static TypeId ns3::Header::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::Header.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Chunk.

Reimplemented in ns3::dot11s::MeshHeader, ns3::dot11s::WifiMeshActionHeader, ns3::dot11s::PeerLinkFrameStart, ns3::flame::FlameHeader, ns3::WifiInformationElementVector, ns3::PppHeader, ns3::ArpHeader, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::TcpHeader, ns3::UdpHeader, ns3::EthernetHeader, ns3::Ipv4Header, ns3::Ipv6Header, ns3::LlcSnapHeader, and ns3::PbbPacket.

virtual void ns3::Header::Print

(

std::ostream &

os

)

const [pure virtual]

Parameters:

os

output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Chunk.

Implemented in ns3::dot11s::MeshHeader, ns3::dot11s::WifiMeshActionHeader, ns3::dot11s::PeerLinkFrameStart, ns3::flame::FlameHeader, ns3::WifiInformationElementVector, ns3::PppHeader, ns3::ArpHeader, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::TcpHeader, ns3::UdpHeader, ns3::EthernetHeader, ns3::Ipv4Header, ns3::Ipv6Header, ns3::LlcSnapHeader, and ns3::PbbPacket.

virtual void ns3::Header::Serialize

(

Buffer::Iterator

start

)

const [pure virtual]

Parameters:

start

an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implemented in ns3::dot11s::MeshHeader, ns3::dot11s::WifiMeshActionHeader, ns3::dot11s::PeerLinkFrameStart, ns3::flame::FlameHeader, ns3::WifiInformationElementVector, ns3::PppHeader, ns3::ArpHeader, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, ns3::Icmpv6ParameterError, ns3::Icmpv6OptionMtu, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionRedirected, ns3::TcpHeader, ns3::UdpHeader, ns3::EthernetHeader, ns3::Ipv4Header, ns3::Ipv6Header, ns3::LlcSnapHeader, and ns3::PbbPacket.

---

The documentation for this class was generated from the following files:

• src/common/header.h
• doc/introspected-doxygen.h
