ns3::Ipv6Interface Class Reference

The IPv6 representation of a network interface. More...

#include <ipv6-interface.h>

Inheritance diagram for ns3::Ipv6Interface:

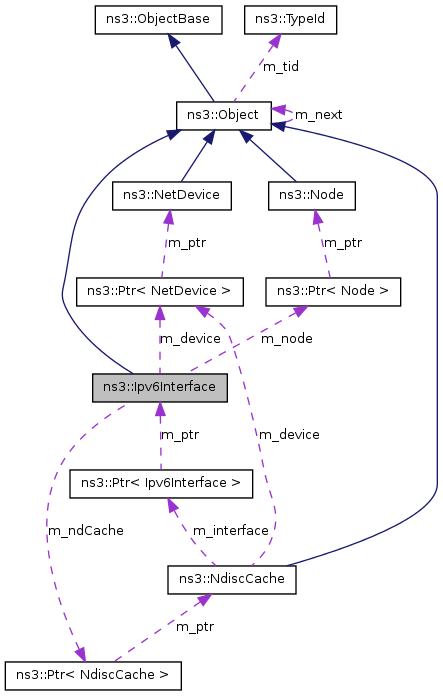

Collaboration diagram for ns3::Ipv6Interface:

List of all members.

Public Member Functions
	Ipv6Interface ()
	Constructs an Ipv6Interface.
virtual	~Ipv6Interface ()
	Destructor.
void	SetNode (Ptr< Node > node)
	Set node associated with interface.
void	SetDevice (Ptr< NetDevice > device)
	Set the NetDevice.
virtual Ptr< NetDevice >	GetDevice () const
	Get the NetDevice.
void	SetMetric (uint16_t metric)
	Set the metric.
uint16_t	GetMetric () const
	Get the metric.
bool	IsUp () const
	Is the interface UP ?
bool	IsDown () const
	Is the interface DOWN ?
void	SetUp ()
	Enable this interface.
void	SetDown ()
	Disable this interface.
bool	IsForwarding () const
	If the interface allows forwarding packets.
void	SetForwarding (bool forward)
	Set forwarding enabled or not.
void	SetCurHopLimit (uint8_t curHopLimit)
	Set the current hop limit.
uint8_t	GetCurHopLimit () const
	Get the current hop limit value.
void	SetBaseReachableTime (uint16_t baseReachableTime)
	Set the base reachable time.
uint16_t	GetBaseReachableTime () const
	Get the base reachable time.
void	SetReachableTime (uint16_t reachableTime)
	Set the reachable time.
uint16_t	GetReachableTime () const
	Get the reachable time.
void	SetRetransTimer (uint16_t retransTimer)
	Set the retransmission timer.
uint16_t	GetRetransTimer () const
	Get the retransmission timer.
void	Send (Ptr< Packet > p, Ipv6Address dest)
	Send a packet through this interface.
bool	AddAddress (Ipv6InterfaceAddress iface)
	Add an IPv6 address.
Ipv6InterfaceAddress	GetLinkLocalAddress () const
	Get link-local address from IPv6 interface.
Ipv6InterfaceAddress	GetAddress (uint32_t index) const
	Get an address from IPv6 interface.
Ipv6InterfaceAddress	GetAddressMatchingDestination (Ipv6Address dst)
	Get an address which is in the same network prefix as destination.
uint32_t	GetNAddresses (void) const
	Get number of addresses on this IPv6 interface.
Ipv6InterfaceAddress	RemoveAddress (uint32_t index)
	Remove an address from interface.
void	SetState (Ipv6Address address, Ipv6InterfaceAddress::State_e state)
	Update state of an interface address.
void	SetNsDadUid (Ipv6Address address, uint32_t uid)
	Update NS DAD packet UID of an interface address.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Protected Member Functions
virtual void	DoDispose ()
	Dispose this object.
Private Member Functions
void	DoSetup ()
	Initialize interface.
Private Attributes
Ipv6InterfaceAddressList	m_addresses
	The addresses assigned to this interface.
bool	m_ifup
	The state of this interface.
bool	m_forwarding
	Forwarding state.
uint16_t	m_metric
	The metric.
Ptr< Node >	m_node
	Node associated with this interface.
Ptr< NetDevice >	m_device
	NetDevice associated with this interface.
Ptr< NdiscCache >	m_ndCache
	Neighbor cache.
uint8_t	m_curHopLimit
	Current hop limit.
uint16_t	m_baseReachableTime
	Base value used for computing the random reachable time value (in millisecond).
uint16_t	m_reachableTime
	Reachable time (in millisecond). The time a neighbor is considered reachable after receiving a reachability confirmation.
uint16_t	m_retransTimer
	Retransmission timer (in millisecond). Time between retransmission of NS.

---

Detailed Description

The IPv6 representation of a network interface.

By default IPv6 interfaces are created in the "down" state with IP "fe80::1" and a /64 prefix. Before becoming useable, the user must invoke SetUp on them once the final IPv6 address and mask has been set.

---

Member Function Documentation

bool ns3::Ipv6Interface::AddAddress

(

Ipv6InterfaceAddress

iface

)

Add an IPv6 address.

Parameters:

iface

address to add

Returns:

true if address was added, false otherwise

Ipv6InterfaceAddress ns3::Ipv6Interface::GetAddress

(

uint32_t

index

)

const

Get an address from IPv6 interface.

Parameters:

index

index

Returns:

Ipv6InterfaceAddress address whose index is i

Ipv6InterfaceAddress ns3::Ipv6Interface::GetAddressMatchingDestination

(

Ipv6Address

dst

)

Get an address which is in the same network prefix as destination.

Parameters:

dst

destination address

Returns:

Corresponding Ipv6InterfaceAddress or assert if not found

uint16_t ns3::Ipv6Interface::GetBaseReachableTime

(

)

const

Get the base reachable time.

Returns:

base reachable time

uint8_t ns3::Ipv6Interface::GetCurHopLimit

(

)

const

Get the current hop limit value.

Returns:

current hop limit

virtual Ptr<NetDevice> ns3::Ipv6Interface::GetDevice

(

)

const [virtual]

Get the NetDevice.

Returns:

the NetDevice associated with this interface

Ipv6InterfaceAddress ns3::Ipv6Interface::GetLinkLocalAddress

(

)

const

Get link-local address from IPv6 interface.

Returns:

link-local Ipv6InterfaceAddress, assert if not found

uint16_t ns3::Ipv6Interface::GetMetric

(

)

const

Get the metric.

Returns:

the metric

uint32_t ns3::Ipv6Interface::GetNAddresses

(

void

)

const

Get number of addresses on this IPv6 interface.

Returns:

number of address

uint16_t ns3::Ipv6Interface::GetReachableTime

(

)

const

Get the reachable time.

Returns:

reachable time

uint16_t ns3::Ipv6Interface::GetRetransTimer

(

)

const

Get the retransmission timer.

Returns:

retransmission timer

static TypeId ns3::Ipv6Interface::GetTypeId

(

void

)

[static]

Get the type ID.

This method returns the TypeId associated to ns3::Ipv6Interface.

Returns:

type ID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

bool ns3::Ipv6Interface::IsDown

(

)

const

Is the interface DOWN ?

Returns:

true if interface is disabled, false otherwise.

bool ns3::Ipv6Interface::IsForwarding

(

)

const

If the interface allows forwarding packets.

Returns:

true if forwarding is enabled, false otherwise

bool ns3::Ipv6Interface::IsUp

(

)

const

Is the interface UP ?

Returns:

true if interface is enabled, false otherwise.

Ipv6InterfaceAddress ns3::Ipv6Interface::RemoveAddress

(

uint32_t

index

)

Remove an address from interface.

Parameters:

index

index to remove

Returns:

Ipv6InterfaceAddress address whose index is index

void ns3::Ipv6Interface::Send	(	Ptr< Packet >	p,
		Ipv6Address	dest
	)

Send a packet through this interface.

Parameters:

	p	packet to send
	dest	next hop address of packet.

Note:

This method will eventually call the private SendTo method which must be implemented by subclasses.

void ns3::Ipv6Interface::SetBaseReachableTime

(

uint16_t

baseReachableTime

)

Set the base reachable time.

Parameters:

baseReachableTime

the value to set

void ns3::Ipv6Interface::SetCurHopLimit

(

uint8_t

curHopLimit

)

Set the current hop limit.

Parameters:

curHopLimit

the value to set

void ns3::Ipv6Interface::SetDevice

(

Ptr< NetDevice >

device

)

Set the NetDevice.

Parameters:

device

NetDevice

void ns3::Ipv6Interface::SetForwarding

(

bool

forward

)

Set forwarding enabled or not.

Parameters:

forward

forwarding state

void ns3::Ipv6Interface::SetMetric

(

uint16_t

metric

)

Set the metric.

Parameters:

metric

configured routing metric (cost) of this interface

void ns3::Ipv6Interface::SetNode

(

Ptr< Node >

node

)

Set node associated with interface.

Parameters:

node

node

void ns3::Ipv6Interface::SetNsDadUid	(	Ipv6Address	address,
		uint32_t	uid
	)

Update NS DAD packet UID of an interface address.

Parameters:

	address	IPv6 address
	uid	packet UID

void ns3::Ipv6Interface::SetReachableTime

(

uint16_t

reachableTime

)

Set the reachable time.

Parameters:

reachableTime

value to set

void ns3::Ipv6Interface::SetRetransTimer

(

uint16_t

retransTimer

)

Set the retransmission timer.

Parameters:

retransTimer

value to set

void ns3::Ipv6Interface::SetState	(	Ipv6Address	address,
		Ipv6InterfaceAddress::State_e	state
	)

Update state of an interface address.

Parameters:

	address	IPv6 address
	state	new state

---

The documentation for this class was generated from the following files:

• src/internet-stack/ipv6-interface.h
• doc/introspected-doxygen.h
