ns3::NdiscCache Class Reference

IPv6 Neighbor Discovery cache. More...

#include <ndisc-cache.h>

Inheritance diagram for ns3::NdiscCache:

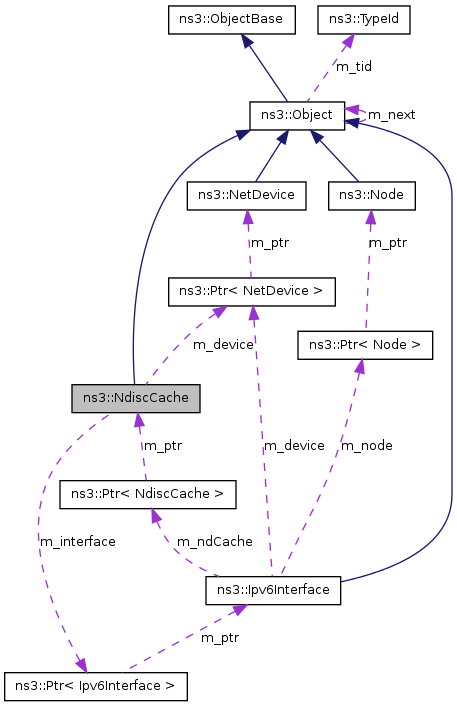

Collaboration diagram for ns3::NdiscCache:

List of all members.

Classes
class	Entry
	A record that holds information about an NdiscCache entry. More...
Public Member Functions
	NdiscCache ()
	Constructor.
	~NdiscCache ()
	Destructor.
Ptr< NetDevice >	GetDevice () const
	Get the NetDevice associated with this cache.
Ptr< Ipv6Interface >	GetInterface () const
	Get the Ipv6Interface associated with this cache.
NdiscCache::Entry *	Lookup (Ipv6Address dst)
	Lookup in the cache.
NdiscCache::Entry *	Add (Ipv6Address to)
	Add an entry.
void	Remove (NdiscCache::Entry *entry)
	Delete an entry.
void	Flush ()
	Flush the cache.
void	SetUnresQlen (uint32_t unresQlen)
	Set the max number of waiting packet.
uint32_t	GetUnresQlen ()
	Get the max number of waiting packet.
void	SetDevice (Ptr< NetDevice > device, Ptr< Ipv6Interface > interface)
	Set the device and interface.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Static Public Attributes
static const uint32_t	DEFAULT_UNRES_QLEN = 3
	Default value for unres qlen.
Private Member Functions
	NdiscCache (NdiscCache const &a)
	Copy constructor.
NdiscCache &	operator= (NdiscCache const &a)
	Equal operator.
void	DoDispose ()
	Dispose this object.
Private Attributes
Ptr< NetDevice >	m_device
	The NetDevice.
Ptr< Ipv6Interface >	m_interface
	the interface.
Cache	m_ndCache
	A list of Entry.
uint32_t	m_unresQlen
	Max number of packet stored in m_waiting.

---

Detailed Description

IPv6 Neighbor Discovery cache.

---

Constructor & Destructor Documentation

ns3::NdiscCache::NdiscCache

(

NdiscCache const &

a

)

[private]

Copy constructor.

Parameters:

a

cache to copy

---

Member Function Documentation

NdiscCache::Entry* ns3::NdiscCache::Add

(

Ipv6Address

to

)

Add an entry.

Parameters:

to

address to add

Returns:

an new Entry

Ptr<NetDevice> ns3::NdiscCache::GetDevice

(

)

const

Get the NetDevice associated with this cache.

Returns:

NetDevice

static TypeId ns3::NdiscCache::GetTypeId

(

)

[static]

Get the type ID.

Returns:

type ID

Reimplemented from ns3::Object.

uint32_t ns3::NdiscCache::GetUnresQlen

(

)

Get the max number of waiting packet.

Returns:

max number

NdiscCache::Entry* ns3::NdiscCache::Lookup

(

Ipv6Address

dst

)

Lookup in the cache.

Parameters:

dst

destination address

Returns:

the entry if found, 0 otherwise

NdiscCache& ns3::NdiscCache::operator=

(

NdiscCache const &

a

)

[private]

Equal operator.

Parameters:

a

cache to copy

void ns3::NdiscCache::Remove

(

NdiscCache::Entry *

entry

)

Delete an entry.

Parameters:

entry

pointer to delete from the list.

void ns3::NdiscCache::SetDevice	(	Ptr< NetDevice >	device,
		Ptr< Ipv6Interface >	interface
	)

Set the device and interface.

Parameters:

	device	the device
	interface	the IPv6 interface

void ns3::NdiscCache::SetUnresQlen

(

uint32_t

unresQlen

)

Set the max number of waiting packet.

Parameters:

unresQlen

value to set

---

The documentation for this class was generated from the following file:

• src/internet-stack/ndisc-cache.h
