Ping6 application helper. More...

#include <ping6-helper.h>

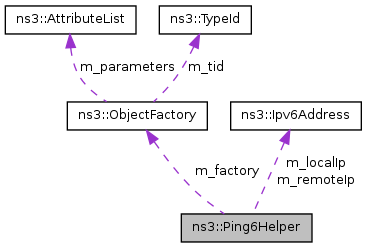

Collaboration diagram for ns3::Ping6Helper:

Public Member Functions
	Ping6Helper ()
	Constructor.
void	SetLocal (Ipv6Address ip)
	Set the local IPv6 address.
void	SetRemote (Ipv6Address ip)
	Set the remote IPv6 address.
void	SetAttribute (std::string name, const AttributeValue &value)
	Set some attributes.
ApplicationContainer	Install (NodeContainer c)
	Install the application in Nodes.
void	SetIfIndex (uint32_t ifIndex)
	Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.
Private Attributes
ObjectFactory	m_factory
	An object factory.
Ipv6Address	m_localIp
	The local IPv6 address.
Ipv6Address	m_remoteIp
	The remote IPv6 address.
uint32_t	m_ifIndex
	Out interface index.

Detailed Description

Ping6 application helper.

Member Function Documentation

ApplicationContainer ns3::Ping6Helper::Install ( NodeContainer c )

Install the application in Nodes.

Parameters:

c

list of Nodes

void ns3::Ping6Helper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set some attributes.

Parameters:

	name	attribute name
	value	attribute value

void ns3::Ping6Helper::SetIfIndex ( uint32_t ifIndex )

Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.

Parameters:

ifIndex

interface index

void ns3::Ping6Helper::SetLocal ( Ipv6Address ip )

Set the local IPv6 address.

Parameters:

ip

local IPv6 address

void ns3::Ping6Helper::SetRemote ( Ipv6Address ip )

Set the remote IPv6 address.

Parameters:

ip

remote IPv6 address

The documentation for this class was generated from the following file:
