ns3::dot11s::PeerLink Class Reference [IEEE 802.11s draft]

Peer link model for 802.11s Peer Management protocol. More...

#include <peer-link.h>

Inheritance diagram for ns3::dot11s::PeerLink:

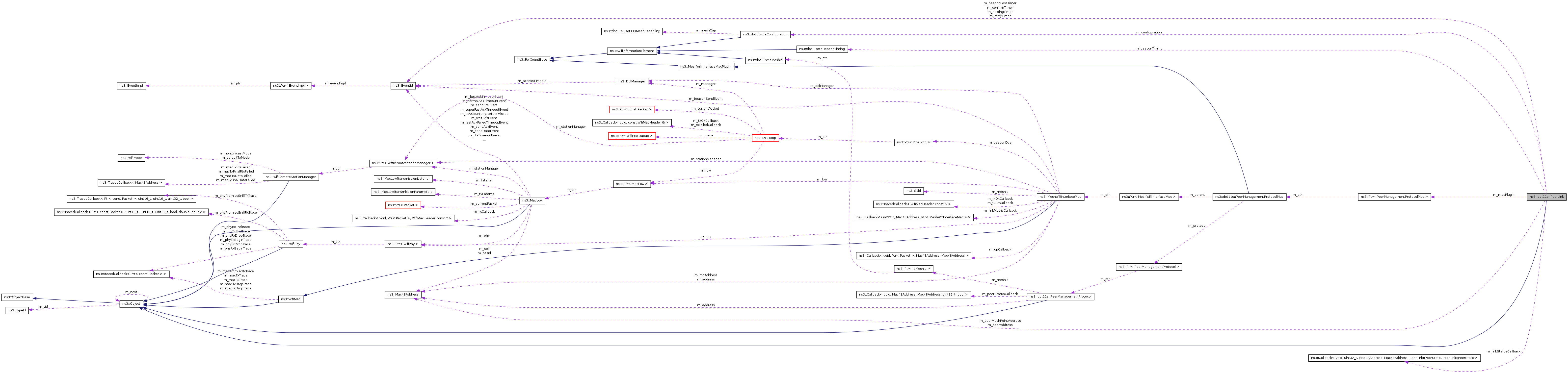

Collaboration diagram for ns3::dot11s::PeerLink:

List of all members.

Public Types
enum	PeerState
	Peer Link state:
Public Member Functions
	PeerLink ()
	C-tor create empty link.
void	DoDispose ()
void	SetBeaconInformation (Time lastBeacon, Time BeaconInterval)
	Process beacon received from peer.
void	SetLinkStatusCallback (Callback< void, uint32_t, Mac48Address, bool > cb)
	Method used to detect peer link changes.
void	Report (std::ostream &os) const
	Statistics.
Peer link getters/setters
void	SetPeerAddress (Mac48Address macaddr)
void	SetPeerMeshPointAddress (Mac48Address macaddr)
void	SetInterface (uint32_t interface)
void	SetLocalLinkId (uint16_t id)
void	SetLocalAid (uint16_t aid)
void	SetBeaconTimingElement (IeBeaconTiming beaconTiming)
Mac48Address	GetPeerAddress () const
uint16_t	GetLocalAid () const
Time	GetLastBeacon () const
Time	GetBeaconInterval () const
IeBeaconTiming	GetBeaconTimingElement () const
Static Public Member Functions
static TypeId	GetTypeId ()
	Support object system.
Private Types
enum	PeerEvent {   CNCL, ACTOPN, CLS_ACPT, OPN_ACPT,   OPN_RJCT, REQ_RJCT, CNF_ACPT, CNF_RJCT,   TOR1, TOR2, TOC, TOH }
	Peer link events, see 802.11s draft 11B.3.3.2. More...
Private Member Functions
void	StateMachine (PeerEvent event, PmpReasonCode=REASON11S_RESERVED)
	State transition.
bool	LinkIsEstab () const
	True if link is established.
bool	LinkIsIdle () const
	True if link is idle. Link can be deleted in this state.
void	SetMacPlugin (Ptr< PeerManagementProtocolMac > plugin)
void	BeaconLoss ()
	Several successive beacons were lost, close link.
Link response to received management frames
Attention: In all this methods {local/peer}LinkID correspond to _peer_ station, as written in received frame, e.g. I am peerLinkID and peer link is localLinkID .
void	Close (uint16_t localLinkID, uint16_t peerLinkID, PmpReasonCode reason)
	Close link.
void	OpenAccept (uint16_t localLinkId, IeConfiguration conf, Mac48Address peerMp)
	Accept open link.
void	OpenReject (uint16_t localLinkId, IeConfiguration conf, Mac48Address peerMp, PmpReasonCode reason)
	Reject open link.
void	ConfirmAccept (uint16_t localLinkId, uint16_t peerLinkId, uint16_t peerAid, IeConfiguration conf, Mac48Address peerMp)
	Confirm accept.
void	ConfirmReject (uint16_t localLinkId, uint16_t peerLinkId, IeConfiguration conf, Mac48Address peerMp, PmpReasonCode reason)
	Confirm reject.
Event handlers
void	ClearRetryTimer ()
void	ClearConfirmTimer ()
void	ClearHoldingTimer ()
void	SetHoldingTimer ()
void	SetRetryTimer ()
void	SetConfirmTimer ()
Work with management frames
void	SendPeerLinkClose (PmpReasonCode reasoncode)
void	SendPeerLinkOpen ()
void	SendPeerLinkConfirm ()
Timeout handlers
void	HoldingTimeout ()
void	RetryTimeout ()
void	ConfirmTimeout ()
Private Attributes
uint32_t	m_interface
	The number of interface I am associated with.
Ptr< PeerManagementProtocolMac >	m_macPlugin
	pointer to MAC plugin, which is responsible for peer management
Mac48Address	m_peerAddress
	Peer address.
Mac48Address	m_peerMeshPointAddress
	Mesh point address, equal to peer address in case of single.
uint16_t	m_localLinkId
	My ID of this link.
uint16_t	m_peerLinkId
	Peer ID of this link.
uint16_t	m_assocId
	My association ID.
uint16_t	m_peerAssocId
	Assoc Id assigned to me by peer.
Time	m_lastBeacon
	When last beacon was received.
Time	m_beaconInterval
	Current beacon interval on corresponding interface.
uint16_t	m_packetFail
	How many successive packets were failed to transmit.
PeerState	m_state
	Current state.
IeConfiguration	m_configuration
	Mesh interface configuration.
IeBeaconTiming	m_beaconTiming
	Beacon timing element received from the peer. Needed by BCA.
SignalStatusCallback	m_linkStatusCallback
	How to report my status change.
Timers & counters used for internal state transitions
uint16_t	m_dot11MeshMaxRetries
Time	m_dot11MeshRetryTimeout
Time	m_dot11MeshHoldingTimeout
Time	m_dot11MeshConfirmTimeout
EventId	m_retryTimer
EventId	m_holdingTimer
EventId	m_confirmTimer
uint16_t	m_retryCounter
EventId	m_beaconLossTimer
uint16_t	m_maxBeaconLoss
uint16_t	m_maxPacketFail
MLME
typedef Callback< void, uint32_t, Mac48Address, Mac48Address, PeerLink::PeerState, PeerLink::PeerState >	SignalStatusCallback
	Callback type for MLME-SignalPeerLinkStatus event.
void	MLMECancelPeerLink (PmpReasonCode reason)
	MLME-CancelPeerLink.request.
void	MLMEActivePeerLinkOpen ()
	MLME-ActivePeerLinkOpen.request.
void	MLMEPeeringRequestReject ()
	MLME-PeeringRequestReject.
void	MLMESetSignalStatusCallback (SignalStatusCallback)
	Set callback.
void	TransmissionSuccess ()
	Reports about transmission success/failure.
void	TransmissionFailure ()

---

Detailed Description

Peer link model for 802.11s Peer Management protocol.

---

Member Enumeration Documentation

enum ns3::dot11s::PeerLink::PeerEvent [private]

Peer link events, see 802.11s draft 11B.3.3.2.

Enumerator:

CNCL	Cancel peer link.
ACTOPN	Active peer link open.
CLS_ACPT	PeerLinkClose_Accept.
OPN_ACPT	PeerLinkOpen_Accept.
OPN_RJCT	PeerLinkOpen_Reject.
REQ_RJCT	PeerLinkOpenReject by internal reason.
CNF_ACPT	PeerLinkConfirm_Accept.
CNF_RJCT	PeerLinkConfirm_Reject.
TOR1	Timeout of retry timer.
TOR2	also timeout of retry timer
TOC	Timeout of confirm timer.
TOH	Timeout of holding (gracefull closing) timer.

---

Member Function Documentation

void ns3::dot11s::PeerLink::DoDispose

(

)

[virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

Reimplemented from ns3::Object.

static TypeId ns3::dot11s::PeerLink::GetTypeId

(

void

)

[static]

Support object system.

This method returns the TypeId associated to ns3::dot11s::PeerLink.

Attributes defined for this type:

• RetryTimeout: Retry timeout
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 40960000ns
  • Flags: construct write read
• HoldingTimeout: Holding timeout
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 40960000ns
  • Flags: construct write read
• ConfirmTimeout: Confirm timeout
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 40960000ns
  • Flags: construct write read
• MaxRetries: Maximum number of retries
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 4
  • Flags: construct write read
• MaxBeaconLoss: Maximum number of lost beacons before link will be closed
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 1:65535
  • Initial value: 2
  • Flags: construct write read
• MaxPacketFailure: Maximum number of failed packets before link will be closed
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 1:65535
  • Initial value: 2
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

void ns3::dot11s::PeerLink::SetLinkStatusCallback

(

Callback< void, uint32_t, Mac48Address, bool >

cb

)

Method used to detect peer link changes.

Parameters:

cb

is a callback, which notifyes, that on interface (uint32_t), peer link with address (Mac48Address) was opened (bool is true) or closed (bool is false)

void ns3::dot11s::PeerLink::SetMacPlugin

(

Ptr< PeerManagementProtocolMac >

plugin

)

[private]

Set pointer to MAC-plugin, which is responsible for sending peer link management frames

---

Member Data Documentation

IeConfiguration ns3::dot11s::PeerLink::m_configuration [private]

Mesh interface configuration.

Attention:

Is not used now, nothing to configure :)

---

The documentation for this class was generated from the following files:

• src/devices/mesh/dot11s/peer-link.h
• doc/introspected-doxygen.h
