ns3::dot11s::PeerManagementProtocolMac Class Reference [IEEE 802.11s draft]

This is plugin to Mesh WiFi MAC, which implements interface to dot11s peer management protocol: it takes proper frames from MAC-layer, extracts peer link management information element and mesh configuration element and passes it to main part of protocol. More...

#include <peer-management-protocol-mac.h>

Inheritance diagram for ns3::dot11s::PeerManagementProtocolMac:

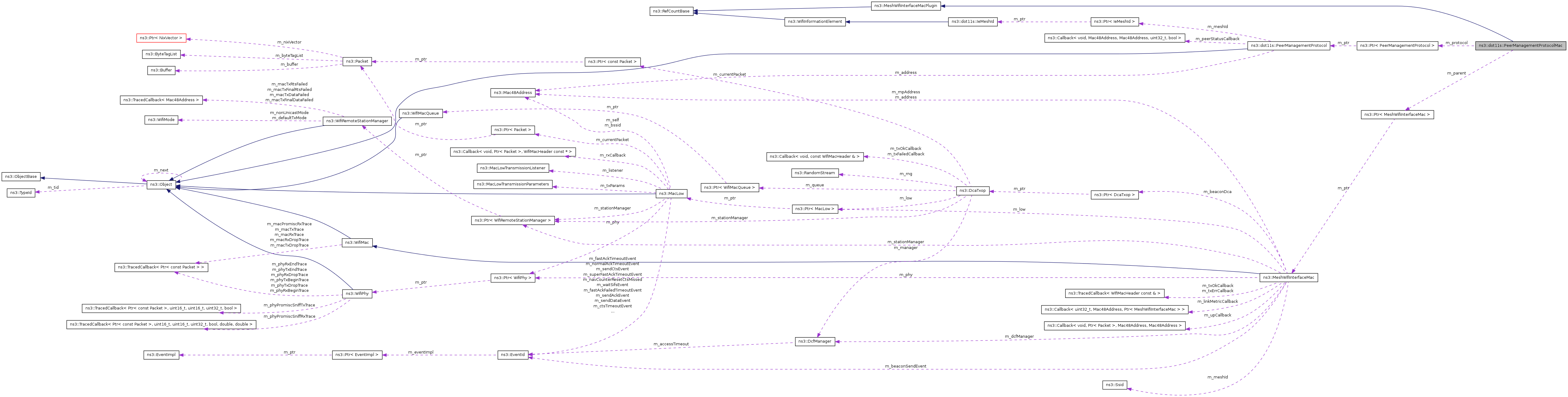

Collaboration diagram for ns3::dot11s::PeerManagementProtocolMac:

List of all members.

Public Member Functions
Inherited from plugin abstract class
void	SetParent (Ptr< MeshWifiInterfaceMac > parent)
	Each plugin must be installed on interface to work.
bool	Receive (Ptr< Packet > packet, const WifiMacHeader &header)
	Process received frame.
bool	UpdateOutcomingFrame (Ptr< Packet > packet, WifiMacHeader &header, Mac48Address from, Mac48Address to)
	Update frame before it will be forwarded down.
void	UpdateBeacon (MeshWifiBeacon &beacon) const
	Update beacon before it will be formed and sent.
Statistics:
void	Report (std::ostream &) const
void	ResetStats ()
uint32_t	GetLinkMetric (Mac48Address peerAddress)
Private Member Functions
Mac48Address	GetAddress () const
	DUBUG only - to print established links.
Create peer link management frames:
Ptr< Packet >	CreatePeerLinkOpenFrame ()
Ptr< Packet >	CreatePeerLinkConfirmFrame ()
Ptr< Packet >	CreatePeerLinkCloseFrame ()
Parses the start of the frame, where there are no
This structure keeps all fields in peer link management frame, which are not subclasses of WifiInformationElement WifiInformationElements exist
PlinkFrameStart	ParsePlinkFrame (Ptr< const Packet > packet)
BCA functionallity:
Fills TBTT and beacon interval. Needed by BCA functionallity Parameters: first  in retval is TBTT second  in retval is beacon interval
std::pair< Time, Time >	GetBeaconInfo () const
void	SetBeaconShift (Time shift)
Private Attributes
Statistics
struct Statistics	m_stats
Information about MAC and protocol:
Ptr< MeshWifiInterfaceMac >	m_parent
uint32_t	m_ifIndex
Ptr< PeerManagementProtocol >	m_protocol

---

Detailed Description

This is plugin to Mesh WiFi MAC, which implements interface to dot11s peer management protocol: it takes proper frames from MAC-layer, extracts peer link management information element and mesh configuration element and passes it to main part of protocol.

---

Member Function Documentation

bool ns3::dot11s::PeerManagementProtocolMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader &	header
	)			[virtual]

Process received frame.

Returns:

false if (and only if) frame should be dropped TODO define when MAC call this

Implements ns3::MeshWifiInterfaceMacPlugin.

void ns3::dot11s::PeerManagementProtocolMac::UpdateBeacon

(

MeshWifiBeacon &

beacon

)

const [virtual]

Update beacon before it will be formed and sent.

TODO define when MAC call this

Implements ns3::MeshWifiInterfaceMacPlugin.

bool ns3::dot11s::PeerManagementProtocolMac::UpdateOutcomingFrame	(	Ptr< Packet >	packet,
		WifiMacHeader &	header,
		Mac48Address	from,
		Mac48Address	to
	)			[virtual]

Update frame before it will be forwarded down.

Returns:

false if (and only if) frame should be dropped TODO define when MAC call this, preconditions & postconditions

Implements ns3::MeshWifiInterfaceMacPlugin.

---

The documentation for this class was generated from the following file:

• src/devices/mesh/dot11s/peer-management-protocol-mac.h
