ns3::dot11s::PeerManagementProtocol Class Reference
[IEEE 802.11s draft]

802.11s Peer Management Protocol model More...

#include <peer-management-protocol.h>

Inheritance diagram for ns3::dot11s::PeerManagementProtocol:
Inheritance graph
[legend]

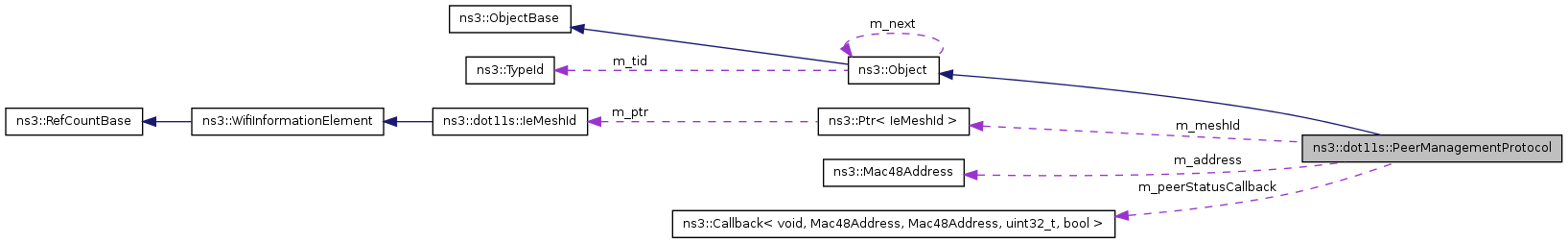

Collaboration diagram for ns3::dot11s::PeerManagementProtocol:
Collaboration graph
[legend]

List of all members.

Classes

struct  BeaconInfo
 Keeps information about beacon of peer station: beacon interval, association ID, last time we have received a beacon. More...

Public Member Functions

void DoDispose ()
bool Install (Ptr< MeshPointDevice >)
 Install PMP on given mesh point.
Ptr< PeerLink > FindPeerLink (uint32_t interface, Mac48Address peerAddress)
 Needed by external module to do MLME.
Mac48Address GetAddress ()
 needed by plugins to set global source address
uint8_t GetNumberOfLinks ()
 Needed to fill mesh configuration.
void Report (std::ostream &) const
 : Report statistics
This methods interact with MAC_layer plug-in

Methods that handle beacon sending/receiving procedure.

Ptr< IeBeaconTiming > GetBeaconTimingElement (uint32_t interface)
 When we are sending a beacon - we fill beacon timing element.
void UpdatePeerBeaconTiming (uint32_t interface, bool meshBeacon, IeBeaconTiming timingElement, Mac48Address peerAddress, Time receivingTime, Time beaconInterval)
 When we receive a beacon from peer-station, we remember its beacon timing element (needed for peer choosing mechanism), and remember beacon timers - last beacon and beacon interval to detect beacon loss and cancel links.

void ReceivePeerLinkFrame (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddress, uint16_t aid, IePeerManagement peerManagementElement, IeConfiguration meshConfig)
 Methods that handle Peer link management frames interaction:
void ConfigurationMismatch (uint32_t interface, Mac48Address peerAddress)
 Cancels peer link due to broken configuration (Mesh ID or Supported rates).
void TransmissionFailure (uint32_t interface, const Mac48Address peerAddress)
 Cancels peer link due to successive transmission failures.
void TransmissionSuccess (uint32_t interface, const Mac48Address peerAddress)
 resets transmission failure statistics
bool IsActiveLink (uint32_t interface, Mac48Address peerAddress)
 Checks if there is established link.

Static Public Member Functions

static TypeId GetTypeId ()
 This method returns the TypeId associated to ns3::dot11s::PeerManagementProtocol.

Private Types

Private structures

typedef std::vector< Ptr
< PeerLink > > 		PeerLinksOnInterface
typedef std::map< uint32_t,
PeerLinksOnInterface > 		PeerLinksMap
 This map keeps all peer links.
typedef std::map< Mac48Address,
BeaconInfo > 		BeaconsOnInterface
 This map keeps relationship between peer address and its beacon information.
typedef std::map< uint32_t,
BeaconsOnInterface > 		BeaconInfoMap
 This map keeps beacon information on all intefaces.
typedef std::map< uint32_t,
Ptr< PeerManagementProtocolMac > > 		PeerManagementProtocolMacMap
 this vector keeps pointers to MAC-plugins

Private Member Functions

void FillBeaconInfo (uint32_t interface, Mac48Address peerAddress, Time receivingTime, Time beaconInterval)
 Fills information of received beacon. Needed to form own beacon timing element.
void PeerLinkStatus (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddres, PeerLink::PeerState ostate, PeerLink::PeerState nstate)
 Indicates changes in peer links.
Time GetNextBeaconShift (uint32_t interface)
 BCA.
External peer-chooser

bool ShouldSendOpen (uint32_t interface, Mac48Address peerAddress)
bool ShouldAcceptOpen (uint32_t interface, Mac48Address peerAddress, PmpReasonCode &reasonCode)
Time<-->TU converters:

Time TuToTime (uint32_t x)
uint32_t TimeToTu (Time x)

Private Attributes

Callback< void, Mac48Address,
Mac48Address, uint32_t, bool > 		m_peerStatusCallback
 Callback to notify about peer link changes: Mac48Address is peer address of mesh point, Mac48Address is peer address of interface, uint32_t - interface ID, bool is status - true when new link has appeared, false - when link was closed,.
Information related to beacons:

BeaconInfoMap m_neighbourBeacons
Peer Links

PeerLinksMap m_peerLinks
Statistics:

struct Statistics m_stats

Detailed Description

802.11s Peer Management Protocol model

Member Typedef Documentation

typedef std::vector<Ptr<PeerLink> > ns3::dot11s::PeerManagementProtocol::PeerLinksOnInterface [private]

We keep a vector of pointers to PeerLink class. This vector keeps all peer links at a given interface.

Member Function Documentation

void ns3::dot11s::PeerManagementProtocol::DoDispose (  )  [virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

Reimplemented from ns3::Object.

Ptr<IeBeaconTiming> ns3::dot11s::PeerManagementProtocol::GetBeaconTimingElement ( uint32_t  interface  )

When we are sending a beacon - we fill beacon timing element.

Returns:
IeBeaconTiming is a beacon timing element that should be present in beacon
Parameters:
interface is a interface sending a beacon
static TypeId ns3::dot11s::PeerManagementProtocol::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::dot11s::PeerManagementProtocol.

Attributes defined for this type:

  • MaxNumberOfPeerLinks: Maximum number of peer links
  • MaxBeaconLossForBeaconTiming: If maximum number of beacons were lost, station will not included in beacon timing element

No TraceSources defined for this type.

Reimplemented from ns3::Object.

bool ns3::dot11s::PeerManagementProtocol::Install ( Ptr< MeshPointDevice >   )

Install PMP on given mesh point.

Installing protocol cause installing its interface MAC plugins.

Also MP aggregates all installed protocols, PMP protocol can be accessed via MeshPointDevice::GetObject<PeerManagementProtocol>();

void ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame ( uint32_t  interface,
Mac48Address  peerAddress,
Mac48Address  peerMeshPointAddress,
uint16_t  aid,
IePeerManagement  peerManagementElement,
IeConfiguration  meshConfig
)

Methods that handle Peer link management frames interaction:

Deliver Peer link management information to the protocol-part

Parameters:
interface is a interface ID of a given MAC (interfaceID rather than MAC address, because many interfaces may have the same MAC)
peerAddress is address of peer
peerMeshPointAddress is address of peer mesh point device (equal to peer address when only one interface)
aid is association ID, which peer has assigned to us
peerManagementElement is peer link management element
meshConfig is mesh configuration element taken from the peer management frame
void ns3::dot11s::PeerManagementProtocol::UpdatePeerBeaconTiming ( uint32_t  interface,
bool  meshBeacon,
IeBeaconTiming  timingElement,
Mac48Address  peerAddress,
Time  receivingTime,
Time  beaconInterval
)

When we receive a beacon from peer-station, we remember its beacon timing element (needed for peer choosing mechanism), and remember beacon timers - last beacon and beacon interval to detect beacon loss and cancel links.

Parameters:
interface is a interface on which beacon was received
meshBeacon indicates whether the beacon is mesh beacon or not.
timingElement is a timing element of remote beacon
peerAddress is an address where a beacon was received from
receivingTime is a time when beacon was received
beaconInterval is a beacon interval of received beacon
The documentation for this class was generated from the following files:
