Interface MAC plugin FLAME routing protocol. More...

#include <flame-protocol-mac.h>

Inheritance diagram for ns3::flame::FlameProtocolMac:

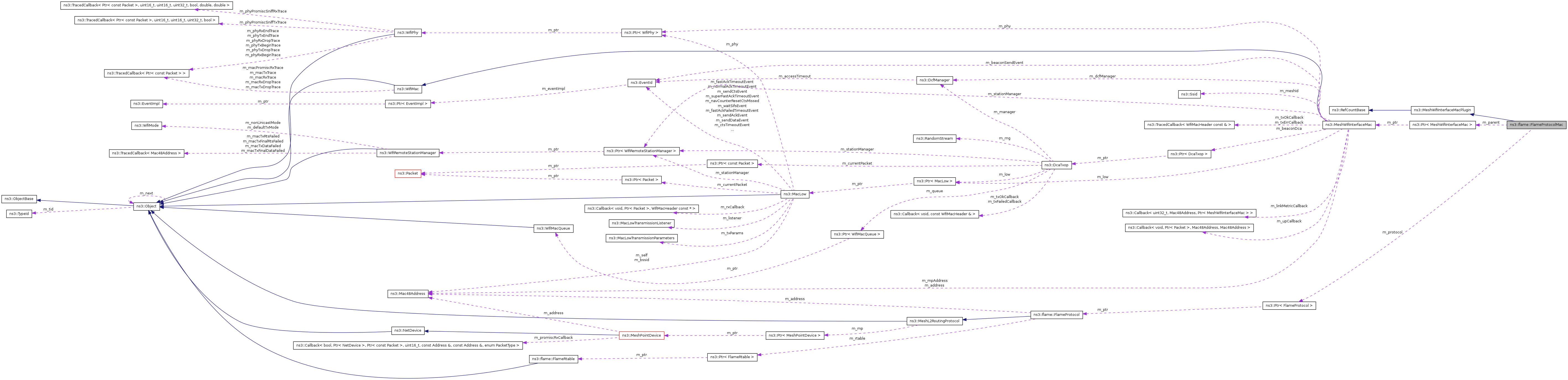

Collaboration diagram for ns3::flame::FlameProtocolMac:

Public Member Functions
void	Report (std::ostream &) const
	Report statistics.
Inherited from MAC plugin

void	SetParent (Ptr< MeshWifiInterfaceMac > parent)
	Each plugin must be installed on interface to work.
bool	Receive (Ptr< Packet > packet, const WifiMacHeader &header)
	Process received frame.
bool	UpdateOutcomingFrame (Ptr< Packet > packet, WifiMacHeader &header, Mac48Address from, Mac48Address to)
	Update frame before it will be forwarded down.
void	UpdateBeacon (MeshWifiBeacon &beacon) const
	Update beacon is empty, because HWMP does not know anything about beacons.
Private Attributes
MeshPointDevice parameters:

Ptr< FlameProtocol >	m_protocol
uint32_t	m_ifIndex
Ptr< MeshWifiInterfaceMac >	m_parent
Statistics:

Statistics	m_stats

Detailed Description

Interface MAC plugin FLAME routing protocol.

Member Function Documentation

bool ns3::flame::FlameProtocolMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader &	header
	)			`[virtual]`

Process received frame.

Returns:: false if (and only if) frame should be dropped TODO define when MAC call this

bool ns3::flame::FlameProtocolMac::UpdateOutcomingFrame	(	Ptr< Packet >	packet,
		WifiMacHeader &	header,
		Mac48Address	from,
		Mac48Address	to
	)			`[virtual]`

Update frame before it will be forwarded down.

Returns:: false if (and only if) frame should be dropped TODO define when MAC call this, preconditions & postconditions

The documentation for this class was generated from the following file:
