ns3::MinstrelWifiRemoteStation Class Reference

Inheritance diagram for ns3::MinstrelWifiRemoteStation:

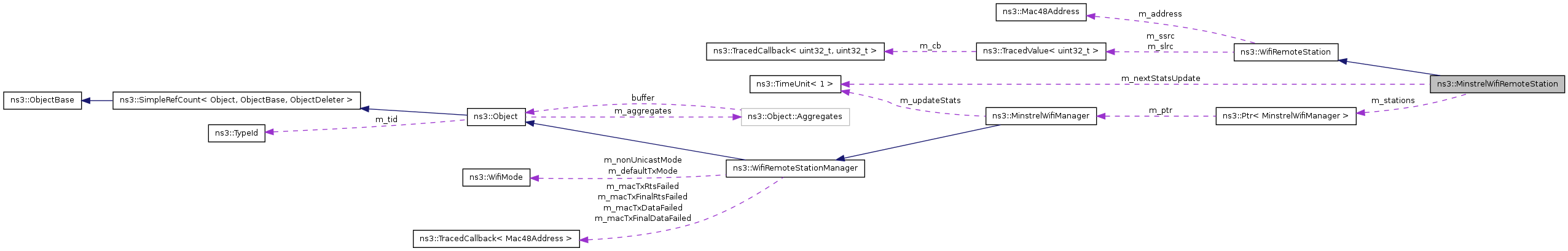

Collaboration diagram for ns3::MinstrelWifiRemoteStation:

List of all members.

Public Member Functions
	MinstrelWifiRemoteStation (Ptr< MinstrelWifiManager > stations)
Protected Member Functions
virtual void	DoReportRxOk (double rxSnr, WifiMode txMode)
virtual void	DoReportRtsFailed (void)
	when RTS timeout expires
virtual void	DoReportDataFailed (void)
virtual void	DoReportRtsOk (double ctsSnr, WifiMode ctsMode, double rtsSnr)
	when receive a CTS, associated with an RTS
virtual void	DoReportDataOk (double ackSnr, WifiMode ackMode, double dataSnr)
	when an ACK, associated with a data pkt, is received
virtual void	DoReportFinalRtsFailed (void)
	after calling ReportRtsFailed if NeedRtsRetransmission returns false
virtual void	DoReportFinalDataFailed (void)
	after calling ReportDataFailed if NeedDataRetransmission returns false

---

Member Function Documentation

virtual void ns3::MinstrelWifiRemoteStation::DoReportDataFailed

(

void

)

[protected, virtual]

Retry Chain table is implemented here

Try | LOOKAROUND RATE | NORMAL RATE | random < best | random > best | -------------------------------------------------------------- 1 | Best throughput | Random rate | Best throughput 2 | Random rate | Best throughput | Next best throughput 3 | Best probability | Best probability | Best probability 4 | Lowest Baserate | Lowest baserate | Lowest baserate

Note: For clarity, multiple blocks of if's and else's are used After a failing 7 times, DoReportFinalDataFailed will be called

Implements ns3::WifiRemoteStation.

virtual void ns3::MinstrelWifiRemoteStation::DoReportRxOk	(	double	rxSnr,
		WifiMode	txMode
	)			[protected, virtual]

when packet is successfully received see wifi-remote-station-manager.h for more documentation

Implements ns3::WifiRemoteStation.

---

The documentation for this class was generated from the following file:

• src/devices/wifi/minstrel-wifi-manager.h
