A simple channel, for simple things and testing. More...
#include <simple-channel.h>

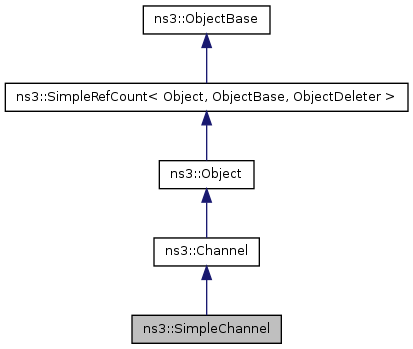

Inheritance diagram for ns3::SimpleChannel:

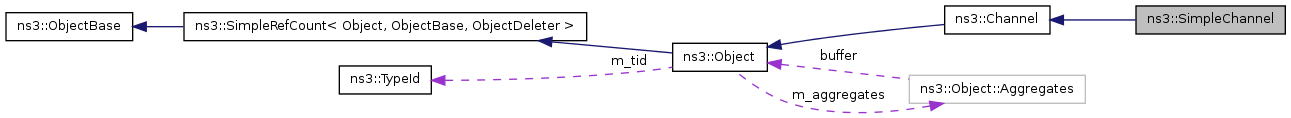

Collaboration diagram for ns3::SimpleChannel:
Public Member Functions | |
| void | Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< SimpleNetDevice > sender) |
| void | Add (Ptr< SimpleNetDevice > device) |
| virtual uint32_t | GetNDevices (void) const |
| virtual Ptr< NetDevice > | GetDevice (uint32_t i) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::Channel. | |
Detailed Description
A simple channel, for simple things and testing.
Member Function Documentation
- Parameters:
-
i index of NetDevice to retrieve
- Returns:
- one of the NetDevices connected to this channel.
This method must be implemented by subclasses.
Implements ns3::Channel.
| virtual uint32_t ns3::SimpleChannel::GetNDevices | ( | void | ) | const [virtual] |
- Returns:
- the number of NetDevices connected to this Channel.
This method must be implemented by subclasses.
Implements ns3::Channel.
| static TypeId ns3::SimpleChannel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::Channel.
Attributes defined for this type:
-
Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read
No TraceSources defined for this type.
Reimplemented from ns3::Channel.
The documentation for this class was generated from the following file:
- src/node/simple-channel.h
