ns3::YansWifiPhy Class Reference

802.11 PHY layer model More...

#include <yans-wifi-phy.h>

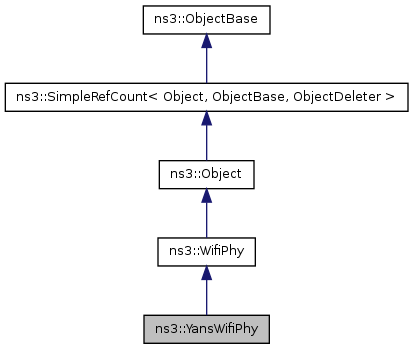

Inheritance diagram for ns3::YansWifiPhy:

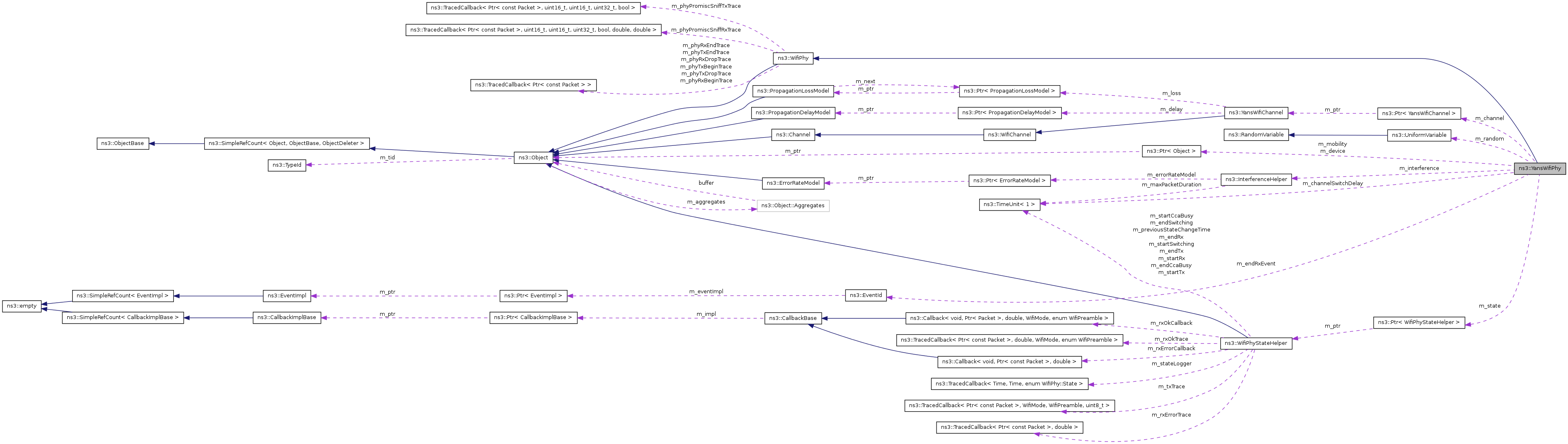

Collaboration diagram for ns3::YansWifiPhy:

List of all members.

Public Member Functions
void	SetChannel (Ptr< YansWifiChannel > channel)
void	SetChannelNumber (uint16_t id)
	Set channel number.
uint16_t	GetChannelNumber () const
	Return current channel number, see SetChannelNumber().
double	GetChannelFrequencyMhz () const
	Return current center channel frequency in MHz, see SetСhannelNumber().
void	StartReceivePacket (Ptr< Packet > packet, double rxPowerDbm, WifiMode mode, WifiPreamble preamble)
void	SetRxNoiseFigure (double noiseFigureDb)
void	SetTxPowerStart (double start)
void	SetTxPowerEnd (double end)
void	SetNTxPower (uint32_t n)
void	SetTxGain (double gain)
void	SetRxGain (double gain)
void	SetEdThreshold (double threshold)
void	SetCcaMode1Threshold (double threshold)
void	SetErrorRateModel (Ptr< ErrorRateModel > rate)
void	SetDevice (Ptr< Object > device)
void	SetMobility (Ptr< Object > mobility)
double	GetRxNoiseFigure (void) const
double	GetTxGain (void) const
double	GetRxGain (void) const
double	GetEdThreshold (void) const
double	GetCcaMode1Threshold (void) const
Ptr< ErrorRateModel >	GetErrorRateModel (void) const
Ptr< Object >	GetDevice (void) const
Ptr< Object >	GetMobility (void)
virtual double	GetTxPowerStart (void) const
virtual double	GetTxPowerEnd (void) const
virtual uint32_t	GetNTxPower (void) const
virtual void	SetReceiveOkCallback (WifiPhy::RxOkCallback callback)
virtual void	SetReceiveErrorCallback (WifiPhy::RxErrorCallback callback)
virtual void	SendPacket (Ptr< const Packet > packet, WifiMode mode, enum WifiPreamble preamble, uint8_t txPowerLevel)
virtual void	RegisterListener (WifiPhyListener *listener)
virtual bool	IsStateCcaBusy (void)
virtual bool	IsStateIdle (void)
virtual bool	IsStateBusy (void)
virtual bool	IsStateRx (void)
virtual bool	IsStateTx (void)
virtual bool	IsStateSwitching (void)
virtual Time	GetStateDuration (void)
virtual Time	GetDelayUntilIdle (void)
virtual Time	GetLastRxStartTime (void) const
virtual Time	CalculateTxDuration (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble) const
virtual uint32_t	GetNModes (void) const
virtual WifiMode	GetMode (uint32_t mode) const
virtual double	CalculateSnr (WifiMode txMode, double ber) const
virtual Ptr< WifiChannel >	GetChannel (void) const
virtual void	ConfigureStandard (enum WifiPhyStandard standard)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::YansWifiPhy.

---

Detailed Description

802.11 PHY layer model

This PHY implements a model of 802.11a. The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).

This PHY model depends on a channel loss and delay model as provided by the ns3::PropagationLossModel and ns3::PropagationDelayModel classes, both of which are members of the ns3::YansWifiChannel class.

---

Member Function Documentation

virtual double ns3::YansWifiPhy::CalculateSnr	(	WifiMode	txMode,
		double	ber
	)			const [virtual]

Parameters:

	txMode	the transmission mode
	ber	the probability of bit error rate

Returns:

the minimum snr which is required to achieve the requested ber for the specified transmission mode. (W/W)

Implements ns3::WifiPhy.

virtual Time ns3::YansWifiPhy::CalculateTxDuration	(	uint32_t	size,
		WifiMode	payloadMode,
		enum WifiPreamble	preamble
	)			const [virtual]

Parameters:

	size	the number of bytes in the packet to send
	payloadMode	the transmission mode to use for this packet
	preamble	the type of preamble to use for this packet.

Returns:

the total amount of time this PHY will stay busy for the transmission of these bytes.

Implements ns3::WifiPhy.

virtual Time ns3::YansWifiPhy::GetDelayUntilIdle

(

void

)

[virtual]

Returns:

the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE _before_ the delay returned by this method but it could become really idle later.

Implements ns3::WifiPhy.

virtual WifiMode ns3::YansWifiPhy::GetMode

(

uint32_t

mode

)

const [virtual]

Parameters:

mode

index in array of supported modes

Returns:

the mode whose index is specified.

Implements ns3::WifiPhy.

virtual uint32_t ns3::YansWifiPhy::GetNModes

(

void

)

const [virtual]

Returns:

the number of transmission modes supported by this PHY.

Implements ns3::WifiPhy.

virtual uint32_t ns3::YansWifiPhy::GetNTxPower

(

void

)

const [virtual]

Returns:

the number of tx power levels available for this PHY.

Implements ns3::WifiPhy.

virtual Time ns3::YansWifiPhy::GetStateDuration

(

void

)

[virtual]

Returns:

the amount of time since the current state has started.

Implements ns3::WifiPhy.

static TypeId ns3::YansWifiPhy::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::YansWifiPhy.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/$ns3::YansWifiPhy

Attributes defined for this type:

• EnergyDetectionThreshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: -96
  • Flags: construct write read
• CcaMode1Threshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to declare CCA BUSY state
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: -99
  • Flags: construct write read
• TxGain: Transmission gain (dB).
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 1
  • Flags: construct write read
• RxGain: Reception gain (dB).
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 1
  • Flags: construct write read
• TxPowerLevels: Number of transmission power levels available between TxPowerBase and TxPowerEnd included.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1
  • Flags: construct write read
• TxPowerEnd: Maximum available transmission level (dbm).
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 16.0206
  • Flags: construct write read
• TxPowerStart: Minimum available transmission level (dbm).
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 16.0206
  • Flags: construct write read
• RxNoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0 (usually 290 K)". For
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 7
  • Flags: construct write read
• State: The state of the PHY layer
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::WifiPhyStateHelper >
  • Initial value: 0
  • Flags: construct write read
• ChannelSwitchDelay: Delay between two short frames transmitted on different frequencies. NOTE: Unused now.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 250000ns
  • Flags: construct write read
• ChannelNumber: Channel center frequency = Channel starting frequency + 5 MHz * (nch - 1)
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 1
  • Flags: construct write read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::WifiPhy:

• PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
• PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel
• PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
• PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
• PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
• PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
• PromiscSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
• PromiscSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted

Reimplemented from ns3::WifiPhy.

virtual bool ns3::YansWifiPhy::IsStateBusy

(

void

)

[virtual]

Returns:

true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implements ns3::WifiPhy.

virtual bool ns3::YansWifiPhy::IsStateCcaBusy

(

void

)

[virtual]

Returns:

true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implements ns3::WifiPhy.

virtual bool ns3::YansWifiPhy::IsStateIdle

(

void

)

[virtual]

Returns:

true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implements ns3::WifiPhy.

virtual bool ns3::YansWifiPhy::IsStateRx

(

void

)

[virtual]

Returns:

true of the current state of the PHY layer is WifiPhy::RX, false otherwise.

Implements ns3::WifiPhy.

virtual bool ns3::YansWifiPhy::IsStateSwitching

(

void

)

[virtual]

Returns:

true of the current state of the PHY layer is WifiPhy::SWITCHING, false otherwise.

Implements ns3::WifiPhy.

virtual bool ns3::YansWifiPhy::IsStateTx

(

void

)

[virtual]

Returns:

true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implements ns3::WifiPhy.

virtual void ns3::YansWifiPhy::RegisterListener

(

WifiPhyListener *

listener

)

[virtual]

Parameters:

listener

the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implements ns3::WifiPhy.

virtual void ns3::YansWifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiMode	mode,
		enum WifiPreamble	preamble,
		uint8_t	txPowerLevel
	)			[virtual]

Parameters:

	packet	the packet to send
	mode	the transmission mode to use to send this packet
	preamble	the type of preamble to use to send this packet.
	txPowerLevel	a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels

Implements ns3::WifiPhy.

void ns3::YansWifiPhy::SetChannelNumber

(

uint16_t

id

)

[virtual]

Set channel number.

Channel center frequency = Channel starting frequency + 5 MHz * (nch - 1)

where Starting channel frequency is standard-dependent, see SetStandard() as defined in IEEE 802.11-2007 17.3.8.3.2.

YansWifiPhy can switch among different channels. Basically, YansWifiPhy has a private attribute m_channelNumber that identifies the channel the PHY operates on. Channel switching cannot interrupt an ongoing transmission. When PHY is in TX state, the channel switching is postponed until the end of the current transmission. When the PHY is in RX state, the channel switching causes the drop of the synchronized packet.

Implements ns3::WifiPhy.

virtual void ns3::YansWifiPhy::SetReceiveErrorCallback

(

WifiPhy::RxErrorCallback

callback

)

[virtual]

Parameters:

callback

the callback to invoke upon erronous packet reception.

Implements ns3::WifiPhy.

virtual void ns3::YansWifiPhy::SetReceiveOkCallback

(

WifiPhy::RxOkCallback

callback

)

[virtual]

Parameters:

callback

the callback to invoke upon successful packet reception.

Implements ns3::WifiPhy.

---

The documentation for this class was generated from the following files:

• src/devices/wifi/yans-wifi-phy.h
• doc/introspected-doxygen.h
