IPv6 Option base. More...

#include <ipv6-option.h>

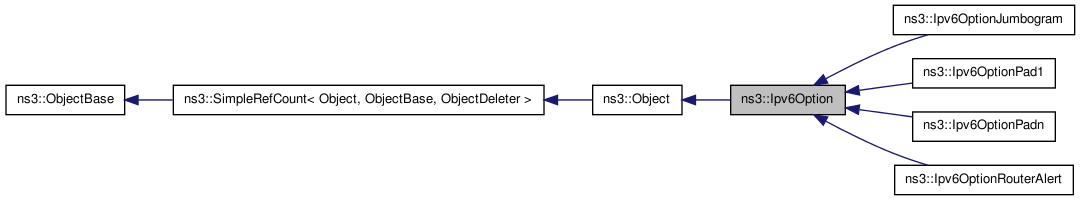

Inheritance diagram for ns3::Ipv6Option:

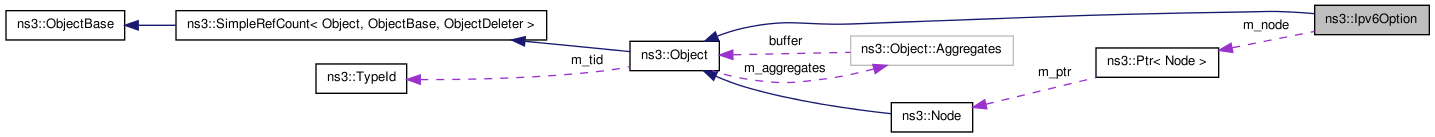

Collaboration diagram for ns3::Ipv6Option:

Public Member Functions
virtual	~Ipv6Option ()
	Destructor.
void	SetNode (Ptr< Node > node)
	Set the node.
virtual uint8_t	GetOptionNumber () const =0
	Get the option number.
virtual uint8_t	Process (Ptr< Packet > packet, uint8_t offset, Ipv6Header const &ipv6Header, bool &isDropped)=0
	Process method.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Detailed Description

IPv6 Option base.

If you want to implement a new IPv6 option, all you have to do is implement a subclass of this class and add it to an Ipv6OptionDemux.

Member Function Documentation

virtual uint8_t ns3::Ipv6Option::GetOptionNumber ( ) const [pure virtual]

Get the option number.

Returns:: option number

Implemented in ns3::Ipv6OptionPad1, ns3::Ipv6OptionPadn, ns3::Ipv6OptionJumbogram, and ns3::Ipv6OptionRouterAlert.

static TypeId ns3::Ipv6Option::GetTypeId ( void ) [static]

Get the type identificator.

This method returns the TypeId associated to ns3::Ipv6Option.

Returns:: type identificator

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6OptionDemux/Options/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6Option
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6OptionDemux/Options/[i]

Attributes defined for this type:

OptionNumber: The IPv6 option number.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::Ipv6OptionPad1, ns3::Ipv6OptionPadn, ns3::Ipv6OptionJumbogram, and ns3::Ipv6OptionRouterAlert.

virtual uint8_t ns3::Ipv6Option::Process	(	Ptr< Packet >	packet,
		uint8_t	offset,
		Ipv6Header const &	ipv6Header,
		bool &	isDropped
	)			`[pure virtual]`

Process method.

Called from Ipv6L3Protocol::Receive.

Parameters:

	packet	the packet
	offset	the offset of the extension to process
	ipv6Header	the IPv6 header of packet received
	isDropped	if the packet must be dropped

Returns:: the processed size

Implemented in ns3::Ipv6OptionPad1, ns3::Ipv6OptionPadn, ns3::Ipv6OptionJumbogram, and ns3::Ipv6OptionRouterAlert.

void ns3::Ipv6Option::SetNode ( Ptr< Node > node )

Set the node.

Parameters:

node

the node to set

The documentation for this class was generated from the following files:

src/internet-stack/ipv6-option.h
doc/introspected-doxygen.h
