IPv6 Option Demux. More...

#include <ipv6-option-demux.h>

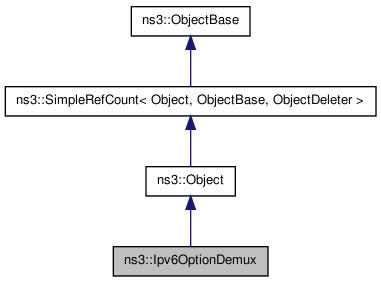

Inheritance diagram for ns3::Ipv6OptionDemux:

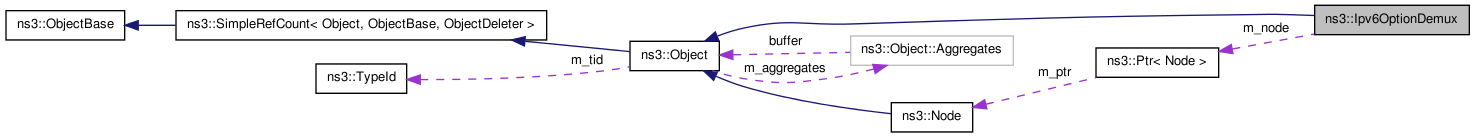

Collaboration diagram for ns3::Ipv6OptionDemux:

Public Member Functions
	Ipv6OptionDemux ()
	Constructor.
virtual	~Ipv6OptionDemux ()
	Destructor.
void	SetNode (Ptr< Node > node)
	Set the node.
void	Insert (Ptr< Ipv6Option > option)
	Insert a new IPv6 Option.
Ptr< Ipv6Option >	GetOption (int optionNumber)
	Get the option corresponding to optionNumber.
void	Remove (Ptr< Ipv6Option > option)
	Remove an option from this demux.
Static Public Member Functions
static TypeId	GetTypeId (void)
	The interface ID.
Protected Member Functions
virtual void	DoDispose ()
	Dispose this object.

Detailed Description

IPv6 Option Demux.

Member Function Documentation

Ptr<Ipv6Option> ns3::Ipv6OptionDemux::GetOption ( int optionNumber )

Get the option corresponding to optionNumber.

Parameters:

optionNumber

the option number of the option to retrieve

Returns:: a matching IPv6 option

static TypeId ns3::Ipv6OptionDemux::GetTypeId ( void ) [static]

The interface ID.

This method returns the TypeId associated to ns3::Ipv6OptionDemux.

Returns:: type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6OptionDemux
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6OptionDemux

Attributes defined for this type:

Options: The set of IPv6 options registered with this demux.
- Set with class: ns3::ObjectVectorValue
- Underlying type: ns3::Ptr< ns3::Ipv6Option >
- Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

void ns3::Ipv6OptionDemux::Insert ( Ptr< Ipv6Option > option )

Insert a new IPv6 Option.

Parameters:

option

the option to insert

void ns3::Ipv6OptionDemux::Remove ( Ptr< Ipv6Option > option )

Remove an option from this demux.

Parameters:

option

pointer on the option to remove

void ns3::Ipv6OptionDemux::SetNode ( Ptr< Node > node )

Set the node.

Parameters:

node

the node to set

The documentation for this class was generated from the following files:

src/internet-stack/ipv6-option-demux.h
doc/introspected-doxygen.h
