ns3::WimaxNetDevice Class Reference

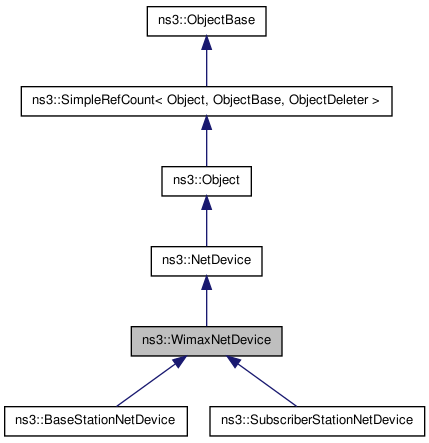

Inheritance diagram for ns3::WimaxNetDevice:
Inheritance graph
[legend]

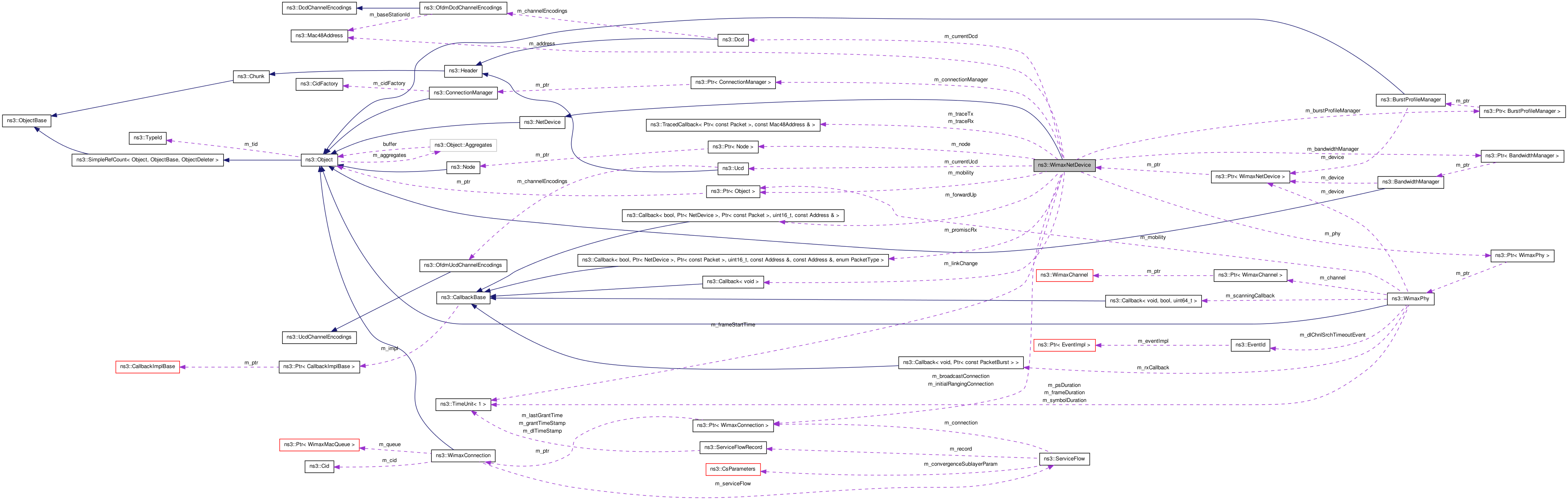

Collaboration diagram for ns3::WimaxNetDevice:
Collaboration graph
[legend]

List of all members.

Public Types

enum  Direction { DIRECTION_DOWNLINK, DIRECTION_UPLINK }
enum  RangingStatus { RANGING_STATUS_EXPIRED, RANGING_STATUS_CONTINUE, RANGING_STATUS_ABORT, RANGING_STATUS_SUCCESS }

Public Member Functions

void SetTtg (uint16_t ttg)
uint16_t GetTtg (void) const
void SetRtg (uint16_t rtg)
uint16_t GetRtg (void) const
void Attach (Ptr< WimaxChannel > channel)
void SetPhy (Ptr< WimaxPhy > phy)
Ptr< WimaxPhy > GetPhy (void) const
void SetChannel (Ptr< WimaxChannel > wimaxChannel)
uint64_t GetChannel (uint8_t index) const
void SetNrFrames (uint32_t nrFrames)
uint32_t GetNrFrames (void) const
void SetMacAddress (Mac48Address address)
Mac48Address GetMacAddress (void) const
void SetState (uint8_t state)
uint8_t GetState (void) const
Ptr< WimaxConnection > GetInitialRangingConnection (void) const
Ptr< WimaxConnection > GetBroadcastConnection (void) const
void SetCurrentDcd (Dcd dcd)
Dcd GetCurrentDcd (void) const
void SetCurrentUcd (Ucd ucd)
Ucd GetCurrentUcd (void) const
Ptr< ConnectionManager > GetConnectionManager (void) const
virtual void SetConnectionManager (Ptr< ConnectionManager > connectionManager)
Ptr< BurstProfileManager > GetBurstProfileManager (void) const
void SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)
Ptr< BandwidthManager > GetBandwidthManager (void) const
void SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)
void CreateDefaultConnections (void)
virtual void Start (void)=0
virtual void Stop (void)=0
void SetReceiveCallback (void)
void ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)
virtual bool Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection)=0
void ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)
virtual void SetName (const std::string name)
virtual std::string GetName (void) const
virtual void SetIfIndex (const uint32_t index)
virtual uint32_t GetIfIndex (void) const
virtual Ptr< Channel > GetPhyChannel (void) const
virtual Ptr< Channel > GetChannel (void) const
virtual void SetAddress (Address address)
virtual Address GetAddress (void) const
virtual bool SetMtu (const uint16_t mtu)
virtual uint16_t GetMtu (void) const
virtual bool IsLinkUp (void) const
virtual void SetLinkChangeCallback (Callback< void > callback)
virtual bool IsBroadcast (void) const
virtual Address GetBroadcast (void) const
virtual bool IsMulticast (void) const
virtual Address GetMulticast (void) const
virtual Address MakeMulticastAddress (Ipv4Address multicastGroup) const
virtual bool IsPointToPoint (void) const
 Return true if the net device is on a point-to-point link.
virtual bool Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
virtual void SetNode (Ptr< Node > node)
virtual Ptr< Node > GetNode (void) const
virtual bool NeedsArp (void) const
virtual void SetReceiveCallback (NetDevice::ReceiveCallback cb)
virtual void AddLinkChangeCallback (Callback< void > callback)
virtual bool SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual void SetPromiscReceiveCallback (PromiscReceiveCallback cb)
NetDevice::PromiscReceiveCallback GetPromiscReceiveCallback (void)
virtual bool SupportsSendFrom (void) const
virtual void DoDispose (void)
virtual Address GetMulticast (Ipv6Address addr) const
 Get the MAC multicast address corresponding to the IPv6 address provided.
virtual Address GetMulticast (Ipv4Address multicastGroup) const
 Make and return a MAC multicast address using the provided multicast group.
virtual bool IsBridge (void) const
 Return true if the net device is acting as a bridge.
bool IsPromisc (void)
void NotifyPromiscTrace (Ptr< Packet > p)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::WimaxNetDevice.

Public Attributes

TracedCallback< Ptr< const
Packet >, const Mac48Address & > 		m_traceRx
TracedCallback< Ptr< const
Packet >, const Mac48Address & > 		m_traceTx

Static Public Attributes

static uint8_t m_direction
static Time m_frameStartTime

Member Function Documentation

virtual void ns3::WimaxNetDevice::AddLinkChangeCallback ( Callback< void >  callback  )  [virtual]
Parameters:
callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

virtual void ns3::WimaxNetDevice::DoDispose ( void   )  [virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

virtual Address ns3::WimaxNetDevice::GetAddress ( void   )  const [virtual]
Returns:
the current Address of this interface.

Implements ns3::NetDevice.

Ptr<BandwidthManager> ns3::WimaxNetDevice::GetBandwidthManager ( void   )  const
Returns:
the bandwidth manager installed on the device
virtual Address ns3::WimaxNetDevice::GetBroadcast ( void   )  const [virtual]
Returns:
the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Ptr<WimaxConnection> ns3::WimaxNetDevice::GetBroadcastConnection ( void   )  const
Returns:
the broadcast connection
Ptr<BurstProfileManager> ns3::WimaxNetDevice::GetBurstProfileManager ( void   )  const
Returns:
the burst profile manager currently installed in the device
virtual Ptr<Channel> ns3::WimaxNetDevice::GetChannel ( void   )  const [virtual]
Returns:
the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers _must_ check for zero and be ready to handle it.

Implements ns3::NetDevice.

Ptr<ConnectionManager> ns3::WimaxNetDevice::GetConnectionManager ( void   )  const
Returns:
the connection manager of the device
virtual uint32_t ns3::WimaxNetDevice::GetIfIndex ( void   )  const [virtual]
Returns:
index ifIndex of the device

Implements ns3::NetDevice.

Ptr<WimaxConnection> ns3::WimaxNetDevice::GetInitialRangingConnection ( void   )  const
Returns:
the initial ranging connection
Mac48Address ns3::WimaxNetDevice::GetMacAddress ( void   )  const
Returns:
the mac address of the net device
virtual uint16_t ns3::WimaxNetDevice::GetMtu ( void   )  const [virtual]
Returns:
the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

virtual Address ns3::WimaxNetDevice::GetMulticast ( Ipv6Address  addr  )  const [virtual]

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters:
addr IPv6 address
Returns:
the MAC multicast address
Warning:
Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

virtual Address ns3::WimaxNetDevice::GetMulticast ( Ipv4Address  multicastGroup  )  const [virtual]

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

A default implementation of GetMulticast is provided, but this method simply NS_ASSERTS. In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters:
multicastGroup The IP address for the multicast group destination of the packet.
Returns:
The MAC multicast Address used to send packets to the provided multicast group.
Warning:
Calling this method is invalid if IsMulticast returns not true.
See also:
Ipv4Address
Address
NetDevice::IsMulticast

Implements ns3::NetDevice.

virtual Ptr<Node> ns3::WimaxNetDevice::GetNode ( void   )  const [virtual]
Returns:
the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Ptr<WimaxPhy> ns3::WimaxNetDevice::GetPhy ( void   )  const
Returns:
a pointer to the physical layer.
uint16_t ns3::WimaxNetDevice::GetRtg ( void   )  const
Returns:
receive/transmit transition gap
uint16_t ns3::WimaxNetDevice::GetTtg ( void   )  const
Returns:
transmit/receive transition gap
static TypeId ns3::WimaxNetDevice::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::WimaxNetDevice.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice

Attributes defined for this type:

TraceSources defined for this type:

  • Rx: Receive trace
  • Tx: Transmit trace

Reimplemented from ns3::NetDevice.

Reimplemented in ns3::BaseStationNetDevice, and ns3::SubscriberStationNetDevice.

virtual bool ns3::WimaxNetDevice::IsBridge ( void   )  const [virtual]

Return true if the net device is acting as a bridge.

Returns:
value of m_isBridge flag

Implements ns3::NetDevice.

virtual bool ns3::WimaxNetDevice::IsBroadcast ( void   )  const [virtual]
Returns:
true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

virtual bool ns3::WimaxNetDevice::IsLinkUp ( void   )  const [virtual]
Returns:
true if link is up; false otherwise

Implements ns3::NetDevice.

virtual bool ns3::WimaxNetDevice::IsMulticast ( void   )  const [virtual]
Returns:
value of m_isMulticast flag

Implements ns3::NetDevice.

virtual bool ns3::WimaxNetDevice::IsPointToPoint ( void   )  const [virtual]

Return true if the net device is on a point-to-point link.

Returns:
value of m_isPointToPoint flag

Implements ns3::NetDevice.

virtual bool ns3::WimaxNetDevice::NeedsArp ( void   )  const [virtual]
Returns:
true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

virtual bool ns3::WimaxNetDevice::Send ( Ptr< Packet >  packet,
const Address &  dest,
uint16_t  protocolNumber
) [virtual]
Parameters:
packet packet sent from above down to Network Device
dest mac address of the destination (already resolved)
protocolNumber identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns:
whether the Send operation succeeded

Implements ns3::NetDevice.

virtual bool ns3::WimaxNetDevice::SendFrom ( Ptr< Packet >  packet,
const Address &  source,
const Address &  dest,
uint16_t  protocolNumber
) [virtual]
Parameters:
packet packet sent from above down to Network Device
source source mac address (so called "MAC spoofing")
dest mac address of the destination (already resolved)
protocolNumber identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns:
whether the Send operation succeeded

Implements ns3::NetDevice.

virtual void ns3::WimaxNetDevice::SetAddress ( Address  address  )  [virtual]

Set the address of this interface

Parameters:
address address to set

Implements ns3::NetDevice.

void ns3::WimaxNetDevice::SetBandwidthManager ( Ptr< BandwidthManager >  bandwidthManager  )
Parameters:
bandwidthManager the bandwidth manager to be installed on the device
void ns3::WimaxNetDevice::SetBurstProfileManager ( Ptr< BurstProfileManager >  burstProfileManager  )
Parameters:
burstProfileManager the burst profile manager to be installed on the device
void ns3::WimaxNetDevice::SetChannel ( Ptr< WimaxChannel >  wimaxChannel  )
Parameters:
wimaxChannel the channel to be used
virtual void ns3::WimaxNetDevice::SetConnectionManager ( Ptr< ConnectionManager >  connectionManager  )  [virtual]
Parameters:
connectionManager the commection manager to be installed in the device
virtual void ns3::WimaxNetDevice::SetIfIndex ( const uint32_t  index  )  [virtual]
Parameters:
index ifIndex of the device

Implements ns3::NetDevice.

void ns3::WimaxNetDevice::SetMacAddress ( Mac48Address  address  )
Parameters:
address the mac address of the net device
virtual bool ns3::WimaxNetDevice::SetMtu ( const uint16_t  mtu  )  [virtual]
Parameters:
mtu MTU value, in bytes, to set for the device
Returns:
whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

virtual void ns3::WimaxNetDevice::SetNode ( Ptr< Node >  node  )  [virtual]
Parameters:
node the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

void ns3::WimaxNetDevice::SetPhy ( Ptr< WimaxPhy >  phy  )
Parameters:
phy the phy layer to use.
virtual void ns3::WimaxNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback  cb  )  [virtual]
Parameters:
cb callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means _all_ packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

virtual void ns3::WimaxNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback  cb  )  [virtual]
Parameters:
cb callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Implements ns3::NetDevice.

void ns3::WimaxNetDevice::SetRtg ( uint16_t  rtg  )
Parameters:
rtg receive/transmit transition gap
void ns3::WimaxNetDevice::SetTtg ( uint16_t  ttg  )
Parameters:
ttg transmit/receive transition gap
virtual void ns3::WimaxNetDevice::Start ( void   )  [pure virtual]

This method calls the virtual DoStart method on all the objects aggregated to this object. DoStart will be called only once over the lifetime of an object, just like DoDispose is called only once.

See also:
DoStart

Reimplemented from ns3::Object.

Implemented in ns3::BaseStationNetDevice, and ns3::SubscriberStationNetDevice.

virtual bool ns3::WimaxNetDevice::SupportsSendFrom ( void   )  const [virtual]
Returns:
true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

The documentation for this class was generated from the following files:
Generated on Fri Feb 18 2011 16:42:14 for NS-3 by  doxygen 1.7.1
