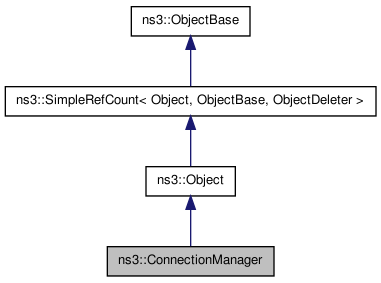

Inheritance diagram for ns3::ConnectionManager:

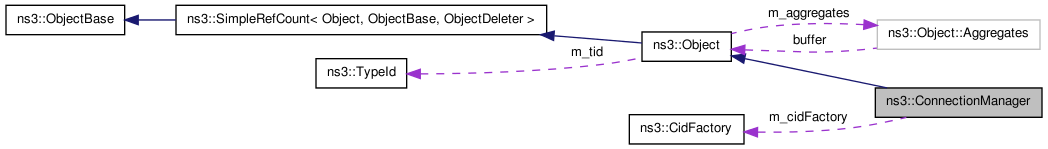

Collaboration diagram for ns3::ConnectionManager:

Public Member Functions
void	DoDispose (void)
void	SetCidFactory (CidFactory *cidFactory)
void	AllocateManagementConnections (SSRecord ssRecord, RngRsp rngrsp)
	allocates the management connection for an ss record. This method is only used by BS
Ptr< WimaxConnection >	CreateConnection (Cid::Type type)
	create a connection of type type
void	AddConnection (Ptr< WimaxConnection > connection, Cid::Type type)
	add a connection to the list of managed connections
Ptr< WimaxConnection >	GetConnection (Cid cid)
std::vector< Ptr < WimaxConnection > >	GetConnections (Cid::Type type) const
uint32_t	GetNPackets (Cid::Type type, ServiceFlow::SchedulingType schedulingType) const
bool	HasPackets (void) const

Member Function Documentation

void ns3::ConnectionManager::AddConnection	(	Ptr< WimaxConnection >	connection,
		Cid::Type	type
	)

add a connection to the list of managed connections

Parameters:

	connection	the connection to add
	type	the type of connection to add

void ns3::ConnectionManager::AllocateManagementConnections	(	SSRecord *	ssRecord,
		RngRsp *	rngrsp
	)

allocates the management connection for an ss record. This method is only used by BS

Parameters:

	ssRecord	the ss record to wich the management connection will be allocated
	rngrsp	the ranging response message

Ptr<WimaxConnection> ns3::ConnectionManager::CreateConnection ( Cid::Type type )

create a connection of type type

Parameters:

type

type of the connection to create

void ns3::ConnectionManager::DoDispose ( void ) [virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Ptr<WimaxConnection> ns3::ConnectionManager::GetConnection ( Cid cid )

Returns:: the connection which has as identifier cid

std::vector<Ptr<WimaxConnection> > ns3::ConnectionManager::GetConnections ( Cid::Type type ) const

Returns:: a listy of all connection which have as type type

bool ns3::ConnectionManager::HasPackets ( void ) const

Returns:: true if one of the managed connection has at least one packet to send, false otherwise

The documentation for this class was generated from the following file:

src/devices/wimax/connection-manager.h
