ns3::FriisPropagationLossModel Class Reference

a Friis propagation loss model More...

#include <propagation-loss-model.h>

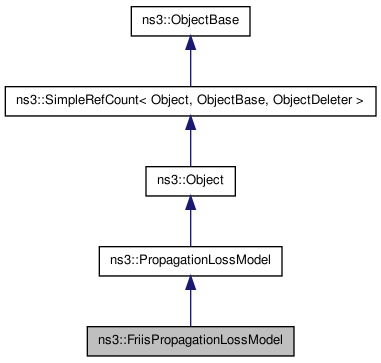

Inheritance diagram for ns3::FriisPropagationLossModel:
Inheritance graph
[legend]

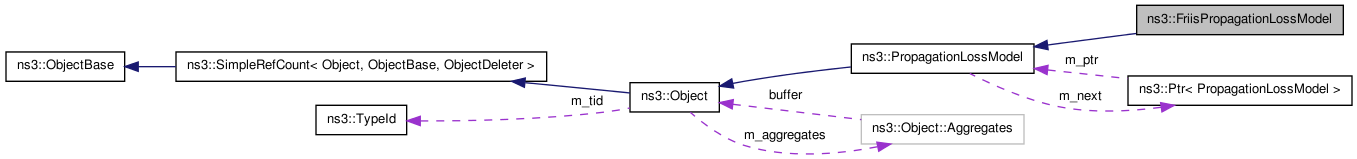

Collaboration diagram for ns3::FriisPropagationLossModel:
Collaboration graph
[legend]

List of all members.

Public Member Functions

void SetLambda (double frequency, double speed)
void SetLambda (double lambda)
void SetSystemLoss (double systemLoss)
void SetMinDistance (double minDistance)
double GetMinDistance (void) const
double GetLambda (void) const
double GetSystemLoss (void) const

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::FriisPropagationLossModel.

Detailed Description

a Friis propagation loss model

The Friis propagation loss model was first described in "A Note on a Simple Transmission Formula", by "Harald T. Friis".

The original equation was described as: $ \frac{P_r}{P_t} = \frac{A_r A_t}{d^2\lambda^2} $ with the following equation for the case of an isotropic antenna with no heat loss: $ A_{isotr.} = \frac{\lambda^2}{4\pi} $

The final equation becomes: $ \frac{P_r}{P_t} = \frac{\lambda^2}{(4 \pi d)^2} $

Modern extensions to this original equation are: $ P_r = \frac{P_t G_t G_r \lambda^2}{(4 \pi d)^2 L}$

With:

This model is invalid for small distance values. The current implementation returns the txpower as the rxpower for any distance smaller than MinDistance.

Member Function Documentation

double ns3::FriisPropagationLossModel::GetLambda ( void   )  const
Returns:
the current wavelength (m)
double ns3::FriisPropagationLossModel::GetMinDistance ( void   )  const
Returns:
the minimum distance.
double ns3::FriisPropagationLossModel::GetSystemLoss ( void   )  const
Returns:
the current system loss (dimension-less)
static TypeId ns3::FriisPropagationLossModel::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::FriisPropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FriisPropagationLossModel

Attributes defined for this type:

  • Lambda: The wavelength (default is 5.15 GHz at 300 000 km/s).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.0582524
    • Flags: construct write read
  • SystemLoss: The system loss
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write read
  • MinDistance: The distance under which the propagation model refuses to give results (m)
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.5
    • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::PropagationLossModel.

void ns3::FriisPropagationLossModel::SetLambda ( double  frequency,
double  speed
)
Parameters:
frequency (Hz)
speed (m/s)

Set the main wavelength used in the Friis model calculation.

void ns3::FriisPropagationLossModel::SetLambda ( double  lambda  )
Parameters:
lambda (m) the wavelength

Set the main wavelength used in the Friis model calculation.

void ns3::FriisPropagationLossModel::SetMinDistance ( double  minDistance  )
Parameters:
minDistance the minimum distance

Below this distance, the txpower is returned unmodified as the rxpower.

void ns3::FriisPropagationLossModel::SetSystemLoss ( double  systemLoss  )
Parameters:
systemLoss (dimension-less)

Set the system loss used by the Friis propagation model.

The documentation for this class was generated from the following files:
Generated on Fri Feb 18 2011 15:54:50 for NS-3 by  doxygen 1.7.1
