Gauss-Markov mobility model. More...
#include <gauss-markov-mobility-model.h>

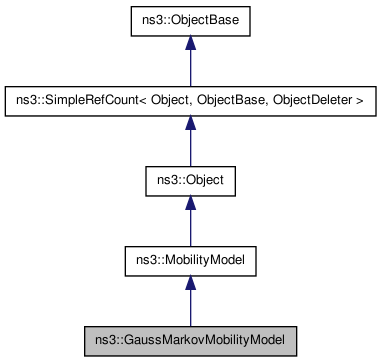

Inheritance diagram for ns3::GaussMarkovMobilityModel:

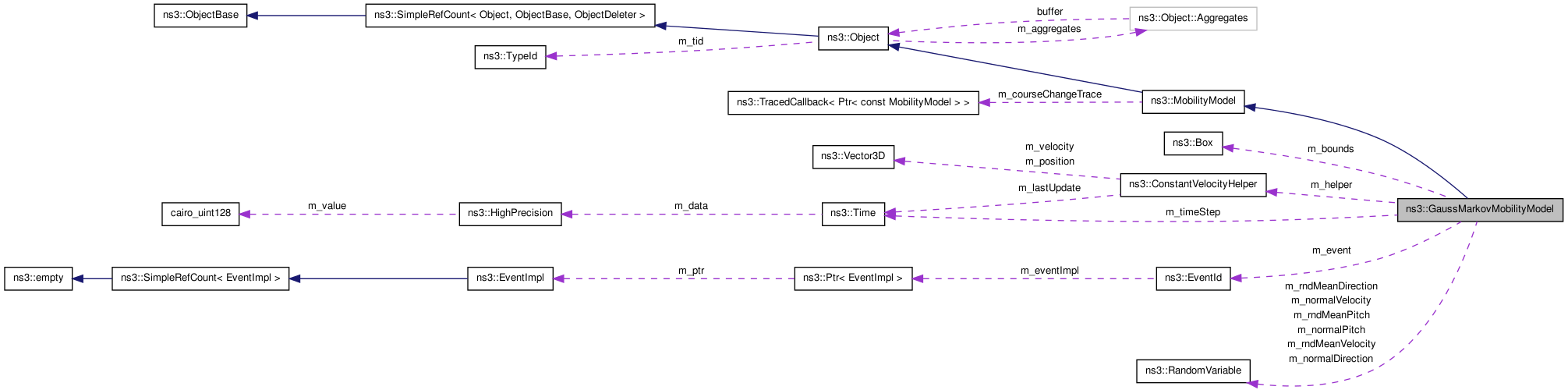

Collaboration diagram for ns3::GaussMarkovMobilityModel:
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::GaussMarkovMobilityModel. | |
Detailed Description
Gauss-Markov mobility model.
This is a 3D version of the Gauss-Markov mobility model described in [1]. Unlike the other mobility models in ns-3, which are memoryless, the Gauss Markov model has both memory and variability. The tunable alpha parameter determines the how much memory and randomness you want to model. Each object starts with a specific velocity, direction (radians), and pitch angle (radians) equivalent to the mean velocity, direction, and pitch. At each timestep, a new velocity, direction, and pitch angle are generated based upon the previous value, the mean value, and a gaussian random variable. This version is suited for simple airplane flight, where direction, velocity, and pitch are the key variables. The motion field is limited by a 3D bounding box (called "box") which is a 3D version of the "rectangle" field that is used in 2-dimensional ns-3 mobility models.
Here is an example of how to implement the model and set the initial node positions:
MobilityHelper mobility;
mobility.SetMobilityModel ("ns3::GaussMarkovMobilityModel",
"Bounds", BoxValue (Box (0, 150000, 0, 150000, 0, 10000)),
"TimeStep", TimeValue (Seconds (0.5)),
"Alpha", DoubleValue (0.85),
"MeanVelocity", RandomVariableValue (UniformVariable (800, 1200)),
"MeanDirection", RandomVariableValue (UniformVariable (0, 6.283185307)),
"MeanPitch", RandomVariableValue (UniformVariable (0.05, 0.05)),
"NormalVelocity", RandomVariableValue (NormalVariable (0.0, 0.0, 0.0)),
"NormalDirection", RandomVariableValue (NormalVariable (0.0, 0.2, 0.4)),
"NormalPitch", RandomVariableValue (NormalVariable (0.0, 0.02, 0.04)));
mobility.SetPositionAllocator ("ns3::RandomBoxPositionAllocator",
"X", RandomVariableValue (UniformVariable (0, 150000)),
"Y", RandomVariableValue (UniformVariable (0, 150000)),
"Z", RandomVariableValue (UniformVariable (0, 10000)));
mobility.Install (wifiStaNodes);
[1] Tracy Camp, Jeff Boleng, Vanessa Davies, "A Survey of Mobility Models for Ad Hoc Network Research", Wireless Communications and Mobile Computing, Wiley, vol.2 iss.5, September 2002, pp.483-502
Member Function Documentation
| static TypeId ns3::GaussMarkovMobilityModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::GaussMarkovMobilityModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::GaussMarkovMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel
Attributes defined for this type:
- Bounds: Bounds of the area to cruise.
- TimeStep: Change current direction and speed after moving for this time.
-
Alpha: A constant representing the tunable parameter in the Gauss-Markov model.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
-
MeanVelocity: A random variable used to assign the average velocity.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:0:1
- Flags: construct write read
-
MeanDirection: A random variable used to assign the average direction.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:0:6.28319
- Flags: construct write read
-
MeanPitch: A random variable used to assign the average pitch.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Constant:0
- Flags: construct write read
-
NormalVelocity: A gaussian random variable used to calculate the next velocity value.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Normal:0:1:10
- Flags: construct write read
-
NormalDirection: A gaussian random variable used to calculate the next direction value.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Normal:0:1:10
- Flags: construct write read
-
NormalPitch: A gaussian random variable used to calculate the next pitch value.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Normal:0:1:10
- Flags: construct write read
Attributes defined in parent class ns3::MobilityModel:
-
Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
-
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read
No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:
- CourseChange: The value of the position and/or velocity vector changed
Reimplemented from ns3::MobilityModel.
The documentation for this class was generated from the following files:
- src/mobility/gauss-markov-mobility-model.h
- doc/introspected-doxygen.h
