Abstract class to store a plot line to be used by ns3::Gnuplot. More...
#include <gnuplot.h>

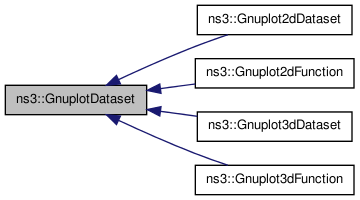

Inheritance diagram for ns3::GnuplotDataset:
Public Member Functions | |
| GnuplotDataset (const GnuplotDataset &original) | |
| ~GnuplotDataset () | |
| GnuplotDataset & | operator= (const GnuplotDataset &original) |
| void | SetTitle (const std::string &title) |
| Change line title. | |
| void | SetExtra (const std::string &extra) |
| Add extra formatting parameters to this dataset. | |
Static Public Member Functions | |
| static void | SetDefaultExtra (const std::string &extra) |
| Change extra formatting style parameters for newly created objects. | |
Protected Member Functions | |
| GnuplotDataset (struct Data *data) | |
Protected Attributes | |
| struct Data * | m_data |
Static Protected Attributes | |
| static std::string | m_defaultExtra |
| Extra gnuplot parameters set on every newly created dataset. | |
Friends | |
| class | Gnuplot |
Detailed Description
Abstract class to store a plot line to be used by ns3::Gnuplot.
This class contains a reference counted data object in m_data. The data object contains different structs derived from struct Data by subclasses.
Constructor & Destructor Documentation
| ns3::GnuplotDataset::GnuplotDataset | ( | const GnuplotDataset & | original | ) |
Reference-counting copy constructor.
| ns3::GnuplotDataset::~GnuplotDataset | ( | ) |
Reference-counting destructor.
| ns3::GnuplotDataset::GnuplotDataset | ( | struct Data * | data | ) | [protected] |
Called by constructors of derived classes.
- Parameters:
-
data the reference counted data object representing this dataset.
Member Function Documentation
| GnuplotDataset& ns3::GnuplotDataset::operator= | ( | const GnuplotDataset & | original | ) |
Reference-counting assignment operator.
| static void ns3::GnuplotDataset::SetDefaultExtra | ( | const std::string & | extra | ) | [static] |
Change extra formatting style parameters for newly created objects.
- Parameters:
-
extra extra formatting
| void ns3::GnuplotDataset::SetExtra | ( | const std::string & | extra | ) |
Add extra formatting parameters to this dataset.
- Parameters:
-
extra extra formatting
| void ns3::GnuplotDataset::SetTitle | ( | const std::string & | title | ) |
Change line title.
- Parameters:
-
title the new title string to use for this dataset.
Friends And Related Function Documentation
friend class Gnuplot [friend] |
Friend because it accesses m_data and it's virtual functions directly in GenerateOutput().
Member Data Documentation
struct Data* ns3::GnuplotDataset::m_data [protected] |
Reference counted data object.
The documentation for this class was generated from the following file:
- src/contrib/gnuplot.h
