ns3::Icmpv4L4Protocol Class Reference

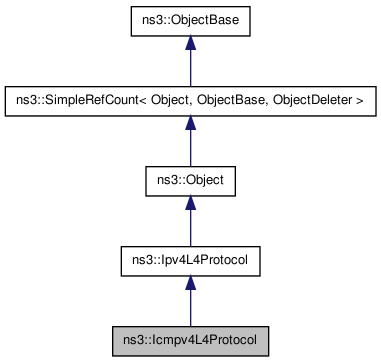

Inheritance diagram for ns3::Icmpv4L4Protocol:
Inheritance graph
[legend]

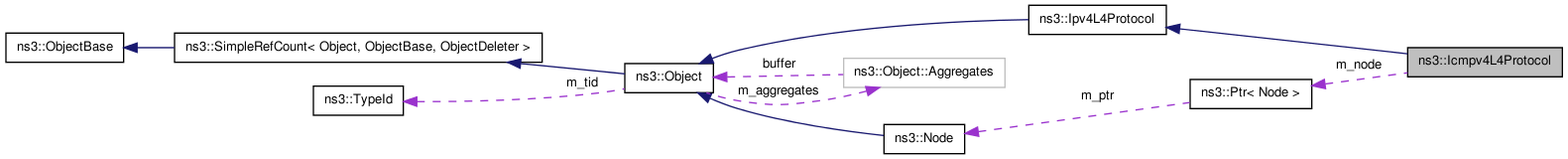

Collaboration diagram for ns3::Icmpv4L4Protocol:
Collaboration graph
[legend]

List of all members.

Public Member Functions

void SetNode (Ptr< Node > node)
virtual int GetProtocolNumber (void) const
virtual enum
Ipv4L4Protocol::RxStatus 		Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > incomingInterface)
void SendDestUnreachFragNeeded (Ipv4Header header, Ptr< const Packet > orgData, uint16_t nextHopMtu)
void SendTimeExceededTtl (Ipv4Header header, Ptr< const Packet > orgData)
void SendDestUnreachPort (Ipv4Header header, Ptr< const Packet > orgData)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::Icmpv4L4Protocol.
static uint16_t GetStaticProtocolNumber (void)

Static Public Attributes

static const uint8_t PROT_NUMBER

Protected Member Functions

virtual void NotifyNewAggregate ()

Member Function Documentation

virtual int ns3::Icmpv4L4Protocol::GetProtocolNumber ( void   )  const [virtual]
Returns:
the protocol number of this protocol.

Implements ns3::Ipv4L4Protocol.

static TypeId ns3::Icmpv4L4Protocol::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::Icmpv4L4Protocol.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Icmpv4L4Protocol
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol

No Attributes defined for this type.
Attributes defined in parent class ns3::Ipv4L4Protocol:

  • ProtocolNumber: The Ipv4 protocol number.

No TraceSources defined for this type.

Reimplemented from ns3::Ipv4L4Protocol.

virtual void ns3::Icmpv4L4Protocol::NotifyNewAggregate (  )  [protected, virtual]

This method is invoked whenever two sets of objects are aggregated together. It is invoked exactly once for each object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate method. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

virtual enum Ipv4L4Protocol::RxStatus ns3::Icmpv4L4Protocol::Receive ( Ptr< Packet >  p,
Ipv4Header const &  header,
Ptr< Ipv4Interface >  incomingInterface
) [virtual]
Parameters:
p packet to forward up
header IPv4 Header information
incomingInterface the Ipv4Interface on which the packet arrived

Called from lower-level layers to send the packet up in the stack.

Implements ns3::Ipv4L4Protocol.
