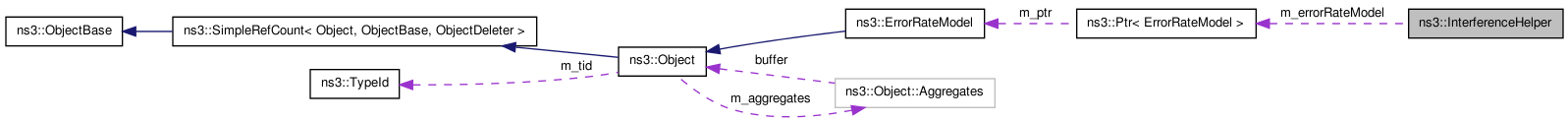

Collaboration diagram for ns3::InterferenceHelper:
Classes | |
| class | Event |
| class | NiChange |
| struct | SnrPer |
Public Member Functions | |
| void | SetNoiseFigure (double value) |
| void | SetErrorRateModel (Ptr< ErrorRateModel > rate) |
| double | GetNoiseFigure (void) const |
| Ptr< ErrorRateModel > | GetErrorRateModel (void) const |
| Time | GetEnergyDuration (double energyW) |
| Ptr< InterferenceHelper::Event > | Add (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble, Time duration, double rxPower) |
| struct InterferenceHelper::SnrPer | CalculateSnrPer (Ptr< InterferenceHelper::Event > event) |
| void | NotifyRxStart () |
| void | NotifyRxEnd () |
| void | EraseEvents (void) |
Static Public Member Functions | |
| static WifiMode | GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble) |
| static uint32_t | GetPlcpHeaderDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble) |
| static uint32_t | GetPlcpPreambleDurationMicroSeconds (WifiMode mode, WifiPreamble preamble) |
| static uint32_t | GetPayloadDurationMicroSeconds (uint32_t size, WifiMode payloadMode) |
| static Time | CalculateTxDuration (uint32_t size, WifiMode payloadMode, WifiPreamble preamble) |
Member Function Documentation
| Time ns3::InterferenceHelper::GetEnergyDuration | ( | double | energyW | ) |
- Parameters:
-
energyW the minimum energy (W) requested
- Returns:
- the expected amount of time the observed energy on the medium will be higher than the requested threshold.
The documentation for this class was generated from the following file:
- src/devices/wifi/interference-helper.h
