Ipv4 route cache entry (similar to Linux struct rtable). More...
#include <ipv4-route.h>
Inheritance diagram for ns3::Ipv4Route:

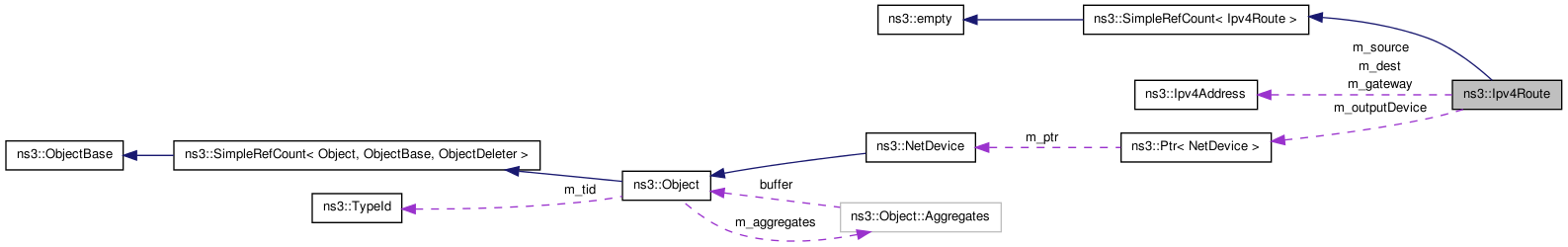

Collaboration diagram for ns3::Ipv4Route:
Public Member Functions | |
| void | SetDestination (Ipv4Address dest) |
| Ipv4Address | GetDestination (void) const |
| void | SetSource (Ipv4Address src) |
| Ipv4Address | GetSource (void) const |
| void | SetGateway (Ipv4Address gw) |
| Ipv4Address | GetGateway (void) const |
| void | SetOutputDevice (Ptr< NetDevice > outputDevice) |
| Ptr< NetDevice > | GetOutputDevice (void) const |
Detailed Description
Ipv4 route cache entry (similar to Linux struct rtable).
This is a reference counted object. In the future, we will add other entries from struct dst_entry, struct rtable, and struct dst_ops as needed.
Member Function Documentation
| Ipv4Address ns3::Ipv4Route::GetDestination | ( | void | ) | const |
- Returns:
- Destination Ipv4Address of the route
| Ipv4Address ns3::Ipv4Route::GetGateway | ( | void | ) | const |
- Returns:
- Ipv4Address of the gateway (next hop)
- Returns:
- pointer to NetDevice for outgoing packets
| Ipv4Address ns3::Ipv4Route::GetSource | ( | void | ) | const |
- Returns:
- Source Ipv4Address of the route
| void ns3::Ipv4Route::SetDestination | ( | Ipv4Address | dest | ) |
- Parameters:
-
dest Destination Ipv4Address
| void ns3::Ipv4Route::SetGateway | ( | Ipv4Address | gw | ) |
- Parameters:
-
gw Gateway (next hop) Ipv4Address
Equivalent in Linux to dst_entry.dev
- Parameters:
-
outputDevice pointer to NetDevice for outgoing packets
| void ns3::Ipv4Route::SetSource | ( | Ipv4Address | src | ) |
- Parameters:
-
src Source Ipv4Address
The documentation for this class was generated from the following file:
- src/node/ipv4-route.h
