ns3::Ipv6MulticastRoute Class Reference [Ipv6RoutingProtocol]

IPv6 multicast route entry. More...

#include <ipv6-route.h>

Inheritance diagram for ns3::Ipv6MulticastRoute:

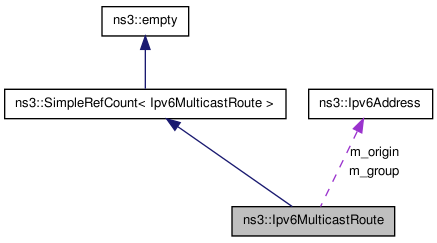

Collaboration diagram for ns3::Ipv6MulticastRoute:

List of all members.

Public Member Functions
	Ipv6MulticastRoute ()
	Constructor.
virtual	~Ipv6MulticastRoute ()
	Destructor.
void	SetGroup (const Ipv6Address group)
	Set IPv6 group.
Ipv6Address	GetGroup (void) const
	Get IPv6 group.
void	SetOrigin (const Ipv6Address origin)
	Set origin address.
Ipv6Address	GetOrigin (void) const
	Get source address.
void	SetParent (uint32_t iif)
	Set parent for this route.
uint32_t	GetParent (void) const
	Get parent for this route.
void	SetOutputTtl (uint32_t oif, uint32_t ttl)
	set output TTL for this route.
uint32_t	GetOutputTtl (uint32_t oif) const
	Get output TTL for this route.
Static Public Attributes
static const uint32_t	MAX_INTERFACES = 16
	Maximum number of multicast interfaces on a router.
static const uint32_t	MAX_TTL = 255
	Maximum Time-To-Live (TTL).

---

Detailed Description

IPv6 multicast route entry.

---

Member Function Documentation

Ipv6Address ns3::Ipv6MulticastRoute::GetGroup

(

void

)

const

Get IPv6 group.

Returns:

Ipv6Address of the multicast group

Ipv6Address ns3::Ipv6MulticastRoute::GetOrigin

(

void

)

const

Get source address.

Returns:

Ipv6Address of the origin address

uint32_t ns3::Ipv6MulticastRoute::GetOutputTtl

(

uint32_t

oif

)

const

Get output TTL for this route.

Parameters:

oif

outgoing interface

Returns:

TTL for this route

uint32_t ns3::Ipv6MulticastRoute::GetParent

(

void

)

const

Get parent for this route.

Returns:

Parent (input interface) for this route

void ns3::Ipv6MulticastRoute::SetGroup

(

const Ipv6Address

group

)

Set IPv6 group.

Parameters:

group

Ipv6Address of the multicast group

void ns3::Ipv6MulticastRoute::SetOrigin

(

const Ipv6Address

origin

)

Set origin address.

Parameters:

origin

Ipv6Address of the origin address

void ns3::Ipv6MulticastRoute::SetOutputTtl	(	uint32_t	oif,
		uint32_t	ttl
	)

set output TTL for this route.

Parameters:

	oif	Outgoing interface index
	ttl	time-to-live for this route

void ns3::Ipv6MulticastRoute::SetParent

(

uint32_t

iif

)

Set parent for this route.

Parameters:

iif

Parent (input interface) for this route

---

The documentation for this class was generated from the following file:

• src/node/ipv6-route.h
