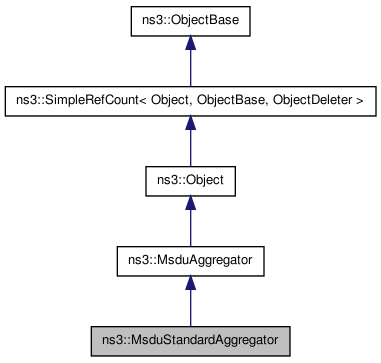

Inheritance diagram for ns3::MsduStandardAggregator:

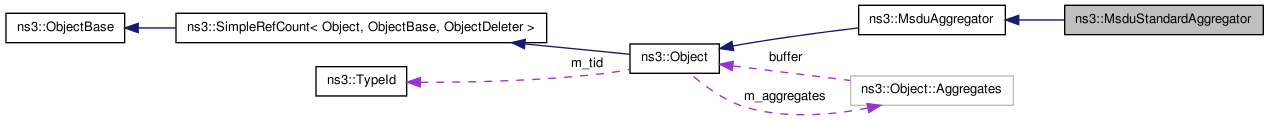

Collaboration diagram for ns3::MsduStandardAggregator:
Public Member Functions | |
| virtual bool | Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket, Mac48Address src, Mac48Address dest) |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::MsduStandardAggregator. | |
Member Function Documentation
| virtual bool ns3::MsduStandardAggregator::Aggregate | ( | Ptr< const Packet > | packet, | |
| Ptr< Packet > | aggregatedPacket, | |||
| Mac48Address | src, | |||
| Mac48Address | dest | |||
| ) | [virtual] |
- Parameters:
-
packet Packet we have to insert into aggregatedPacket. aggregatedPacket Packet that will contain packet, if aggregation is possible, src Source address of packet. dest Destination address of packet.
This method performs an MSDU aggregation. Returns true if packet can be aggregated to aggregatedPacket, false otherwise.
Implements ns3::MsduAggregator.
| static TypeId ns3::MsduStandardAggregator::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::MsduStandardAggregator.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::MsduStandardAggregator
Attributes defined for this type:
-
MaxAmsduSize: Max length in byte of an A-MSDU
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7935
- Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::MsduAggregator.
The documentation for this class was generated from the following files:
- src/devices/wifi/msdu-standard-aggregator.h
- doc/introspected-doxygen.h
