ns3::NonCommunicatingNetDevice Class Reference

#include <non-communicating-net-device.h>

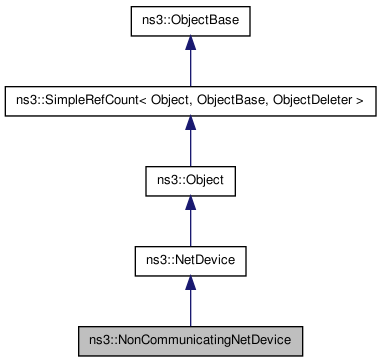

Inheritance diagram for ns3::NonCommunicatingNetDevice:
Inheritance graph
[legend]

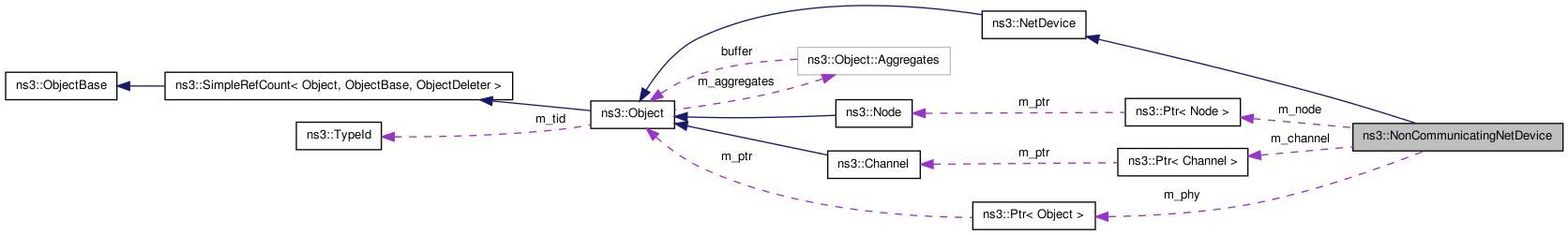

Collaboration diagram for ns3::NonCommunicatingNetDevice:
Collaboration graph
[legend]

List of all members.

Public Member Functions

void SetChannel (Ptr< Channel > c)
void SetPhy (Ptr< Object > phy)
Ptr< ObjectGetPhy () const
virtual void SetIfIndex (const uint32_t index)
virtual uint32_t GetIfIndex (void) const
virtual Ptr< ChannelGetChannel (void) const
virtual bool SetMtu (const uint16_t mtu)
virtual uint16_t GetMtu (void) const
virtual void SetAddress (Address address)
virtual Address GetAddress (void) const
virtual bool IsLinkUp (void) const
virtual void AddLinkChangeCallback (Callback< void > callback)
virtual bool IsBroadcast (void) const
virtual Address GetBroadcast (void) const
virtual bool IsMulticast (void) const
virtual bool IsPointToPoint (void) const
 Return true if the net device is on a point-to-point link.
virtual bool IsBridge (void) const
 Return true if the net device is acting as a bridge.
virtual bool Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
virtual bool SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual Ptr< NodeGetNode (void) const
virtual void SetNode (Ptr< Node > node)
virtual bool NeedsArp (void) const
virtual void SetReceiveCallback (NetDevice::ReceiveCallback cb)
virtual Address GetMulticast (Ipv4Address addr) const
 Make and return a MAC multicast address using the provided multicast group.
virtual Address GetMulticast (Ipv6Address addr) const
 Get the MAC multicast address corresponding to the IPv6 address provided.
virtual void SetPromiscReceiveCallback (PromiscReceiveCallback cb)
virtual bool SupportsSendFrom (void) const

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::NonCommunicatingNetDevice.

Detailed Description

This class implements a device which does not communicate, in the sense that it does not interact with the above protocol stack. The purpose of this NetDevice is to be used for devices such as microwave ovens, waveform generators and spectrum analyzers. Since the ns-3 channel API is strongly based on the presence of NetDevice class instances, it is convenient to provide a NetDevice that can be used with such non-communicating devices.


Member Function Documentation

virtual void ns3::NonCommunicatingNetDevice::AddLinkChangeCallback ( Callback< void >  callback  )  [virtual]
Parameters:
callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

virtual Address ns3::NonCommunicatingNetDevice::GetAddress ( void   )  const [virtual]
Returns:
the current Address of this interface.

Implements ns3::NetDevice.

virtual Address ns3::NonCommunicatingNetDevice::GetBroadcast ( void   )  const [virtual]
Returns:
the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

virtual Ptr<Channel> ns3::NonCommunicatingNetDevice::GetChannel ( void   )  const [virtual]
Returns:
the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers _must_ check for zero and be ready to handle it.

Implements ns3::NetDevice.

virtual uint32_t ns3::NonCommunicatingNetDevice::GetIfIndex ( void   )  const [virtual]
Returns:
index ifIndex of the device

Implements ns3::NetDevice.

virtual uint16_t ns3::NonCommunicatingNetDevice::GetMtu ( void   )  const [virtual]
Returns:
the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

virtual Address ns3::NonCommunicatingNetDevice::GetMulticast ( Ipv4Address  multicastGroup  )  const [virtual]

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

A default implementation of GetMulticast is provided, but this method simply NS_ASSERTS. In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters:
multicastGroup The IP address for the multicast group destination of the packet.
Returns:
The MAC multicast Address used to send packets to the provided multicast group.
Warning:
Calling this method is invalid if IsMulticast returns not true.
See also:
Ipv4Address
Address
NetDevice::IsMulticast

Implements ns3::NetDevice.

virtual Address ns3::NonCommunicatingNetDevice::GetMulticast ( Ipv6Address  addr  )  const [virtual]

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters:
addr IPv6 address
Returns:
the MAC multicast address
Warning:
Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

virtual Ptr<Node> ns3::NonCommunicatingNetDevice::GetNode ( void   )  const [virtual]
Returns:
the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Ptr<Object> ns3::NonCommunicatingNetDevice::GetPhy (  )  const
Returns:
a reference to the PHY object embedded in this NetDevice.
static TypeId ns3::NonCommunicatingNetDevice::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::NonCommunicatingNetDevice.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::NonCommunicatingNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::NonCommunicatingNetDevice

Attributes defined for this type:

No TraceSources defined for this type.

Reimplemented from ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::IsBridge ( void   )  const [virtual]

Return true if the net device is acting as a bridge.

Returns:
value of m_isBridge flag

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::IsBroadcast ( void   )  const [virtual]
Returns:
true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::IsLinkUp ( void   )  const [virtual]
Returns:
true if link is up; false otherwise

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::IsMulticast ( void   )  const [virtual]
Returns:
value of m_isMulticast flag

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::IsPointToPoint ( void   )  const [virtual]

Return true if the net device is on a point-to-point link.

Returns:
value of m_isPointToPoint flag

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::NeedsArp ( void   )  const [virtual]
Returns:
true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::Send ( Ptr< Packet packet,
const Address dest,
uint16_t  protocolNumber
) [virtual]
Parameters:
packet packet sent from above down to Network Device
dest mac address of the destination (already resolved)
protocolNumber identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns:
whether the Send operation succeeded

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::SendFrom ( Ptr< Packet packet,
const Address source,
const Address dest,
uint16_t  protocolNumber
) [virtual]
Parameters:
packet packet sent from above down to Network Device
source source mac address (so called "MAC spoofing")
dest mac address of the destination (already resolved)
protocolNumber identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns:
whether the Send operation succeeded

Implements ns3::NetDevice.

virtual void ns3::NonCommunicatingNetDevice::SetAddress ( Address  address  )  [virtual]

Set the address of this interface

Parameters:
address address to set

Implements ns3::NetDevice.

void ns3::NonCommunicatingNetDevice::SetChannel ( Ptr< Channel c  )

This class doesn't talk directly with the underlying channel (a dedicated PHY class is expected to do it), however the NetDevice specification features a GetChannel() method. This method here is therefore provide to allow NonCommunicatingNetDevice::GetChannel() to have something meaningful to return.

Parameters:
c the underlying channel
virtual void ns3::NonCommunicatingNetDevice::SetIfIndex ( const uint32_t  index  )  [virtual]
Parameters:
index ifIndex of the device

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::SetMtu ( const uint16_t  mtu  )  [virtual]
Parameters:
mtu MTU value, in bytes, to set for the device
Returns:
whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

virtual void ns3::NonCommunicatingNetDevice::SetNode ( Ptr< Node node  )  [virtual]
Parameters:
node the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

void ns3::NonCommunicatingNetDevice::SetPhy ( Ptr< Object phy  )

Set the Phy object which is attached to this device. This object is needed so that we can set/get attributes and connect to trace sources of the PHY from the net device.

Parameters:
phy the Phy object embedded within this device.
virtual void ns3::NonCommunicatingNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback  cb  )  [virtual]
Parameters:
cb callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means _all_ packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

virtual void ns3::NonCommunicatingNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback  cb  )  [virtual]
Parameters:
cb callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Implements ns3::NetDevice.

virtual bool ns3::NonCommunicatingNetDevice::SupportsSendFrom ( void   )  const [virtual]
Returns:
true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.


The documentation for this class was generated from the following files:
