A helper to make it easier to instantiate an ns3::OnOffApplication on a set of nodes. More...

#include <on-off-helper.h>

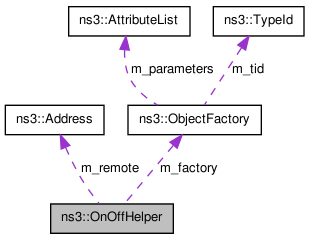

Collaboration diagram for ns3::OnOffHelper:

Public Member Functions
	OnOffHelper (std::string protocol, Address address)
void	SetAttribute (std::string name, const AttributeValue &value)
ApplicationContainer	Install (NodeContainer c) const
ApplicationContainer	Install (Ptr< Node > node) const
ApplicationContainer	Install (std::string nodeName) const

Detailed Description

A helper to make it easier to instantiate an ns3::OnOffApplication on a set of nodes.

Constructor & Destructor Documentation

Create an OnOffHelper to make it easier to work with OnOffApplications

Parameters:

	protocol	the name of the protocol to use to send traffic by the applications. This string identifies the socket factory type used to create sockets for the applications. A typical value would be ns3::UdpSocketFactory.
	address	the address of the remote node to send traffic to.

ApplicationContainer ns3::OnOffHelper::Install ( NodeContainer c ) const

Install an ns3::OnOffApplication on each node of the input container configured with all the attributes set with SetAttribute.

Parameters:

c

NodeContainer of the set of nodes on which an OnOffApplication will be installed.

ApplicationContainer ns3::OnOffHelper::Install ( std::string nodeName ) const

Install an ns3::OnOffApplication on the node configured with all the attributes set with SetAttribute.

Parameters:

nodeName

The node on which an OnOffApplication will be installed.

ApplicationContainer ns3::OnOffHelper::Install ( Ptr< Node > node ) const

Install an ns3::OnOffApplication on the node configured with all the attributes set with SetAttribute.

Parameters:

node

The node on which an OnOffApplication will be installed.

void ns3::OnOffHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Helper function used to set the underlying application attributes.

Parameters:

	name	the name of the application attribute to set
	value	the value of the application attribute to set

The documentation for this class was generated from the following file:
