Static Public Member Functions

ns3::OnoeWifiManager Class Reference

an implementation of rate control algorithm developed by Atsushi Onoe More...

#include <onoe-wifi-manager.h>

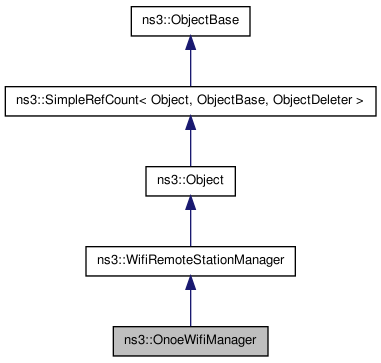

Inheritance diagram for ns3::OnoeWifiManager:
Inheritance graph
[legend]

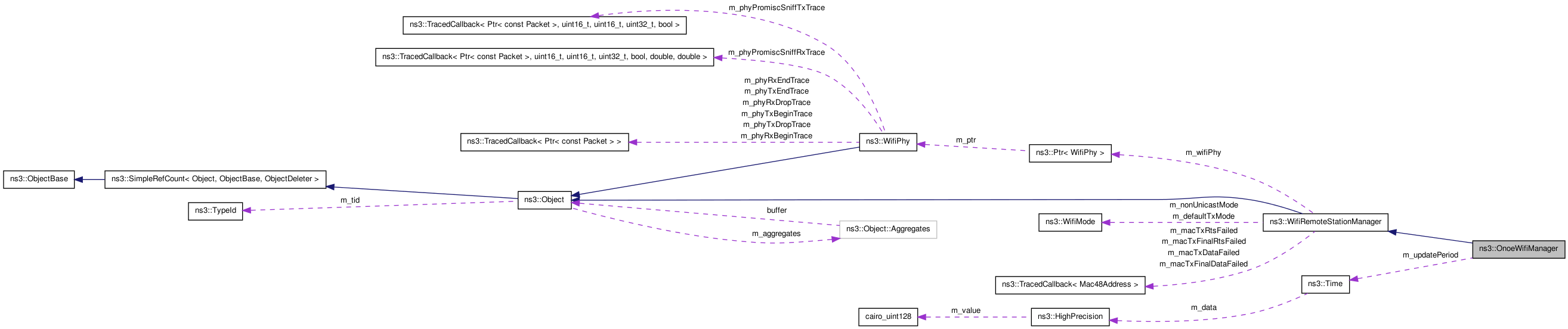

Collaboration diagram for ns3::OnoeWifiManager:
Collaboration graph
[legend]

List of all members.

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::OnoeWifiManager.

Detailed Description

an implementation of rate control algorithm developed by Atsushi Onoe

This algorithm is well known because it has been used as the default rate control algorithm for the madwifi driver. I am not aware of any publication or reference about this algorithm beyond the madwifi source code.

Member Function Documentation

static TypeId ns3::OnoeWifiManager::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::OnoeWifiManager.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::OnoeWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiRemoteStationManager/$ns3::OnoeWifiManager

Attributes defined for this type:

  • UpdatePeriod: The interval between decisions about rate control changes
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 1000000000ns
    • Flags: construct write read
  • RaiseThreshold: Attempt to raise the rate if we hit that threshold
  • AddCreditThreshold: Add credit threshold

Attributes defined in parent class ns3::WifiRemoteStationManager:

  • IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
  • FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::WifiRemoteStationManager:

  • MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
  • MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
  • MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
  • MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Reimplemented from ns3::WifiRemoteStationManager.

The documentation for this class was generated from the following files:
Generated on Fri Feb 18 2011 15:54:52 for NS-3 by  doxygen 1.7.1
