ns3::PacketBurst Class Reference

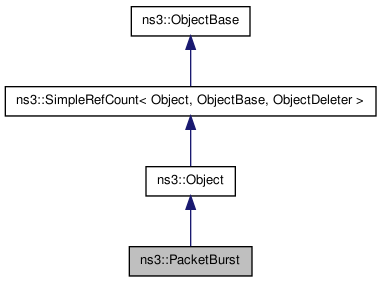

Inheritance diagram for ns3::PacketBurst:

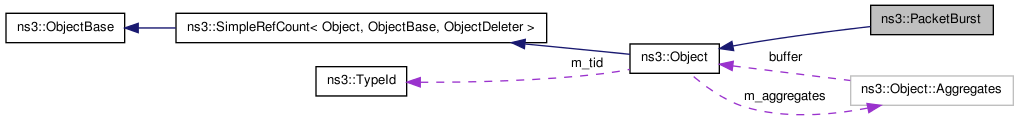

Collaboration diagram for ns3::PacketBurst:

List of all members.

Public Member Functions
Ptr< PacketBurst >	Copy (void) const
void	AddPacket (Ptr< Packet > packet)
	add a packet to the list of packet
std::list< Ptr< Packet > >	GetPackets (void) const
uint32_t	GetNPackets (void) const
uint32_t	GetSize (void) const
std::list< Ptr< Packet > >::const_iterator	Begin (void) const
std::list< Ptr< Packet > >::const_iterator	End (void) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	this class implement a burst as a list of packets

---

Member Function Documentation

void ns3::PacketBurst::AddPacket

(

Ptr< Packet >

packet

)

add a packet to the list of packet

Parameters:

packet

the packet to add

Ptr<PacketBurst> ns3::PacketBurst::Copy

(

void

)

const

Returns:

a copy the packetBurst

uint32_t ns3::PacketBurst::GetNPackets

(

void

)

const

Returns:

the number of packet in the burst

std::list<Ptr<Packet> > ns3::PacketBurst::GetPackets

(

void

)

const

Returns:

the list of packet of this burst

uint32_t ns3::PacketBurst::GetSize

(

void

)

const

Returns:

the size of the burst in byte (the size of all packets)

static TypeId ns3::PacketBurst::GetTypeId

(

void

)

[static]

this class implement a burst as a list of packets

This method returns the TypeId associated to ns3::PacketBurst.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::PacketBurst
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::PacketBurst

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/common/packet-burst.h
• doc/introspected-doxygen.h
