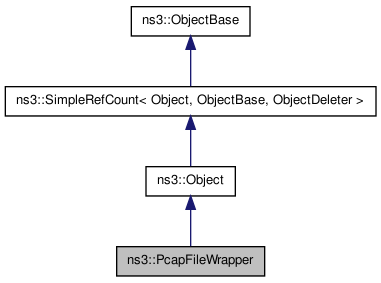

Inheritance diagram for ns3::PcapFileWrapper:

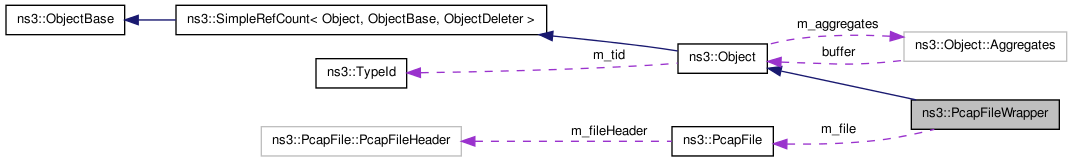

Collaboration diagram for ns3::PcapFileWrapper:

Public Member Functions
bool	Fail (void) const
bool	Eof (void) const
void	Clear (void)
void	Open (std::string const &filename, std::ios::openmode mode)
void	Close (void)
void	Init (uint32_t dataLinkType, uint32_t snapLen=std::numeric_limits< uint32_t >::max(), int32_t tzCorrection=PcapFile::ZONE_DEFAULT)
void	Write (Time t, Ptr< const Packet > p)
	Write the next packet to file.
void	Write (Time t, Header &header, Ptr< const Packet > p)
	Write the provided header along with the packet to the pcap file.
void	Write (Time t, uint8_t const *buffer, uint32_t length)
	Write the provided data buffer to the pcap file.
uint32_t	GetMagic (void)
uint16_t	GetVersionMajor (void)
uint16_t	GetVersionMinor (void)
int32_t	GetTimeZoneOffset (void)
uint32_t	GetSigFigs (void)
uint32_t	GetSnapLen (void)
uint32_t	GetDataLinkType (void)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::PcapFileWrapper.

Member Function Documentation

void ns3::PcapFileWrapper::Clear ( void )

Clear all state bits of the underlying iostream.

void ns3::PcapFileWrapper::Close ( void )

Close the underlying pcap file.

bool ns3::PcapFileWrapper::Eof ( void ) const

Returns:: true if the 'eof' bit is set in the underlying iostream, false otherwise.

bool ns3::PcapFileWrapper::Fail ( void ) const

Returns:: true if the 'fail' bit is set in the underlying iostream, false otherwise.

static TypeId ns3::PcapFileWrapper::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::PcapFileWrapper.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::PcapFileWrapper
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::PcapFileWrapper

Attributes defined for this type:

CaptureSize: Maximum length of captured packets (cf. pcap snaplen)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:65535
- Initial value: 65535
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

void ns3::PcapFileWrapper::Init	(	uint32_t	dataLinkType,
		uint32_t	snapLen = `std::numeric_limits< uint32_t >::max()`,
		int32_t	tzCorrection = `PcapFile::ZONE_DEFAULT`
	)

Initialize the pcap file associated with this wrapper. This file must have been previously opened with write permissions.

Parameters:

	dataLinkType	A data link type as defined in the pcap library. If you want to make resulting pcap files visible in existing tools, the data link type must match existing definitions, such as PCAP_ETHERNET, PCAP_PPP, PCAP_80211, etc. If you are storing different kinds of packet data, such as naked TCP headers, you are at liberty to locally define your own data link types. According to the pcap-linktype man page, "well-known" pcap linktypes range from 0 to 177. If you use a large random number for your type, chances are small for a collision.
	snapLen	An optional maximum size for packets written to the file. Defaults to 65535. If packets exceed this length they are truncated.
	tzCorrection	An integer describing the offset of your local time zone from UTC/GMT. For example, Pacific Standard Time in the US is GMT-8, so one would enter -8 for that correction. Defaults to 0 (UTC).

Warning:: Calling this method on an existing file will result in the loss any existing data.

void ns3::PcapFileWrapper::Open	(	std::string const &	filename,
		std::ios::openmode	mode
	)

Create a new pcap file or open an existing pcap file. Semantics are similar to the stdc++ io stream classes.

Since a pcap file is always a binary file, the file type is automatically selected as a binary file (fstream::binary is automatically ored with the mode field).

Parameters:

	filename	String containing the name of the file.
	mode	String containing the access mode for the file.

void ns3::PcapFileWrapper::Write	(	Time	t,
		uint8_t const *	buffer,
		uint32_t	length
	)

Write the provided data buffer to the pcap file.

Parameters:

	t	Packet timestamp as ns3::Time.
	buffer	The buffer to write.
	length	The size of the buffer.

void ns3::PcapFileWrapper::Write	(	Time	t,
		Ptr< const Packet >	p
	)

Write the next packet to file.

Parameters:

	t	Packet timestamp as ns3::Time.
	p	Packet to write to the pcap file.

void ns3::PcapFileWrapper::Write	(	Time	t,
		Header &	header,
		Ptr< const Packet >	p
	)

Write the provided header along with the packet to the pcap file.

It is the case that adding a header to a packet prior to writing it to a file must trigger a deep copy in the Packet. By providing the header separately, we can avoid that copy.

Parameters:

	t	Packet timestamp as ns3::Time.
	header	The Header to prepend to the packet.
	p	Packet to write to the pcap file.

The documentation for this class was generated from the following files:

src/common/pcap-file-wrapper.h
doc/introspected-doxygen.h
