2D random walk mobility model. More...
#include <random-walk-2d-mobility-model.h>

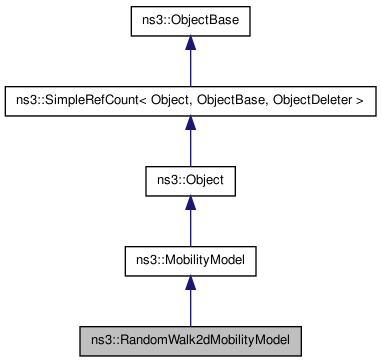

Inheritance diagram for ns3::RandomWalk2dMobilityModel:

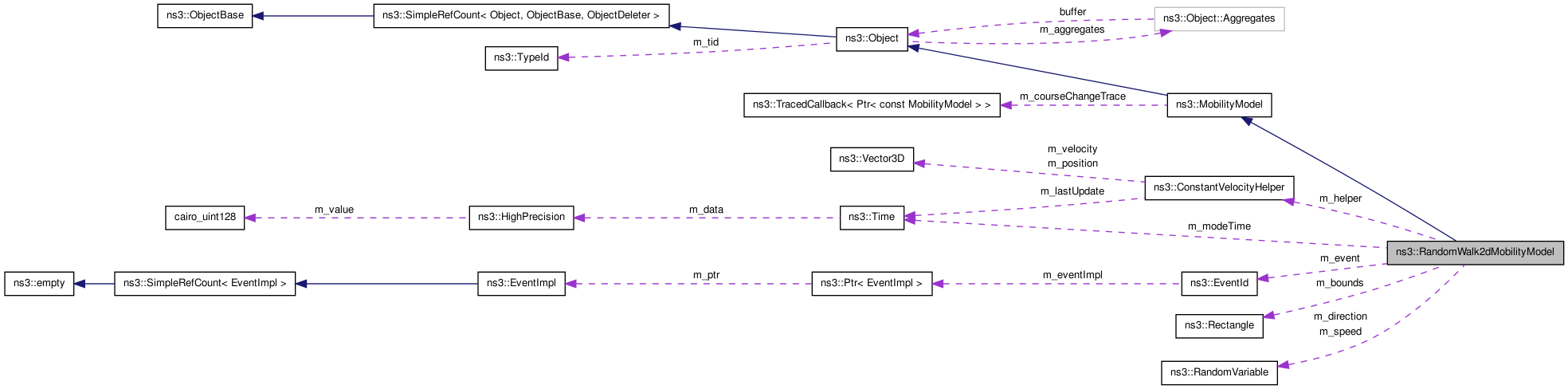

Collaboration diagram for ns3::RandomWalk2dMobilityModel:
Public Types | |
| enum | Mode { MODE_DISTANCE, MODE_TIME } |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::RandomWalk2dMobilityModel. | |
Detailed Description
2D random walk mobility model.
Each instance moves with a speed and direction choosen at random with the user-provided random variables until either a fixed distance has been walked or until a fixed amount of time. If we hit one of the boundaries (specified by a rectangle), of the model, we rebound on the boundary with a reflexive angle and speed. This model is often identified as a brownian motion model.
Member Function Documentation
| static TypeId ns3::RandomWalk2dMobilityModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::RandomWalk2dMobilityModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::RandomWalk2dMobilityModel
Attributes defined for this type:
-
Bounds: Bounds of the area to cruise.
- Set with class: RectangleValue
- Underlying type: Rectangle
- Initial value: 0|0|100|100
- Flags: construct write read
- Time: Change current direction and speed after moving for this delay.
-
Distance: Change current direction and speed after moving for this distance.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
-
Mode: The mode indicates the condition used to change the current speed and direction
- Set with class: ns3::EnumValue
- Underlying type: Distance|Time
- Initial value: Distance
- Flags: construct write read
-
Direction: A random variable used to pick the direction (gradients).
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:0:6.28318
- Flags: construct write read
-
Speed: A random variable used to pick the speed (m/s).
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:2:4
- Flags: construct write read
Attributes defined in parent class ns3::MobilityModel:
-
Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
-
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read
No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:
- CourseChange: The value of the position and/or velocity vector changed
Reimplemented from ns3::MobilityModel.
The documentation for this class was generated from the following files:
- src/mobility/random-walk-2d-mobility-model.h
- doc/introspected-doxygen.h
