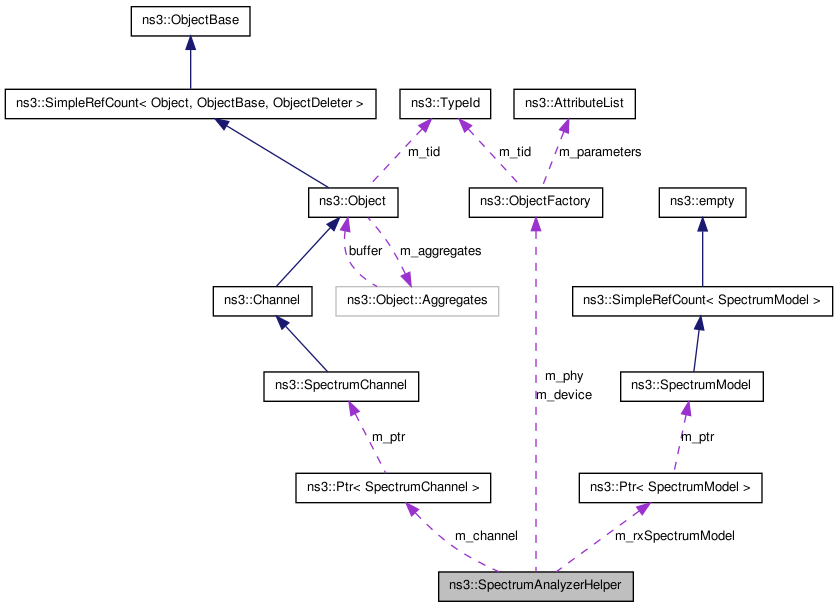

Collaboration diagram for ns3::SpectrumAnalyzerHelper:

Public Member Functions
void	SetChannel (Ptr< SpectrumChannel > channel)
void	SetChannel (std::string channelName)
void	SetPhyAttribute (std::string name, const AttributeValue &v)
void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
void	SetRxSpectrumModel (Ptr< SpectrumModel > m)
void	EnableAsciiAll (std::string prefix)
NetDeviceContainer	Install (NodeContainer c) const
NetDeviceContainer	Install (Ptr< Node > node) const
NetDeviceContainer	Install (std::string nodeName) const

Member Function Documentation

void ns3::SpectrumAnalyzerHelper::EnableAsciiAll ( std::string prefix )

Enable ASCII output. This will create one filename for every created SpectrumAnalyzer instance.

Parameters:

prefix

the prefix of the filename of the traces that will be created.

NetDeviceContainer ns3::SpectrumAnalyzerHelper::Install ( Ptr< Node > node ) const

Parameters:

node

the node on which a device must be created

Returns:: a device container which contains all the devices created by this method.

NetDeviceContainer ns3::SpectrumAnalyzerHelper::Install ( std::string nodeName ) const

Parameters:

nodeName

the name of node on which a device must be created

Returns:: a device container which contains all the devices created by this method.

NetDeviceContainer ns3::SpectrumAnalyzerHelper::Install ( NodeContainer c ) const

Parameters:

c

the set of nodes on which a device must be created

Returns:: a device container which contains all the devices created by this method.

void ns3::SpectrumAnalyzerHelper::SetChannel ( std::string channelName )

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters:

channelName

void ns3::SpectrumAnalyzerHelper::SetChannel ( Ptr< SpectrumChannel > channel )

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters:

channel

void ns3::SpectrumAnalyzerHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters:

	n1	the name of the attribute to set
	v1	the value of the attribute to set

Set these attributes on each AlohaNoackNetDevice created

void ns3::SpectrumAnalyzerHelper::SetPhyAttribute	(	std::string	name,
		const AttributeValue &	v
	)

Parameters:

	name	the name of the attribute to set
	v	the value of the attribute

Set these attributes on each HdOfdmSpectrumPhy instance to be created

void ns3::SpectrumAnalyzerHelper::SetRxSpectrumModel ( Ptr< SpectrumModel > m )

Set the spectrum model used by the created SpectrumAnalyzer instances to represent incoming signals

Parameters:

m

The documentation for this class was generated from the following file:
