ns3::SpectrumConverter Class Reference

#include <spectrum-converter.h>

Inheritance diagram for ns3::SpectrumConverter:

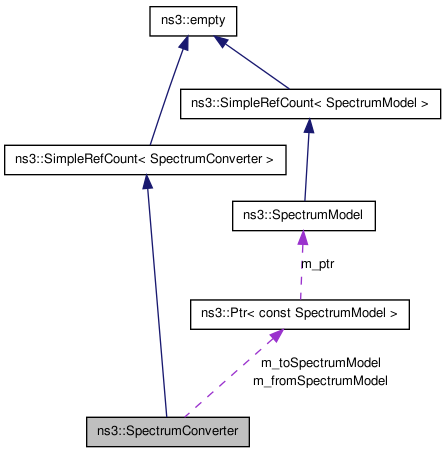

Collaboration diagram for ns3::SpectrumConverter:

List of all members.

Public Member Functions
	SpectrumConverter (Ptr< const SpectrumModel > fromSpectrumModel, Ptr< const SpectrumModel > toSpectrumModel)
Ptr< SpectrumValue >	Convert (Ptr< const SpectrumValue > vvf) const

---

Detailed Description

Class which implements a converter between SpectrumValue which are defined over different SpectrumModel. In more formal terms, this class allows conversion between different function spaces. In practical terms, this allows you to mix different spectrum representation within the same channel, such as a device using a coarse spectrum representation (e.g., one frequency for each IEEE 802.11 channel) and devices using a finer representation (e.g., one frequency for each OFDM subcarrier).

---

Constructor & Destructor Documentation

ns3::SpectrumConverter::SpectrumConverter	(	Ptr< const SpectrumModel >	fromSpectrumModel,
		Ptr< const SpectrumModel >	toSpectrumModel
	)

Create a SpectrumConverter class that will be able to convert ValueVsFreq instances defined over one SpectrumModel to corresponding ValueVsFreq instances defined over a diffent SpectrumModel

Parameters:

	fromSpectrumModel	the SpectrumModel to convert from
	toSpectrumModel	the SpectrumModel to convert to

---

Member Function Documentation

Ptr<SpectrumValue> ns3::SpectrumConverter::Convert

(

Ptr< const SpectrumValue >

vvf

)

const

Convert a particular ValueVsFreq instance to

Parameters:

vvf

the ValueVsFreq instance to be converted

Returns:

the converted version of the provided ValueVsFreq

---

The documentation for this class was generated from the following file:

• src/common/spectrum-converter.h
