#include <spectrum-interference.h>

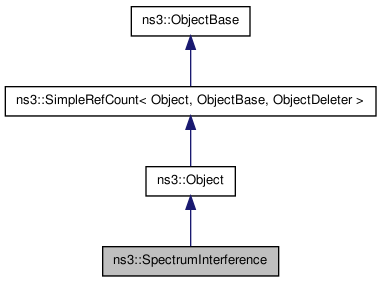

Inheritance diagram for ns3::SpectrumInterference:

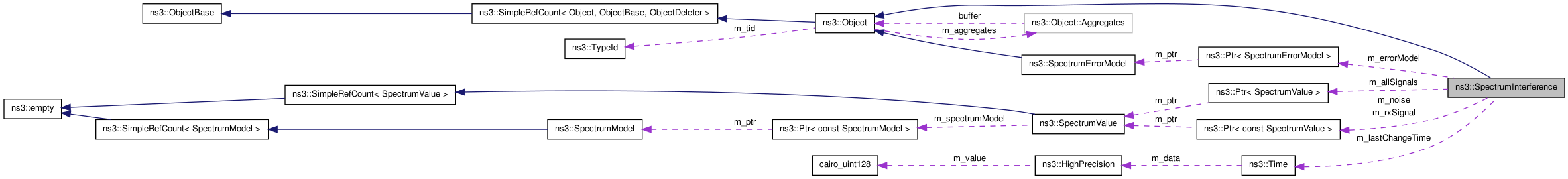

Collaboration diagram for ns3::SpectrumInterference:

Public Member Functions
void	SetErrorModel (Ptr< SpectrumErrorModel > e)
void	StartRx (Ptr< const Packet > p, Ptr< const SpectrumValue > rxPsd)
bool	EndRx ()
void	AddSignal (Ptr< const SpectrumValue > spd, const Time duration)
void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)
Protected Member Functions
void	DoDispose ()

Detailed Description

This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference.

Member Function Documentation

void ns3::SpectrumInterference::AddSignal	(	Ptr< const SpectrumValue >	spd,
		const Time	duration
	)

notify that a new signal is being perceived in the medium. This method is to be called for all incoming signal, regardless of wether they're useful signals or interferers.

Parameters:

	spd	the power spectral density of the new signal
	duration	the duration of the new signal

void ns3::SpectrumInterference::DoDispose ( ) [protected, virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

bool ns3::SpectrumInterference::EndRx ( )

notify that the RX attempt has ended. The receiving PHY must call this method upon RX end in order to: 1) know if RX was successful or not 2) free up resources that might eventually be used for the calculation of interference. Note that for this reason this method must also be called when RX is aborted.

Returns:: true if RX was successful, false otherwise

void ns3::SpectrumInterference::SetErrorModel ( Ptr< SpectrumErrorModel > e )

set the SpectrumErrorModel to be used.

Parameters:

e

void ns3::SpectrumInterference::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue > noisePsd )

Parameters:

noisePsd

the Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

void ns3::SpectrumInterference::StartRx	(	Ptr< const Packet >	p,
		Ptr< const SpectrumValue >	rxPsd
	)

notify that the PHY is starting a RX attempt

Parameters:

	p	the packet corresponding to the signal being RX
	rxPsd	the power spectral density of the signal being RX

The documentation for this class was generated from the following file:

src/devices/spectrum/spectrum-interference.h
