spectrum-aware propagation loss model More...

#include <spectrum-propagation-loss-model.h>

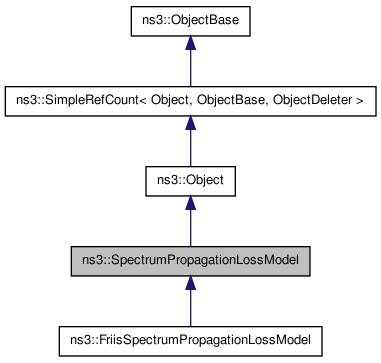

Inheritance diagram for ns3::SpectrumPropagationLossModel:

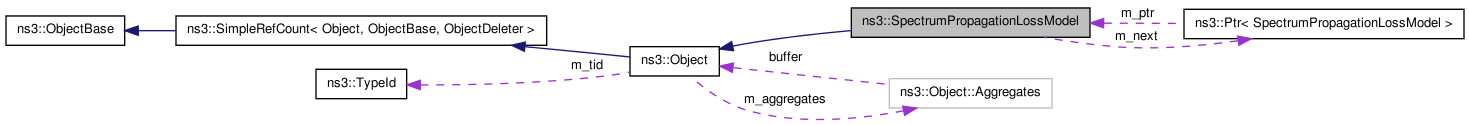

Collaboration diagram for ns3::SpectrumPropagationLossModel:

Public Member Functions
void	SetNext (Ptr< SpectrumPropagationLossModel > next)
Ptr< SpectrumValue >	CalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::SpectrumPropagationLossModel.
Protected Member Functions
virtual void	DoDispose ()

Detailed Description

spectrum-aware propagation loss model

Interface for propagation loss models to be adopted when transmissions are modeled with a power spectral density by means of the SpectrumValue class.

Member Function Documentation

Ptr<SpectrumValue> ns3::SpectrumPropagationLossModel::CalcRxPowerSpectralDensity	(	Ptr< const SpectrumValue >	txPsd,
		Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b
	)			const

This method is to be called to calculate

Parameters:

	txPsd	the SpectrumValue representing the power spectral density of the transmission. Watt units are to be used for radio communications, and Pascal units for acoustic communications (e.g. underwater).
	a	sender mobility
	b	receiver mobility

Returns:: set of values vs frequency representing the received power in the same units used for the txPower parameter.

virtual void ns3::SpectrumPropagationLossModel::DoDispose ( ) [protected, virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

static TypeId ns3::SpectrumPropagationLossModel::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::SpectrumPropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::SpectrumPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::SpectrumPropagationLossModel

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::FriisSpectrumPropagationLossModel.

void ns3::SpectrumPropagationLossModel::SetNext ( Ptr< SpectrumPropagationLossModel > next )

used to chain various instances of SpectrumPropagationLossModel

Parameters:

next

The documentation for this class was generated from the following files:

src/common/spectrum-propagation-loss-model.h
doc/introspected-doxygen.h
