Steady-state random waypoint mobility model. More...
#include <steady-state-random-waypoint-mobility-model.h>

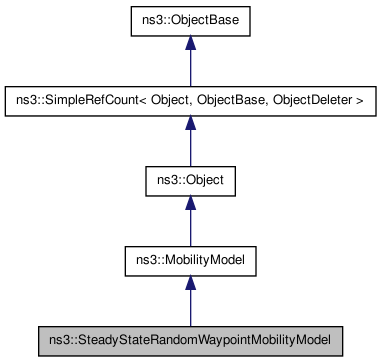

Inheritance diagram for ns3::SteadyStateRandomWaypointMobilityModel:

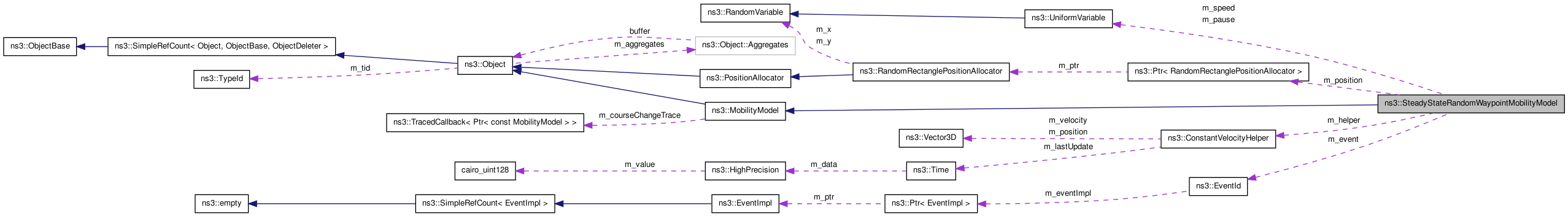

Collaboration diagram for ns3::SteadyStateRandomWaypointMobilityModel:
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::SteadyStateRandomWaypointMobilityModel. | |
Protected Member Functions | |
| virtual void | DoStart (void) |
Detailed Description
Steady-state random waypoint mobility model.
This model based on random waypoint mobility (RWM) model for case when speed, pause and position are uniformly distributed random variables. The difference is that the initial values of this parameters are not from uniform distribution but from stationary distribution of RWM model. The implementation of this model is 2d-specific and with nonzero nodes speeds.
Based on NS-2 implementation by Toilers Research Group -- Colorado School of Mines (http://toilers.mines.edu). The papers related to this code are: W. Navidi and T. Camp, Stationary Distributions for the Random Waypoint Mobility Model, IEEE Transactions on Mobile Computing, vol. 3, no. 1, pp. 99-108, January-March 2004. W. Navidi, T. Camp, and N. Bauer, Improving the Accuracy of Random Waypoint Simulations Through Steady-State Initialization, Proceedings of the 15th International Conference on Modeling and Simulation (MS '04), pp. 319-326, March 2004.
Member Function Documentation
| virtual void ns3::SteadyStateRandomWaypointMobilityModel::DoStart | ( | void | ) | [protected, virtual] |
This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.
Subclasses are expected to override this method and _chain up_ to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.
Reimplemented from ns3::Object.
| static TypeId ns3::SteadyStateRandomWaypointMobilityModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::SteadyStateRandomWaypointMobilityModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Child/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::HierarchicalMobilityModel/Parent/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::MobilityModel/$ns3::SteadyStateRandomWaypointMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::SteadyStateRandomWaypointMobilityModel
Attributes defined for this type:
-
MinSpeed: Minimum speed value, [m/s]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.3
- Flags: construct write read
-
MaxSpeed: Maximum speed value, [m/s]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.7
- Flags: construct write read
-
MinPause: Minimum pause value, [s]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
-
MaxPause: Maximum pause value, [s]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
-
MinX: Minimum X value of traveling region, [m]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
-
MaxX: Maximum X value of traveling region, [m]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
-
MinY: Minimum Y value of traveling region, [m]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
-
MaxY: Maximum Y value of traveling region, [m]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
Attributes defined in parent class ns3::MobilityModel:
-
Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
-
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read
No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:
- CourseChange: The value of the position and/or velocity vector changed
Reimplemented from ns3::MobilityModel.
The documentation for this class was generated from the following files:
- src/mobility/steady-state-random-waypoint-mobility-model.h
- doc/introspected-doxygen.h
