Static Public Member Functions

ns3::TcpSocket Class Reference
[Socket]

(abstract) base class of all TcpSockets More...

#include <tcp-socket.h>

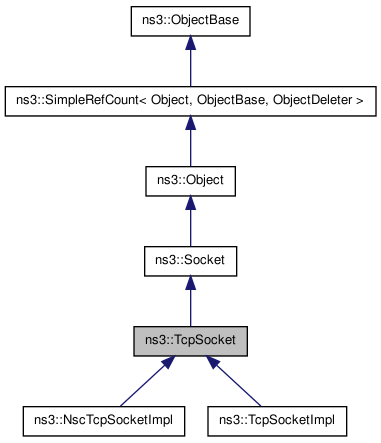

Inheritance diagram for ns3::TcpSocket:
Inheritance graph
[legend]

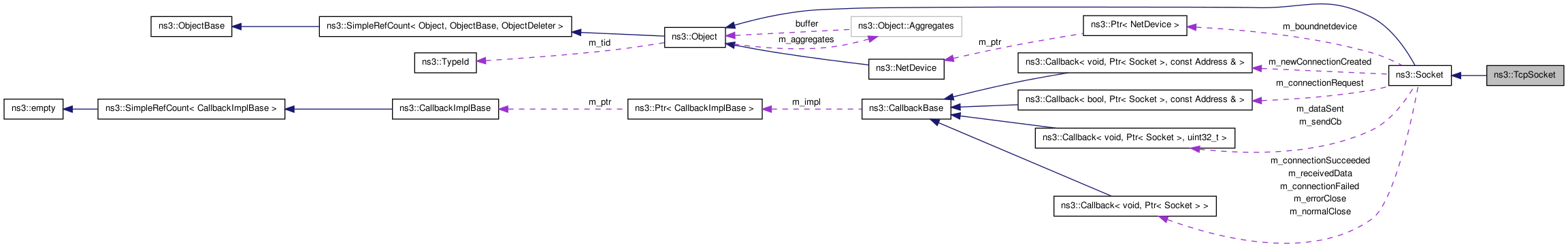

Collaboration diagram for ns3::TcpSocket:
Collaboration graph
[legend]

List of all members.

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::TcpSocket.

Detailed Description

(abstract) base class of all TcpSockets

This class exists solely for hosting TcpSocket attributes that can be reused across different implementations.


Member Function Documentation

static TypeId ns3::TcpSocket::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::TcpSocket.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::TcpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::TcpSocket

Attributes defined for this type:

  • SndBufSize: TcpSocket maximum transmit buffer size (bytes)
  • RcvBufSize: TcpSocket maximum receive buffer size (bytes)
  • SegmentSize: TCP maximum segment size in bytes (may be adjusted based on MTU discovery)
  • SlowStartThreshold: TCP slow start threshold (bytes)
  • InitialCwnd: TCP initial congestion window size (segments)
  • ConnTimeout: TCP retransmission timeout when opening connection (seconds)
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 3000000000ns
    • Flags: construct write read
  • ConnCount: Number of connection attempts (SYN retransmissions) before returning failure
  • DelAckTimeout: Timeout value for TCP delayed acks, in seconds
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 200000000ns
    • Flags: construct write read
  • DelAckCount: Number of packets to wait before sending a TCP ack

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::NscTcpSocketImpl, and ns3::TcpSocketImpl.


The documentation for this class was generated from the following files:
