ns3::TopologyReader::Link Class Reference [Topology Input Readers]

Inner class holding the details about a link between two nodes. More...

#include <topology-reader.h>

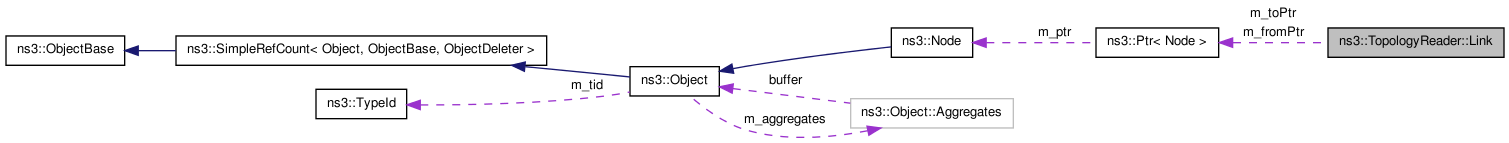

Collaboration diagram for ns3::TopologyReader::Link:

List of all members.

Public Types
typedef std::map< std::string, std::string >::const_iterator	ConstAttributesIterator
Public Member Functions
	Link (Ptr< Node > fromPtr, std::string fromName, Ptr< Node > toPtr, std::string toName)
Ptr< Node >	GetFromNode (void) const
	Returns a Ptr<Node> to the "from" node of the link.
std::string	GetFromNodeName (void) const
	Returns the name of the "from" node of the link.
Ptr< Node >	GetToNode (void) const
	Returns a Ptr<Node> to the "to" node of the link.
std::string	GetToNodeName (void) const
	Returns the name of the "to" node of the link.
std::string	GetAttribute (std::string name)
	Returns the value of a link attribute. The attribute must exist.
bool	GetAttributeFailSafe (std::string name, std::string &value)
	Returns the value of a link attribute.
void	SetAttribute (std::string name, std::string &value)
	Sets an arbitrary link attribute.
ConstAttributesIterator	AttributesBegin (void)
	Returns an iterator to the begin of the attributes.
ConstAttributesIterator	AttributesEnd (void)
	Returns an iterator to the end of the attributes.

---

Detailed Description

Inner class holding the details about a link between two nodes.

The link is not described in terms of technology. Rather it is only stating an association between two nodes. The nodes are characterized also with names reflecting how the nodes are called in the original topology file.

---

Member Function Documentation

ConstAttributesIterator ns3::TopologyReader::Link::AttributesBegin

(

void

)

Returns an iterator to the begin of the attributes.

Returns:

a const iterator to the first attribute of a link.

ConstAttributesIterator ns3::TopologyReader::Link::AttributesEnd

(

void

)

Returns an iterator to the end of the attributes.

Returns:

a const iterator to the last attribute of a link.

std::string ns3::TopologyReader::Link::GetAttribute

(

std::string

name

)

Returns the value of a link attribute. The attribute must exist.

Parameters:

name

the name of the attribute

Returns:

the value of the attribute

bool ns3::TopologyReader::Link::GetAttributeFailSafe	(	std::string	name,
		std::string &	value
	)

Returns the value of a link attribute.

Parameters:

	name	the name of the attribute
	value	the value of the attribute

Returns:

true if the attribute was defined, false otherwise.

Ptr<Node> ns3::TopologyReader::Link::GetFromNode

(

void

)

const

Returns a Ptr<Node> to the "from" node of the link.

Returns:

a Ptr<Node> to the "from" node of the link

std::string ns3::TopologyReader::Link::GetFromNodeName

(

void

)

const

Returns the name of the "from" node of the link.

Returns:

the name of the "from" node of the link

Ptr<Node> ns3::TopologyReader::Link::GetToNode

(

void

)

const

Returns a Ptr<Node> to the "to" node of the link.

Returns:

a Ptr<Node> to the "to" node of the link

std::string ns3::TopologyReader::Link::GetToNodeName

(

void

)

const

Returns the name of the "to" node of the link.

Returns:

the name of the "to" node of the link

void ns3::TopologyReader::Link::SetAttribute	(	std::string	name,
		std::string &	value
	)

Sets an arbitrary link attribute.

Parameters:

	name	the name of the attribute
	value	the value of the attribute

---

The documentation for this class was generated from the following file:

• src/contrib/topology-read/topology-reader.h
