control access to objects' trace sources More...

#include <trace-source-accessor.h>

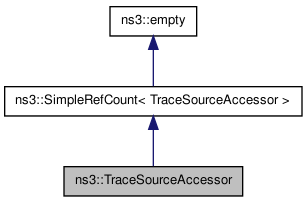

Inheritance diagram for ns3::TraceSourceAccessor:

Collaboration diagram for ns3::TraceSourceAccessor:

Public Member Functions
virtual bool	ConnectWithoutContext (ObjectBase *obj, const CallbackBase &cb) const =0
virtual bool	Connect (ObjectBase *obj, std::string context, const CallbackBase &cb) const =0
virtual bool	DisconnectWithoutContext (ObjectBase *obj, const CallbackBase &cb) const =0
virtual bool	Disconnect (ObjectBase *obj, std::string context, const CallbackBase &cb) const =0

Detailed Description

control access to objects' trace sources

This class abstracts the kind of trace source to which we want to connect and provides services to Connect and Disconnect a sink to a trace source.

Member Function Documentation

virtual bool ns3::TraceSourceAccessor::Connect	(	ObjectBase *	obj,
		std::string	context,
		const CallbackBase &	cb
	)			const `[pure virtual]`

Parameters:

	obj	the object instance which contains the target trace source.
	context	the context to bind to the user callback.
	cb	the callback to connect to the target trace source.

virtual bool ns3::TraceSourceAccessor::ConnectWithoutContext	(	ObjectBase *	obj,
		const CallbackBase &	cb
	)			const `[pure virtual]`

Parameters:

	obj	the object instance which contains the target trace source.
	cb	the callback to connect to the target trace source.

virtual bool ns3::TraceSourceAccessor::Disconnect	(	ObjectBase *	obj,
		std::string	context,
		const CallbackBase &	cb
	)			const `[pure virtual]`

Parameters:

	obj	the object instance which contains the target trace source.
	context	the context which was bound to the user callback.
	cb	the callback to disconnect from the target trace source.

virtual bool ns3::TraceSourceAccessor::DisconnectWithoutContext	(	ObjectBase *	obj,
		const CallbackBase &	cb
	)			const `[pure virtual]`

Parameters:

	obj	the object instance which contains the target trace source.
	cb	the callback to disconnect from the target trace source.

The documentation for this class was generated from the following file:
