Packet error rate calculation assuming WHOI Micromodem like PHY Calculates PER assuming rate 1/2 convolutional code with constraint length 9 with soft decision viterbi decoding and a CRC capable of correcting 1 bit error. More...

#include <uan-phy-gen.h>

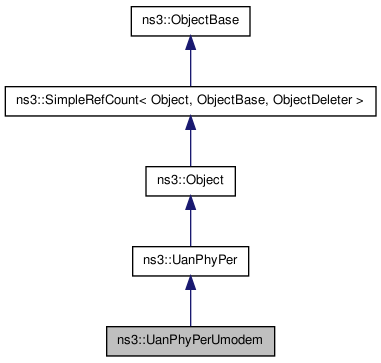

Inheritance diagram for ns3::UanPhyPerUmodem:

[legend]

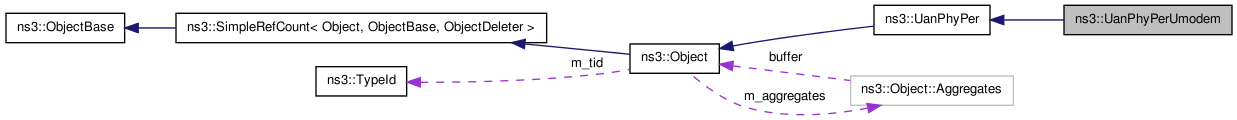

Collaboration diagram for ns3::UanPhyPerUmodem:

[legend]

List of all members.

Public Member Functions
virtual double	CalcPer (Ptr< Packet > pkt, double sinrDb, UanTxMode mode)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyPerUmodem.

Detailed Description

Packet error rate calculation assuming WHOI Micromodem like PHY Calculates PER assuming rate 1/2 convolutional code with constraint length 9 with soft decision viterbi decoding and a CRC capable of correcting 1 bit error.

Member Function Documentation

virtual double ns3::UanPhyPerUmodem::CalcPer	(	Ptr< Packet >	pkt,
		double	sinrDb,
		UanTxMode	mode
	)			`[virtual]`

This implementation uses calculations for binary FSK modulation coded by a rate 1/2 convolutional code with constraint length = 9 and a viterbi decoder and finally a CRC capable of correcting one bit error. These equations can be found in the book, Digital Communications, by Proakis (Any version I think)

Parameters:

	pkt	Packet which is under consideration
	sinrDb	SINR at receiver
	mode	TX mode used to transmit packet

Returns:: Probability of packet error

Implements ns3::UanPhyPer.

static TypeId ns3::UanPhyPerUmodem::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::UanPhyPerUmodem.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyPerUmodem
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyPerUmodem

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

The documentation for this class was generated from the following files:

src/devices/uan/model/uan-phy-gen.h
doc/introspected-doxygen.h
