ns3::UdpEchoServer Class Reference [UdpEcho]

A Udp Echo server. More...

#include <udp-echo-server.h>

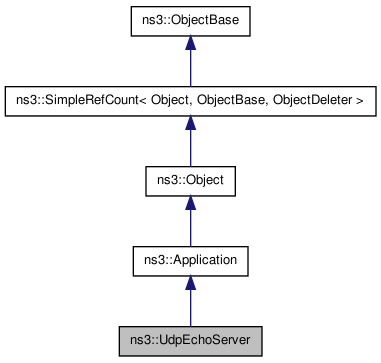

Inheritance diagram for ns3::UdpEchoServer:

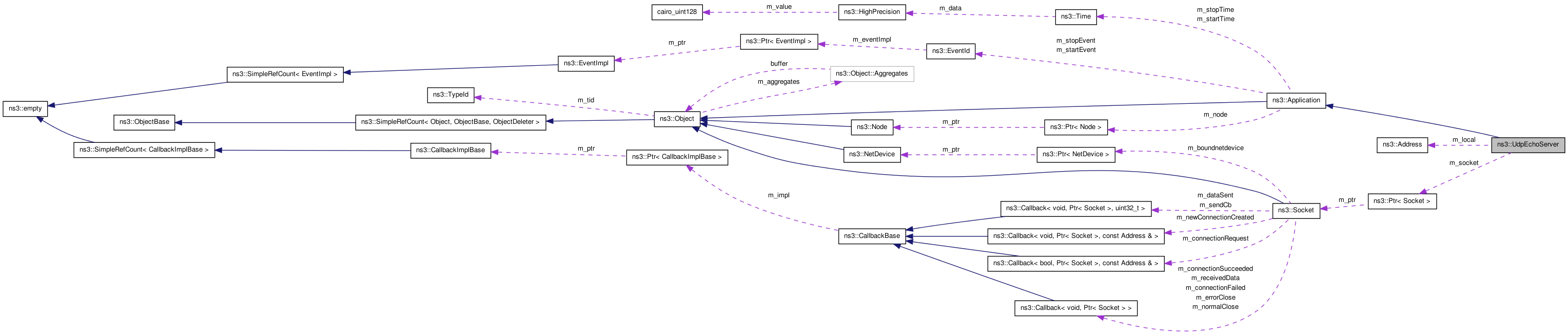

Collaboration diagram for ns3::UdpEchoServer:

List of all members.

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UdpEchoServer.
Protected Member Functions
virtual void	DoDispose (void)

---

Detailed Description

A Udp Echo server.

Every packet received is sent back.

---

Member Function Documentation

virtual void ns3::UdpEchoServer::DoDispose

(

void

)

[protected, virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

static TypeId ns3::UdpEchoServer::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::UdpEchoServer.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/ApplicationList/[i]/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Application/$ns3::UdpEchoServer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UdpEchoServer

Attributes defined for this type:

• Port: Port on which we listen for incoming packets.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Initial value: 9
  • Flags: construct write read

Attributes defined in parent class ns3::Application:

• StartTime: Time at which the application will start
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read
• StopTime: Time at which the application will stop
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Application.

---

The documentation for this class was generated from the following files:

• src/applications/udp-echo/udp-echo-server.h
• doc/introspected-doxygen.h
