ns3::WallClockSynchronizer Class Reference

Class used for synchronizing the simulation events to a real-time "wall clock" using Posix Clock functions. More...

#include <wall-clock-synchronizer.h>

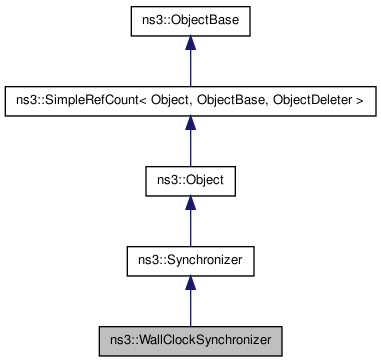

Inheritance diagram for ns3::WallClockSynchronizer:
Inheritance graph
[legend]

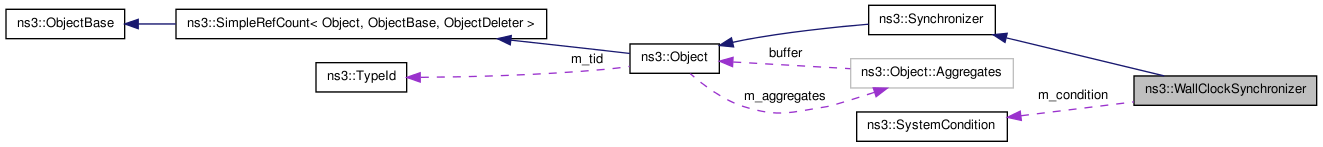

Collaboration diagram for ns3::WallClockSynchronizer:
Collaboration graph
[legend]

List of all members.

Static Public Attributes

static const uint64_t US_PER_NS = (uint64_t)1000
static const uint64_t US_PER_SEC = (uint64_t)1000000
static const uint64_t NS_PER_SEC = (uint64_t)1000000000

Protected Member Functions

virtual bool DoRealtime (void)
 Return true if this synchronizer is actually synchronizing to a realtime clock. The simulator sometimes needs to know this.
virtual uint64_t DoGetCurrentRealtime (void)
 Retrieve the value of the origin of the underlying normalized wall clock time in nanosecond units.
virtual void DoSetOrigin (uint64_t ns)
 Establish a correspondence between a simulation time and a wall-clock (real) time.
virtual int64_t DoGetDrift (uint64_t ns)
 Declaration of method used to retrieve drift between the real time clock used to synchronize the simulation and the current simulation time.
virtual bool DoSynchronize (uint64_t nsCurrent, uint64_t nsDelay)
 Wait until the real time is in sync with the specified simulation time.
virtual void DoSignal (void)
 Declaration of the method used to tell a possible simulator thread waiting in the DoSynchronize method that an event has happened which demands a reevaluation of the wait time.
virtual void DoSetCondition (bool cond)
 Declaration of the method used to set the condition variable that tells a possible simulator thread waiting in the Synchronize method that an event has happened which demands a reevaluation of the wait time.
virtual void DoEventStart (void)
virtual uint64_t DoEventEnd (void)
bool SpinWait (uint64_t)
bool SleepWait (uint64_t)
uint64_t DriftCorrect (uint64_t nsNow, uint64_t nsDelay)
uint64_t GetRealtime (void)
uint64_t GetNormalizedRealtime (void)
void NsToTimeval (int64_t ns, struct timeval *tv)
uint64_t TimevalToNs (struct timeval *tv)
void TimevalAdd (struct timeval *tv1, struct timeval *tv2, struct timeval *result)

Protected Attributes

uint64_t m_cpuTick
uint64_t m_realtimeTick
uint64_t m_jiffy
uint64_t m_nsEventStart
SystemCondition m_condition

Detailed Description

Class used for synchronizing the simulation events to a real-time "wall clock" using Posix Clock functions.

Enable this synchronizer using:

DefaultValue::Bind ("Synchronizer", "WallClockSynchronizer");

before calling any simulator functions.

The simulation clock is maintained as a 64-bit integer in a unit specified by the user through the TimeStepPrecision::Set function. This means that it is not possible to specify event expiration times with anything better than this user-specified accuracy.

There are a couple of more issues at this level. Posix clocks provide access to several clocks we could use as a wall clock. We don't care about time in the sense of 0430 CEST, we care about some piece of hardware that ticks at some regular period. The most accurate posix clock in this respect is the CLOCK_PROCESS_CPUTIME_ID clock. This is a high-resolution register in the CPU. For example, on Intel machines this corresponds to the timestamp counter (TSC) register. The resolution of this counter will be on the order of nanoseconds.

Now, just because we can measure time in nanoseconds doesn't mean we can put our process to sleep to nanosecond resolution. We are eventually going to use the function clock_nanosleep () to sleep until a simulation Time specified by the caller.

MORE ON JIFFIES, SLEEP, PROCESSES, etc., as required

Nanosleep takes a struct timespec as an input so we have to deal with conversion between Time and struct timespec here. They are both interpreted as elapsed times.


Member Function Documentation

virtual void ns3::WallClockSynchronizer::DoSetCondition ( bool   )  [protected, virtual]

Declaration of the method used to set the condition variable that tells a possible simulator thread waiting in the Synchronize method that an event has happened which demands a reevaluation of the wait time.

See also:
Synchronizer::SetCondition

Implements ns3::Synchronizer.

virtual void ns3::WallClockSynchronizer::DoSignal ( void   )  [protected, virtual]

Declaration of the method used to tell a possible simulator thread waiting in the DoSynchronize method that an event has happened which demands a reevaluation of the wait time.

See also:
Synchronizer::Signal

Implements ns3::Synchronizer.
