ns3::WaveformGeneratorHelper Class Reference

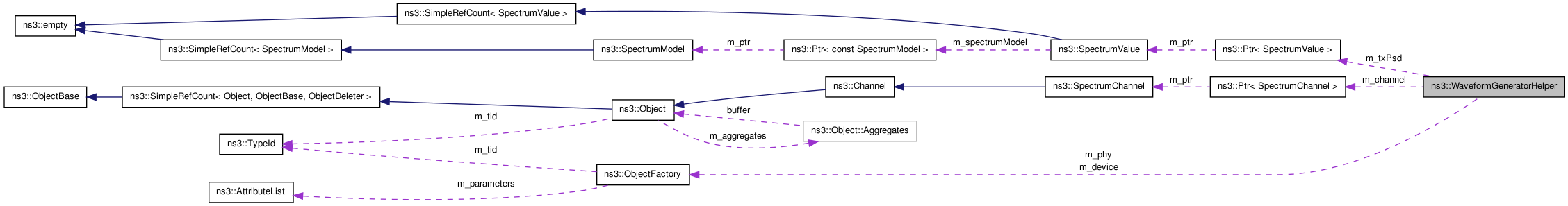

Collaboration diagram for ns3::WaveformGeneratorHelper:
Collaboration graph
[legend]

List of all members.

Public Member Functions

void SetChannel (Ptr< SpectrumChannel > channel)
void SetChannel (std::string channelName)
void SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)
void SetPhyAttribute (std::string name, const AttributeValue &v)
void SetDeviceAttribute (std::string n1, const AttributeValue &v1)
NetDeviceContainer Install (NodeContainer c) const
NetDeviceContainer Install (Ptr< Node > node) const
NetDeviceContainer Install (std::string nodeName) const

Protected Attributes

ObjectFactory m_phy
ObjectFactory m_device
Ptr< SpectrumChannelm_channel
Ptr< SpectrumValuem_txPsd

Member Function Documentation

NetDeviceContainer ns3::WaveformGeneratorHelper::Install ( NodeContainer  c  )  const
Parameters:
c the set of nodes on which a device must be created
Returns:
a device container which contains all the devices created by this method.
NetDeviceContainer ns3::WaveformGeneratorHelper::Install ( std::string  nodeName  )  const
Parameters:
nodeName the name of node on which a device must be created
Returns:
a device container which contains all the devices created by this method.
NetDeviceContainer ns3::WaveformGeneratorHelper::Install ( Ptr< Node node  )  const
Parameters:
node the node on which a device must be created
Returns:
a device container which contains all the devices created by this method.
void ns3::WaveformGeneratorHelper::SetChannel ( std::string  channelName  )

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters:
channelName
void ns3::WaveformGeneratorHelper::SetChannel ( Ptr< SpectrumChannel channel  )

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters:
channel
void ns3::WaveformGeneratorHelper::SetDeviceAttribute ( std::string  n1,
const AttributeValue v1
)
Parameters:
n1 the name of the attribute to set
v1 the value of the attribute to set

Set these attributes on each AlohaNoackNetDevice created

void ns3::WaveformGeneratorHelper::SetPhyAttribute ( std::string  name,
const AttributeValue v
)
Parameters:
name the name of the attribute to set
v the value of the attribute

Set these attributes on each HdOfdmSpectrumPhy instance to be created

void ns3::WaveformGeneratorHelper::SetTxPowerSpectralDensity ( Ptr< SpectrumValue txPsd  )
Parameters:
txPsd the Power Spectral Density to be used for transmission by all created PHY instances

The documentation for this class was generated from the following file:
