ns3::dot11s::HwmpRtable Class Reference [IEEE 802.11s draft]

Routing table for HWMP -- 802.11s routing protocol. More...

#include <hwmp-rtable.h>

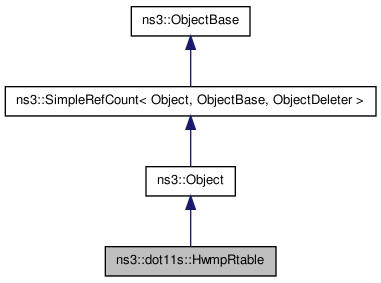

Inheritance diagram for ns3::dot11s::HwmpRtable:

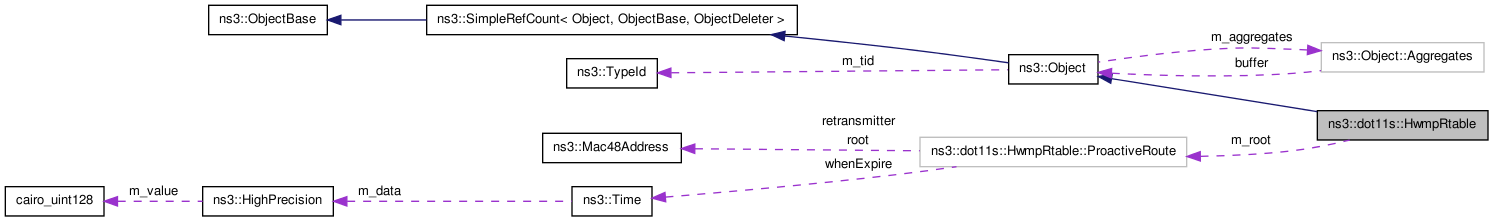

Collaboration diagram for ns3::dot11s::HwmpRtable:

List of all members.

Classes
struct	LookupResult
	Route lookup result, return type of LookupXXX methods. More...
struct	Precursor
	Route found in reactive mode.
struct	ProactiveRoute
	Route fond in proactive mode.
struct	ReactiveRoute
Public Types
typedef std::vector< std::pair < uint32_t, Mac48Address > >	PrecursorList
	Path precursor = {MAC, interface ID}.
Public Member Functions
void	DoDispose ()
std::vector < HwmpProtocol::FailedDestination >	GetUnreachableDestinations (Mac48Address peerAddress)
	When peer link with a given MAC-address fails - it returns list of unreachable destination addresses.
Add/delete paths
void	AddReactivePath (Mac48Address destination, Mac48Address retransmitter, uint32_t interface, uint32_t metric, Time lifetime, uint32_t seqnum)
void	AddProactivePath (uint32_t metric, Mac48Address root, Mac48Address retransmitter, uint32_t interface, Time lifetime, uint32_t seqnum)
void	AddPrecursor (Mac48Address destination, uint32_t precursorInterface, Mac48Address precursorAddress, Time lifetime)
PrecursorList	GetPrecursors (Mac48Address destination)
void	DeleteProactivePath ()
void	DeleteProactivePath (Mac48Address root)
void	DeleteReactivePath (Mac48Address destination)
Lookup
LookupResult	LookupReactive (Mac48Address destination)
	Lookup path to destination.
LookupResult	LookupReactiveExpired (Mac48Address destination)
	Return all reactive paths, including expired.
LookupResult	LookupProactive ()
	Find proactive path to tree root. Note that calling this method has side effect of deleting expired proactive path.
LookupResult	LookupProactiveExpired ()
	Return all proactive paths, including expired.
Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::dot11s::HwmpRtable.
Static Public Attributes
static const uint32_t	INTERFACE_ANY = 0xffffffff
	Means all interfaces.
static const uint32_t	MAX_METRIC = 0xffffffff
	Maximum (the best?) path metric.

---

Detailed Description

Routing table for HWMP -- 802.11s routing protocol.

---

Member Function Documentation

void ns3::dot11s::HwmpRtable::DoDispose

(

)

[virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

static TypeId ns3::dot11s::HwmpRtable::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::dot11s::HwmpRtable.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::dot11s::HwmpRtable
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::dot11s::HwmpRtable

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/devices/mesh/dot11s/hwmp-rtable.h
• doc/introspected-doxygen.h
