See 7.3.2.95 of 802.11s draft 2.07. More...
#include <ie-dot11s-rann.h>
Public Member Functions | |
| void | SetFlags (uint8_t flags) |
| void | SetHopcount (uint8_t hopcount) |
| void | SetTTL (uint8_t ttl) |
| void | SetOriginatorAddress (Mac48Address originator_address) |
| void | SetDestSeqNumber (uint32_t dest_seq_number) |
| void | SetMetric (uint32_t metric) |
| uint8_t | GetFlags () |
| uint8_t | GetHopcount () |
| uint8_t | GetTtl () |
| Mac48Address | GetOriginatorAddress () |
| uint32_t | GetDestSeqNumber () |
| uint32_t | GetMetric () |
| void | DecrementTtl () |
| void | IncrementMetric (uint32_t metric) |

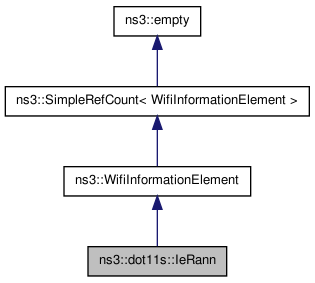

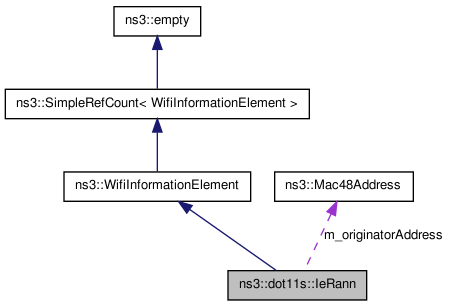

Inherited from WifiInformationElement | |
| virtual WifiInformationElementId | ElementId () const |
| Own unique Element ID. | |
| virtual void | SerializeInformationField (Buffer::Iterator i) const |
| virtual uint8_t | DeserializeInformationField (Buffer::Iterator start, uint8_t length) |
| virtual uint8_t | GetInformationFieldSize () const |
| virtual void | Print (std::ostream &os) const |
| In addition, a subclass may optionally override the following... | |
Friends | |
| bool | operator== (const IeRann &a, const IeRann &b) |
Detailed Description
See 7.3.2.95 of 802.11s draft 2.07.
Member Function Documentation
| virtual uint8_t ns3::dot11s::IeRann::DeserializeInformationField | ( | Buffer::Iterator | start, | |
| uint8_t | length | |||
| ) | [virtual] |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)
Implements ns3::WifiInformationElement.
| virtual uint8_t ns3::dot11s::IeRann::GetInformationFieldSize | ( | ) | const [virtual] |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. This is the value that will appear in the second octet of the entire IE - the length field)
Implements ns3::WifiInformationElement.
| virtual void ns3::dot11s::IeRann::Print | ( | std::ostream & | os | ) | const [virtual] |
In addition, a subclass may optionally override the following...
Generate human-readable form of IE
Reimplemented from ns3::WifiInformationElement.
| virtual void ns3::dot11s::IeRann::SerializeInformationField | ( | Buffer::Iterator | start | ) | const [virtual] |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets)
Implements ns3::WifiInformationElement.
The documentation for this class was generated from the following file:
- src/devices/mesh/dot11s/ie-dot11s-rann.h
