Routing table for FLAME. More...

#include <flame-rtable.h>

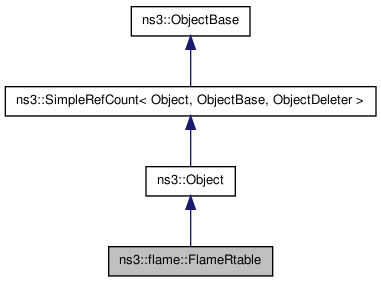

Inheritance diagram for ns3::flame::FlameRtable:

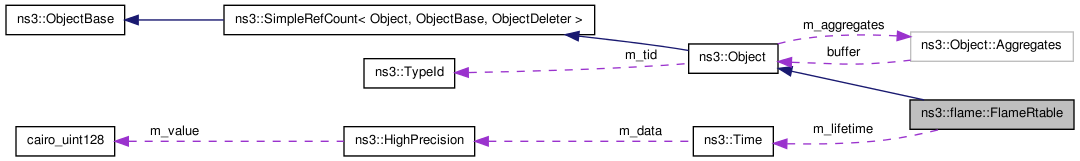

Collaboration diagram for ns3::flame::FlameRtable:

Classes
struct	LookupResult
	Route lookup result, return type of LookupXXX methods. More...
struct	Route
	Routing table entry.
Public Member Functions
void	DoDispose ()
void	AddPath (const Mac48Address destination, const Mac48Address retransmitter, const uint32_t interface, const uint8_t cost, const uint16_t seqnum)
	Add path.
LookupResult	Lookup (Mac48Address destination)
	Lookup path to destination.
Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::flame::FlameRtable.
Static Public Attributes
static const uint32_t	INTERFACE_ANY = 0xffffffff
	Means all interfaces.
static const uint32_t	MAX_COST = 0xff
	Maximum (the best?) path cost.

Detailed Description

Routing table for FLAME.

Member Function Documentation

void ns3::flame::FlameRtable::DoDispose ( ) [virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

static TypeId ns3::flame::FlameRtable::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::flame::FlameRtable.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::flame::FlameRtable
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::flame::FlameRtable

Attributes defined for this type:

Lifetime: The lifetime of the routing enrty
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 120000000000ns
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

LookupResult ns3::flame::FlameRtable::Lookup ( Mac48Address destination )

Lookup path to destination.

Returns:: Broadcast if not found

The documentation for this class was generated from the following files:

src/devices/mesh/flame/flame-rtable.h
doc/introspected-doxygen.h
