#include <epc-enb-application.h>

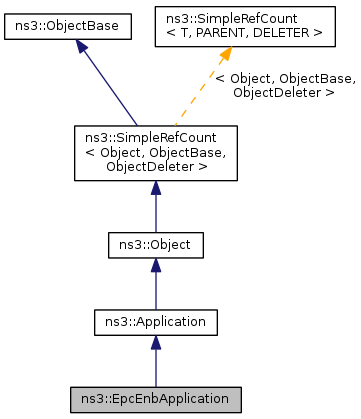

Inheritance diagram for ns3::EpcEnbApplication:

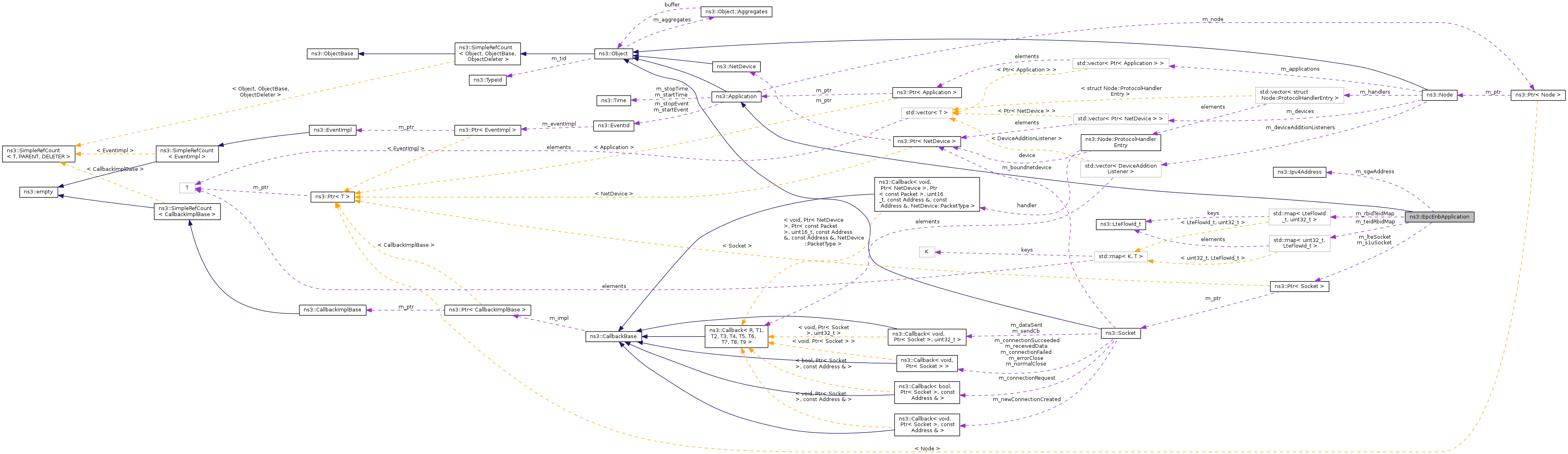

Collaboration diagram for ns3::EpcEnbApplication:

Public Member Functions
	EpcEnbApplication (Ptr< Socket > lteSocket, Ptr< Socket > s1uSocket, Ipv4Address sgwAddress)
virtual	~EpcEnbApplication (void)
void	ErabSetupRequest (uint32_t teid, uint16_t rnti, uint8_t lcid)
void	RecvFromLteSocket (Ptr< Socket > socket)
void	RecvFromS1uSocket (Ptr< Socket > socket)
void	SendToLteSocket (Ptr< Packet > packet, uint16_t rnti, uint8_t lcid)
void	SendToS1uSocket (Ptr< Packet > packet, uint32_t teid)
Public Member Functions inherited from ns3::Application
	Application ()
virtual	~Application ()
Ptr< Node >	GetNode () const
void	SetNode (Ptr< Node > node)
void	SetStartTime (Time start)
	Specify application start time.
void	SetStopTime (Time stop)
	Specify application stop time.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Application.

Private Attributes
uint16_t	m_gtpuUdpPort
Ptr< Socket >	m_lteSocket
std::map< LteFlowId_t, uint32_t >	m_rbidTeidMap
Ptr< Socket >	m_s1uSocket
Ipv4Address	m_sgwAddress
std::map< uint32_t, LteFlowId_t >	m_teidRbidMap

Additional Inherited Members
Protected Member Functions inherited from ns3::Application
virtual void	DoDispose (void)
virtual void	DoStart (void)
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
EventId	m_startEvent
Time	m_startTime
EventId	m_stopEvent
Time	m_stopTime

Detailed Description

This application is installed inside eNBs and provides the bridge functionality for user data plane packets between the radio interface and the S1-U interface.

Definition at line 43 of file epc-enb-application.h.

Constructor & Destructor Documentation

ns3::EpcEnbApplication::EpcEnbApplication	(	Ptr< Socket >	lteSocket,
		Ptr< Socket >	s1uSocket,
		Ipv4Address	sgwAddress
	)

Constructor

Parameters

lteSocket	the socket to be used to send/receive packets to/from the LTE radio interface
s1uSocket	the socket to be used to send/receive packets to/from the S1-U interface connected with the SGW
sgwAddress	the IPv4 address at which this eNB will be able to reach its SGW

Definition at line 45 of file epc-enb-application.cc.

References m_lteSocket, m_s1uSocket, ns3::MakeCallback(), NS_LOG_FUNCTION, RecvFromLteSocket(), RecvFromS1uSocket(), and ns3::Socket::SetRecvCallback().

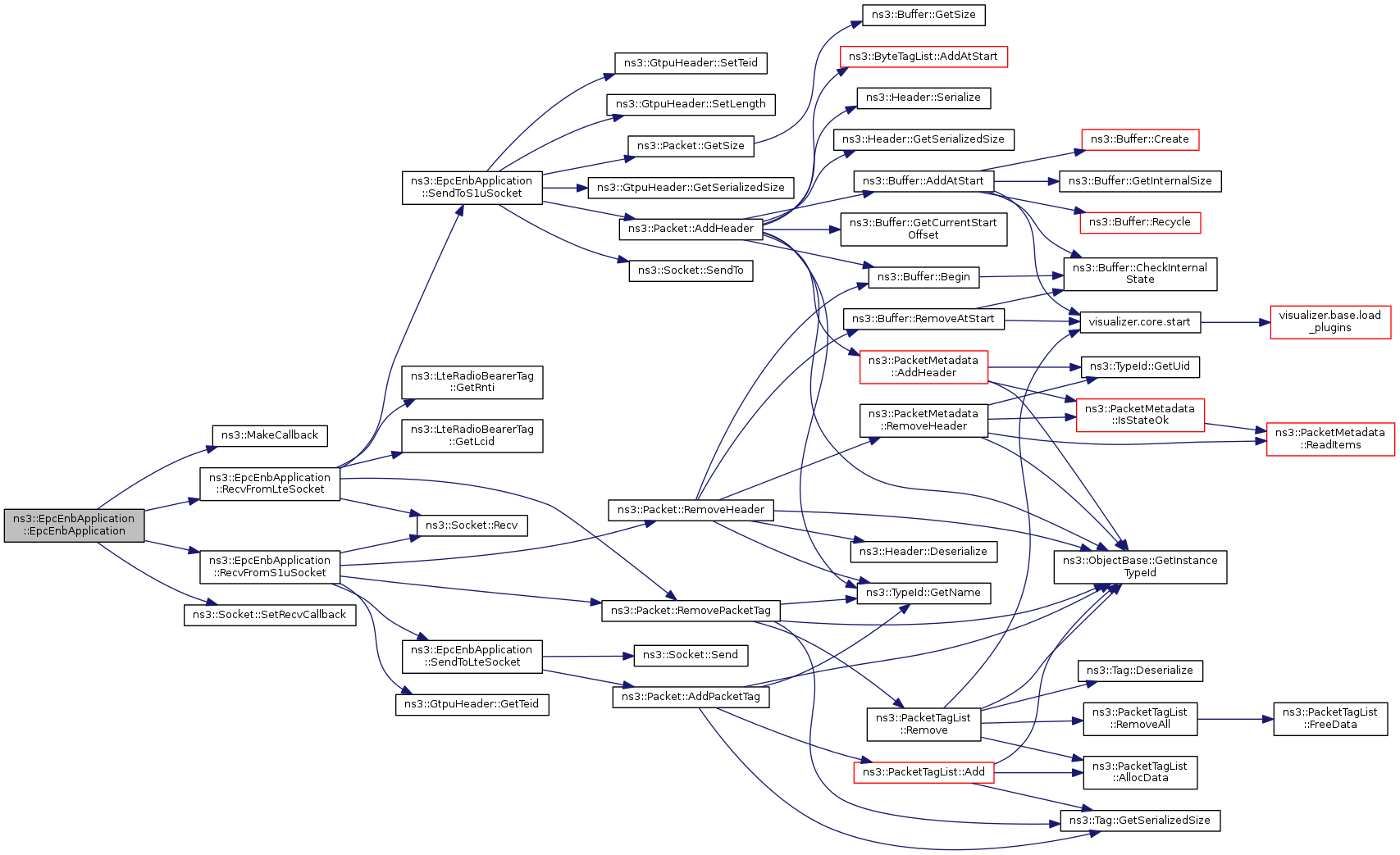

Here is the call graph for this function:

ns3::EpcEnbApplication::~EpcEnbApplication ( void )

virtual

Destructor

Definition at line 57 of file epc-enb-application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcEnbApplication::ErabSetupRequest	(	uint32_t	teid,
		uint16_t	rnti,
		uint8_t	lcid
	)

This method is triggered after the eNB received a S1-AP message of type E-RAB Setup Request by the MME and the RadioBearer has already been created

Parameters

teid	the Tunnel Endpoint IDentifier of the S1-bearer to be setup.
rnti	the unique ID of the UE on this eNB
lcid	the Logical Channel ID identifying the Radio Bearer

Definition at line 63 of file epc-enb-application.cc.

References m_rbidTeidMap, m_teidRbidMap, and NS_LOG_FUNCTION.

TypeId ns3::EpcEnbApplication::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::Application.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]

Attributes defined for this type:

StartTime: Time at which the application will start
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Application.

Definition at line 38 of file epc-enb-application.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::EpcEnbApplication::RecvFromLteSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the LTE socket. It is called when the eNB receives a data packet from the radio interface that is to be forwarded to the SGW.

Parameters

socket pointer to the LTE socket

Definition at line 73 of file epc-enb-application.cc.

References ns3::LteRadioBearerTag::GetLcid(), ns3::LteRadioBearerTag::GetRnti(), ns3::LteFlowId_t::m_lcId, m_lteSocket, m_rbidTeidMap, ns3::LteFlowId_t::m_rnti, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Socket::Recv(), ns3::Packet::RemovePacketTag(), and SendToS1uSocket().

Referenced by EpcEnbApplication().

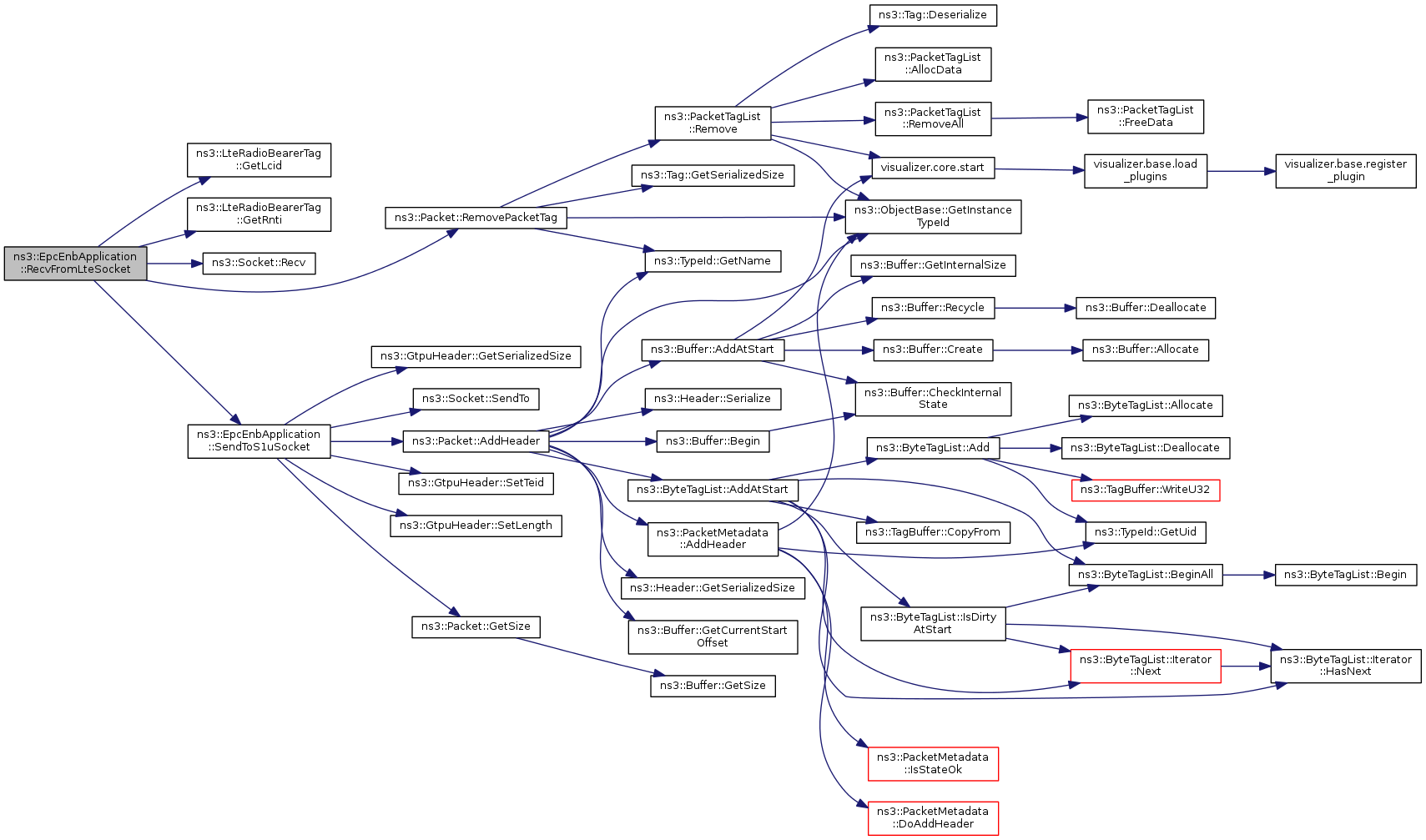

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EpcEnbApplication::RecvFromS1uSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the S1-U socket. It is called when the eNB receives a data packet from the SGW that is to be forwarded to the UE.

Parameters

socket pointer to the S1-U socket

Definition at line 97 of file epc-enb-application.cc.

References ns3::GtpuHeader::GetTeid(), m_s1uSocket, m_teidRbidMap, NS_ASSERT, NS_LOG_FUNCTION, ns3::Socket::Recv(), ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), and SendToLteSocket().

Referenced by EpcEnbApplication().

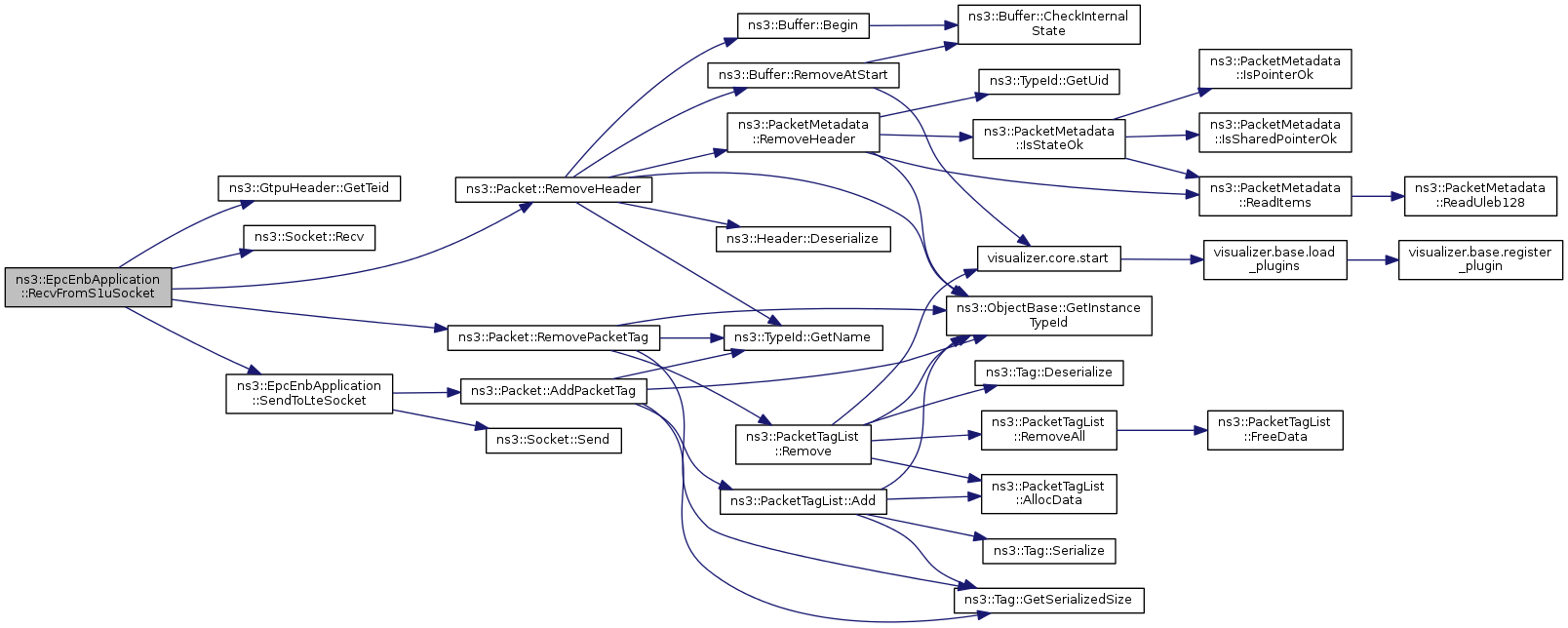

Here is the call graph for this function:
