ns3::EpcTftClassifier Class Reference

classifies IP packets accoding to Traffic Flow Templates (TFTs) More...

#include <epc-tft-classifier.h>

Inheritance diagram for ns3::EpcTftClassifier:

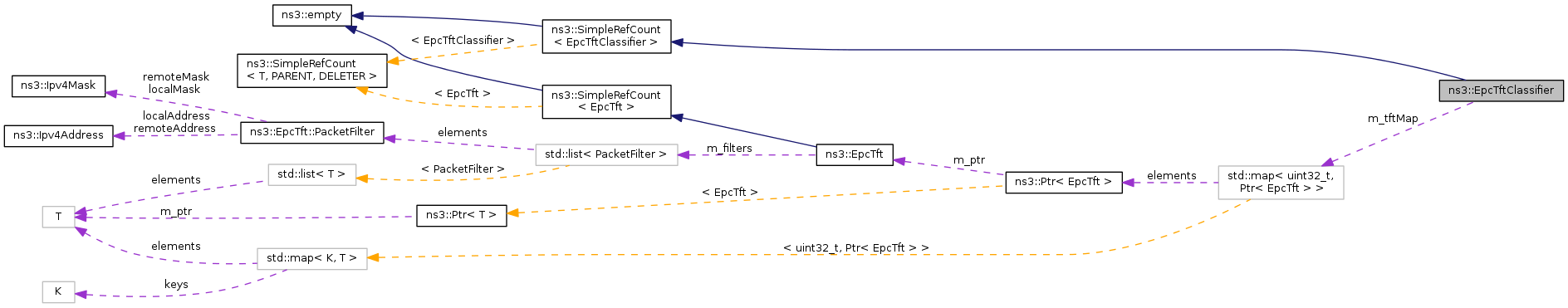

Collaboration diagram for ns3::EpcTftClassifier:

Public Member Functions
	EpcTftClassifier ()
void	Add (Ptr< EpcTft > tft, uint32_t id)
uint32_t	Classify (Ptr< Packet > p, EpcTft::Direction direction)
void	Delete (uint32_t id)
Public Member Functions inherited from ns3::SimpleRefCount< EpcTftClassifier >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Protected Attributes
std::map< uint32_t, Ptr< EpcTft > >	m_tftMap

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< EpcTftClassifier >
static void	Cleanup (void)

Detailed Description

classifies IP packets accoding to Traffic Flow Templates (TFTs)

Note

this implementation works with IPv4 only.

Definition at line 43 of file epc-tft-classifier.h.

Constructor & Destructor Documentation

ns3::EpcTftClassifier::EpcTftClassifier

(

)

Definition at line 43 of file epc-tft-classifier.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcTftClassifier::Add	(	Ptr< EpcTft >	tft,
		uint32_t	id
	)

add a TFT to the Classifier

Parameters

tft	the TFT to be added

Definition at line 49 of file epc-tft-classifier.cc.

References m_tftMap, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), and ns3::LteUeRrc::SetupRadioBearer().

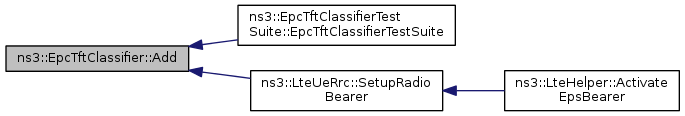

Here is the caller graph for this function:

uint32_t ns3::EpcTftClassifier::Classify	(	Ptr< Packet >	p,
		EpcTft::Direction	direction
	)

classify an IP packet

Parameters

p	the IP packet. It is assumed that the outmost header is an IPv4 header.

Returns

the identifier (>0) of the first TFT that matches with the IP packet; 0 if no TFT matched.

Definition at line 68 of file epc-tft-classifier.cc.

References ns3::Packet::Copy(), ns3::EpcTft::DOWNLINK, ns3::Ipv4Header::GetDestination(), ns3::UdpHeader::GetDestinationPort(), ns3::TcpHeader::GetDestinationPort(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::UdpHeader::GetSourcePort(), ns3::TcpHeader::GetSourcePort(), ns3::Ipv4Header::GetTos(), m_tftMap, ns3::EpcTft::Matches(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::UdpL4Protocol::PROT_NUMBER, ns3::TcpL4Protocol::PROT_NUMBER, ns3::Packet::RemoveHeader(), and ns3::EpcTft::UPLINK.

Referenced by ns3::EpcTftClassifierTestCase::DoRun(), and ns3::LteUeRrc::Send().

Here is the call graph for this function:

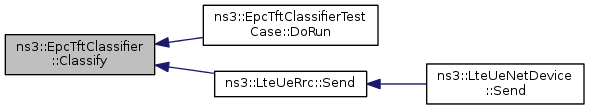

Here is the caller graph for this function:

void ns3::EpcTftClassifier::Delete

(

uint32_t

id

)

delete an existing TFT from the classifier

Parameters

id	the identifier of the TFT to be deleted

Definition at line 60 of file epc-tft-classifier.cc.

References m_tftMap, and NS_LOG_FUNCTION.

Member Data Documentation

std::map<uint32_t, Ptr<EpcTft> > ns3::EpcTftClassifier::m_tftMap

protected

Definition at line 76 of file epc-tft-classifier.h.

Referenced by Add(), Classify(), and Delete().

---

The documentation for this class was generated from the following files:

• src/lte/model/epc-tft-classifier.h
• src/lte/model/epc-tft-classifier.cc
