A Error channel, introducing deterministic delays on even/odd packets. Used for testing. More...
#include <error-channel.h>

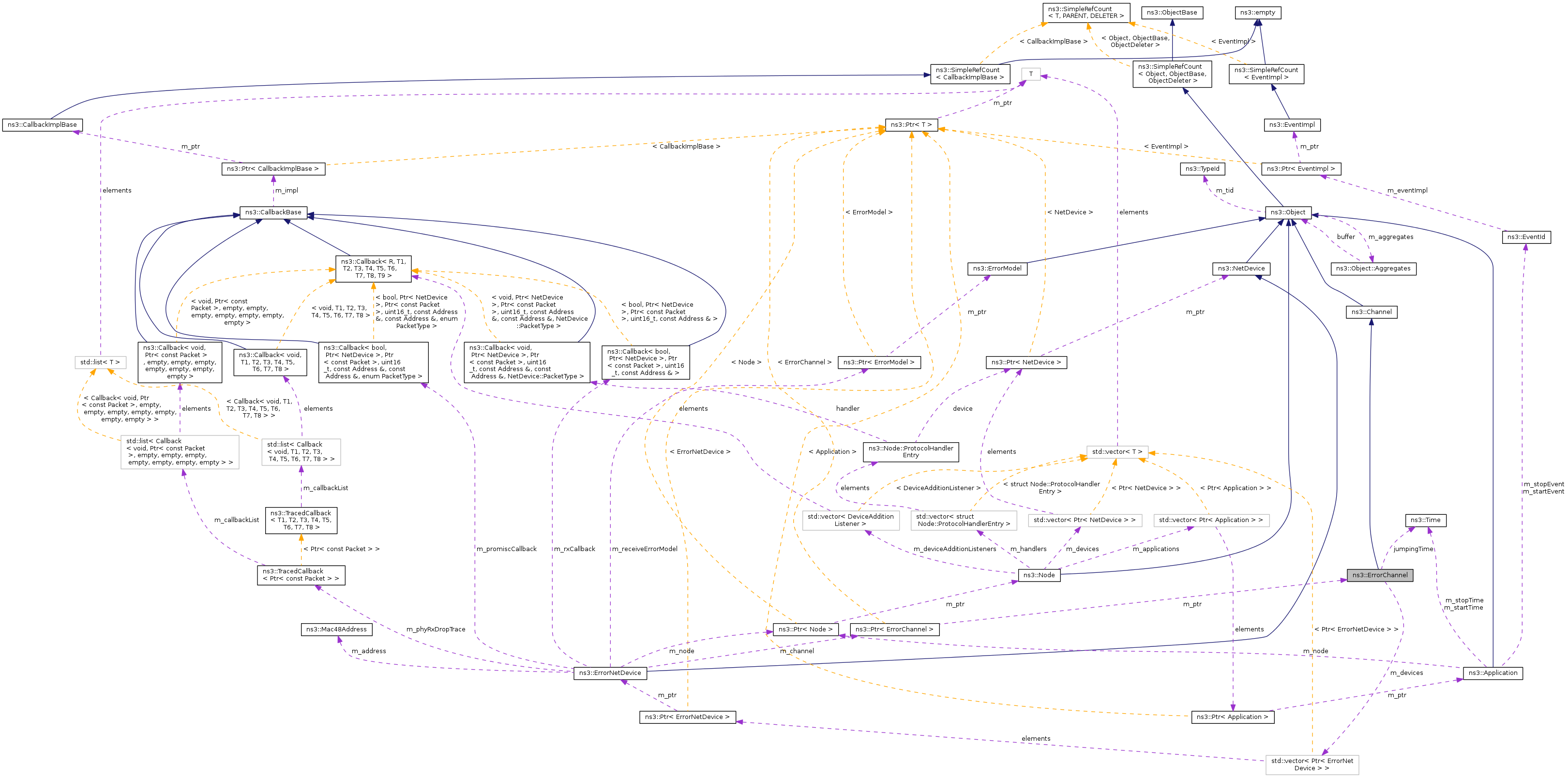

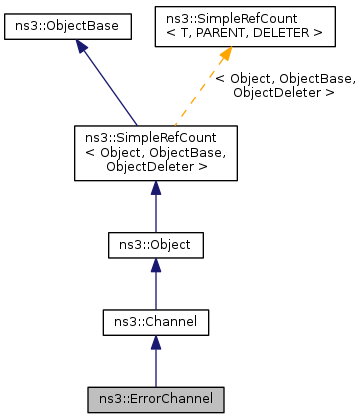

Inheritance diagram for ns3::ErrorChannel: Collaboration diagram for ns3::ErrorChannel:Public Member Functions | |
| ErrorChannel () | |
| void | Add (Ptr< ErrorNetDevice > device) |
| virtual Ptr< NetDevice > | GetDevice (uint32_t i) const |
| virtual uint32_t | GetNDevices (void) const |
| void | Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< ErrorNetDevice > sender) |
| void | SetJumpingMode (bool mode) |
| Set if the odd packets are delayed (even ones are not delayed ever) | |
| void | SetJumpingTime (Time delay) |
| Set the delay for the odd packets (even ones are not delayed) | |
| Public Member Functions inherited from ns3::Channel | |
| Channel () | |
| virtual | ~Channel () |
| uint32_t | GetId (void) const |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| virtual | ~Object () |
| void | AggregateObject (Ptr< Object > other) |
| void | Dispose (void) |
| AggregateIterator | GetAggregateIterator (void) const |
| virtual TypeId | GetInstanceTypeId (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| void | Start (void) |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| SimpleRefCount (const SimpleRefCount &o) | |
| uint32_t | GetReferenceCount (void) const |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| void | Ref (void) const |
| void | Unref (void) const |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::Channel. | |
Private Attributes | |
| bool | jumping |
| uint8_t | jumpingState |
| Time | jumpingTime |
| std::vector< Ptr < ErrorNetDevice > > | m_devices |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| virtual void | DoDispose (void) |
| virtual void | DoStart (void) |
| virtual void | NotifyNewAggregate (void) |
A Error channel, introducing deterministic delays on even/odd packets. Used for testing.
Definition at line 38 of file error-channel.h.
| ns3::ErrorChannel::ErrorChannel | ( | ) |
Definition at line 43 of file error-channel.cc.
References jumping, and jumpingState.
| void ns3::ErrorChannel::Add | ( | Ptr< ErrorNetDevice > | device | ) |
Definition at line 91 of file error-channel.cc.
References m_devices.
Referenced by ns3::ErrorNetDevice::SetChannel().

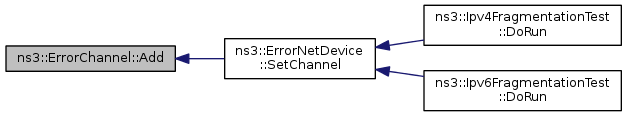

Here is the caller graph for this function:| i | index of NetDevice to retrieve |
This method must be implemented by subclasses.
Implements ns3::Channel.
Definition at line 102 of file error-channel.cc.
References m_devices.
|
virtual |
This method must be implemented by subclasses.
Implements ns3::Channel.
Definition at line 97 of file error-channel.cc.
References m_devices.
|
static |
This method returns the TypeId associated to ns3::Channel.
Attributes defined for this type:
No TraceSources defined for this type.
Reimplemented from ns3::Channel.
Definition at line 34 of file error-channel.cc.
References ns3::TypeId::SetParent().
Here is the call graph for this function:| void ns3::ErrorChannel::Send | ( | Ptr< Packet > | p, |
| uint16_t | protocol, | ||
| Mac48Address | to, | ||
| Mac48Address | from, | ||
| Ptr< ErrorNetDevice > | sender | ||
| ) |
Definition at line 63 of file error-channel.cc.
References ns3::Packet::Copy(), ns3::Node::GetId(), ns3::ErrorNetDevice::GetNode(), jumping, jumpingState, jumpingTime, m_devices, NS_LOG_FUNCTION, ns3::ErrorNetDevice::Receive(), ns3::Simulator::ScheduleWithContext(), and ns3::Seconds().
Referenced by ns3::ErrorNetDevice::Send(), and ns3::ErrorNetDevice::SendFrom().

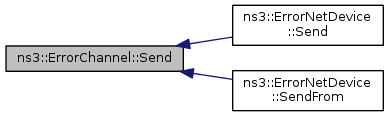

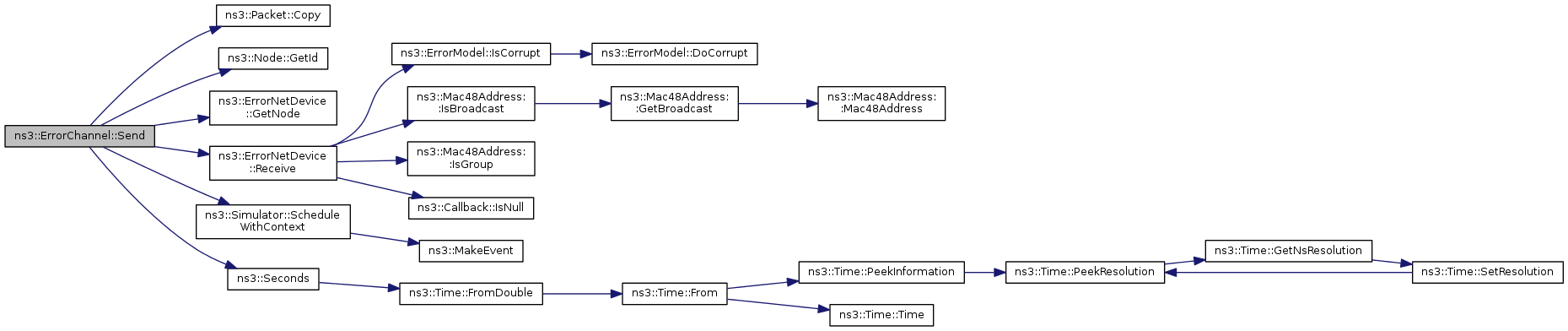

Here is the call graph for this function: Here is the caller graph for this function:| void ns3::ErrorChannel::SetJumpingMode | ( | bool | mode | ) |
Set if the odd packets are delayed (even ones are not delayed ever)
| mode | true if the odd packets should be delayed. |
Definition at line 56 of file error-channel.cc.
References jumping, and jumpingState.
Referenced by ns3::Ipv4FragmentationTest::DoRun(), and ns3::Ipv6FragmentationTest::DoRun().

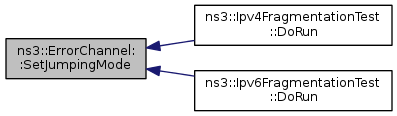

Here is the caller graph for this function:| void ns3::ErrorChannel::SetJumpingTime | ( | Time | delay | ) |
Set the delay for the odd packets (even ones are not delayed)
| delay | Delay for the odd packets. |
Definition at line 50 of file error-channel.cc.
References jumpingTime.
Referenced by ns3::Ipv4FragmentationTest::DoRun(), and ns3::Ipv6FragmentationTest::DoRun().

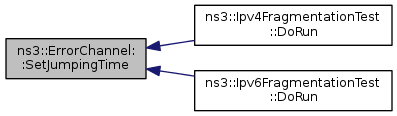

Here is the caller graph for this function:
|
private |
Definition at line 69 of file error-channel.h.
Referenced by ErrorChannel(), Send(), and SetJumpingMode().
|
private |
Definition at line 68 of file error-channel.h.
Referenced by ErrorChannel(), Send(), and SetJumpingMode().
|
private |
Definition at line 67 of file error-channel.h.
Referenced by Send(), and SetJumpingTime().
|
private |
Definition at line 66 of file error-channel.h.
Referenced by Add(), GetDevice(), GetNDevices(), and Send().
