#include <lte-spectrum-phy.h>

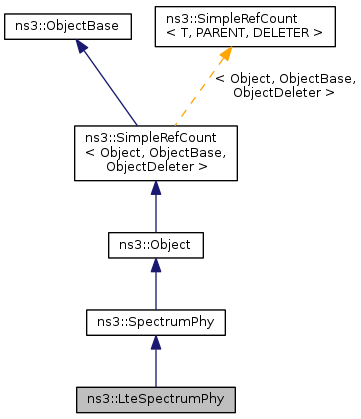

Inheritance diagram for ns3::LteSpectrumPhy:

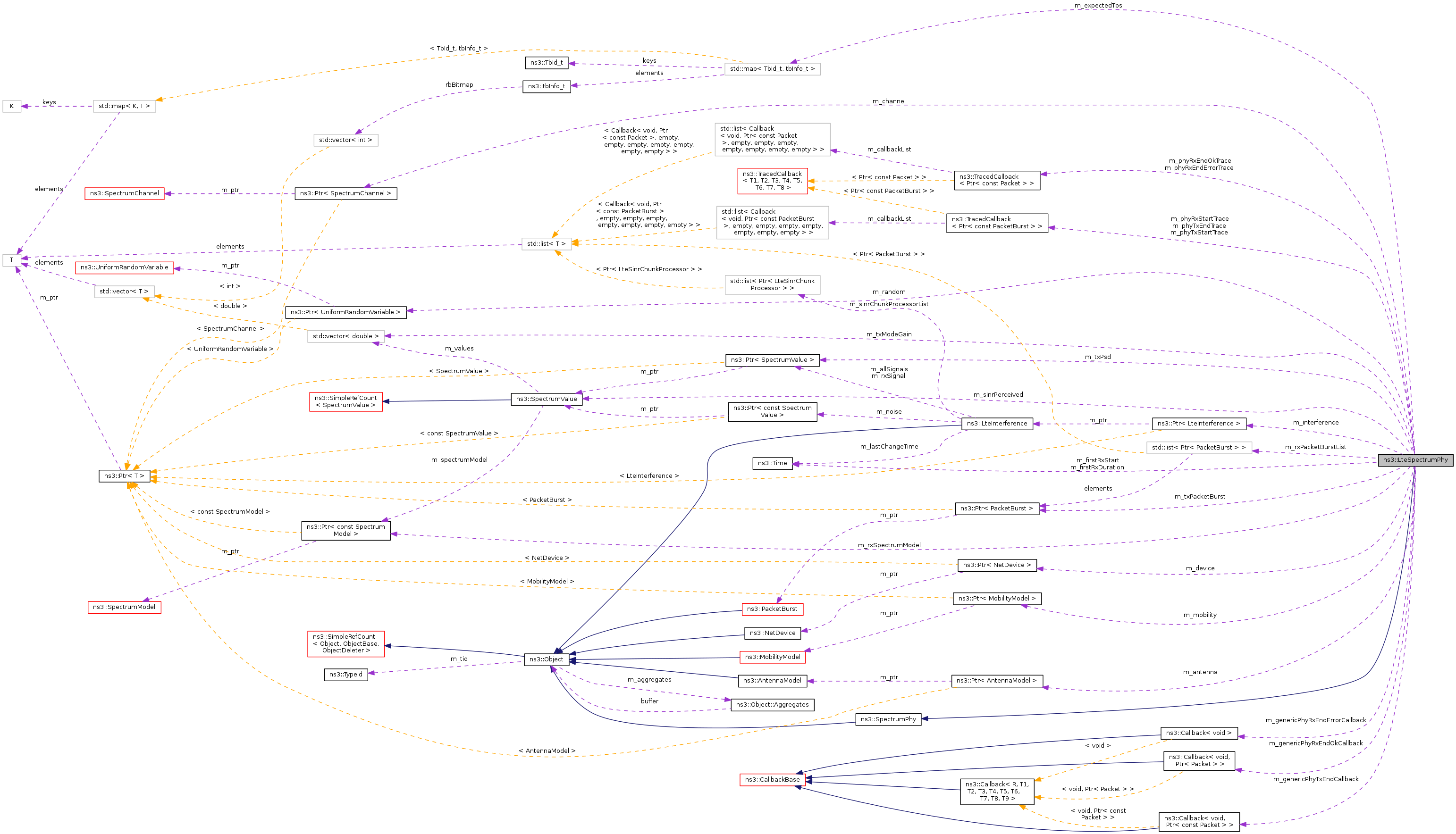

Collaboration diagram for ns3::LteSpectrumPhy:

Public Types
enum	State { IDLE, TX, RX }

Public Member Functions
	LteSpectrumPhy ()
virtual	~LteSpectrumPhy ()
void	AddExpectedTb (uint16_t rnti, uint16_t size, uint8_t mcs, std::vector< int > map, uint8_t layer)
void	AddSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)
int64_t	AssignStreams (int64_t stream)
virtual void	DoDispose ()
Ptr< NetDevice >	GetDevice ()
Ptr< MobilityModel >	GetMobility ()
Ptr< AntennaModel >	GetRxAntenna ()
Ptr< const SpectrumModel >	GetRxSpectrumModel () const
void	SetAntenna (Ptr< AntennaModel > a)
void	SetCellId (uint16_t cellId)
void	SetChannel (Ptr< SpectrumChannel > c)
void	SetDevice (Ptr< NetDevice > d)
void	SetGenericPhyRxEndErrorCallback (GenericPhyRxEndErrorCallback c)
void	SetGenericPhyRxEndOkCallback (GenericPhyRxEndOkCallback c)
void	SetGenericPhyTxEndCallback (GenericPhyTxEndCallback c)
void	SetMobility (Ptr< MobilityModel > m)
void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)
	set the noise power spectral density
void	SetState (State newState)
	Set the state of the phy layer.
void	SetTransmissionMode (uint8_t txMode)
void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)

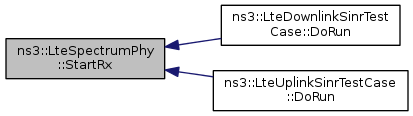

void	StartRx (Ptr< SpectrumSignalParameters > params)
bool	StartTx (Ptr< PacketBurst > pb)
void	UpdateSinrPerceived (const SpectrumValue &sinr)
Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()
virtual	~SpectrumPhy ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteSpectrumPhy.

Private Member Functions
void	ChangeState (State newState)
void	EndRx ()
void	EndTx ()
void	SetTxModeGain (uint8_t txMode, double gain)

Private Attributes
Ptr< AntennaModel >	m_antenna
uint16_t	m_cellId
Ptr< SpectrumChannel >	m_channel
Ptr< NetDevice >	m_device
expectedTbs_t	m_expectedTbs
Time	m_firstRxDuration
Time	m_firstRxStart
GenericPhyRxEndErrorCallback	m_genericPhyRxEndErrorCallback
GenericPhyRxEndOkCallback	m_genericPhyRxEndOkCallback
GenericPhyTxEndCallback	m_genericPhyTxEndCallback
Ptr< LteInterference >	m_interference
Ptr< MobilityModel >	m_mobility
bool	m_pemEnabled
TracedCallback< Ptr< const Packet > >	m_phyRxEndErrorTrace
TracedCallback< Ptr< const Packet > >	m_phyRxEndOkTrace
TracedCallback< Ptr< const PacketBurst > >	m_phyRxStartTrace
TracedCallback< Ptr< const PacketBurst > >	m_phyTxEndTrace
TracedCallback< Ptr< const PacketBurst > >	m_phyTxStartTrace
Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables.
std::list< Ptr< PacketBurst > >	m_rxPacketBurstList
Ptr< const SpectrumModel >	m_rxSpectrumModel
SpectrumValue	m_sinrPerceived
State	m_state
uint8_t	m_transmissionMode
std::vector< double >	m_txModeGain
Ptr< PacketBurst >	m_txPacketBurst
Ptr< SpectrumValue >	m_txPsd

Friends
class	LteUePhy

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

The LteSpectrumPhy models the physical layer of LTE

It supports a single antenna model instance which is used for both transmission and reception.

Definition at line 79 of file lte-spectrum-phy.h.

Member Enumeration Documentation

enum ns3::LteSpectrumPhy::State

PHY states

Enumerator:

IDLE
TX
RX

Definition at line 89 of file lte-spectrum-phy.h.

Constructor & Destructor Documentation

ns3::LteSpectrumPhy::LteSpectrumPhy ( )

Definition at line 70 of file lte-spectrum-phy.cc.

References m_interference, m_random, m_txModeGain, NS_LOG_FUNCTION, and ns3::ObjectBase::SetAttribute().

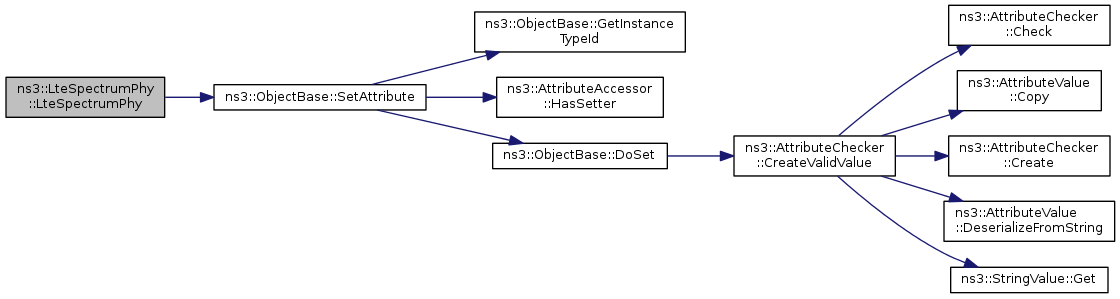

Here is the call graph for this function:

ns3::LteSpectrumPhy::~LteSpectrumPhy ( )

virtual

Definition at line 86 of file lte-spectrum-phy.cc.

References m_expectedTbs, m_txModeGain, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSpectrumPhy::AddExpectedTb	(	uint16_t	rnti,
		uint16_t	size,
		uint8_t	mcs,
		std::vector< int >	map,
		uint8_t	layer
	)

Parameters

rnti	the rnti of the source of the TB
size	the size of the TB
mcs	the MCS of the TB
map	the map of RB(s) used
layer	the layer (in case of MIMO tx)

Definition at line 455 of file lte-spectrum-phy.cc.

References m_expectedTbs, ns3::TbId_t::m_layer, ns3::TbId_t::m_rnti, and NS_LOG_LOGIC.

Referenced by ns3::LteUePhy::ReceiveIdealControlMessage(), and ns3::LteEnbPhy::StartSubFrame().

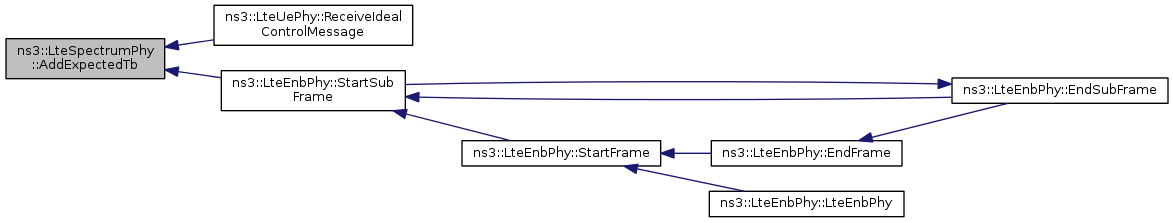

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::AddSinrChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Parameters

p	the new LteSinrChunkProcessor to be added to the processing chain

Definition at line 554 of file lte-spectrum-phy.cc.

References ns3::LteInterference::AddSinrChunkProcessor(), and m_interference.

Referenced by ns3::LteLinkAdaptationTestCase::DoRun(), ns3::LteEnbAntennaTestCase::DoRun(), and ns3::LteInterferenceTestCase::DoRun().

Here is the call graph for this function:

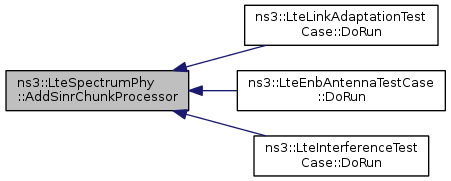

Here is the caller graph for this function:

int64_t ns3::LteSpectrumPhy::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 595 of file lte-spectrum-phy.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Referenced by ns3::LteHelper::AssignStreams().

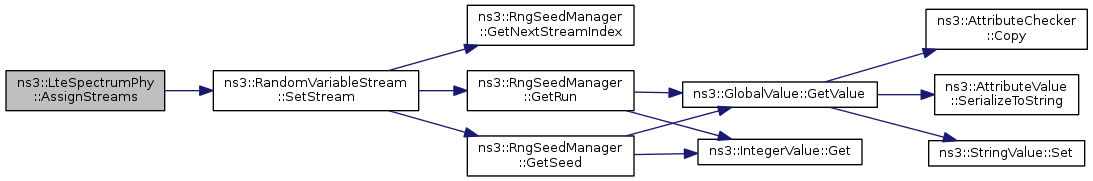

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::ChangeState ( State newState )

private

Definition at line 269 of file lte-spectrum-phy.cc.

References m_state, and NS_LOG_LOGIC.

Referenced by EndRx(), EndTx(), SetState(), StartRx(), and StartTx().

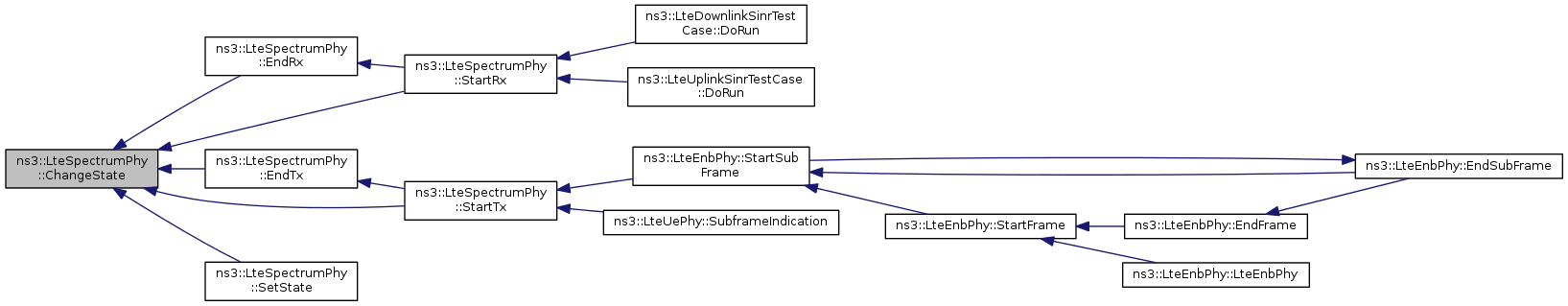

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 93 of file lte-spectrum-phy.cc.

References ns3::Object::Dispose(), m_channel, m_device, m_genericPhyRxEndErrorCallback, m_genericPhyRxEndOkCallback, m_genericPhyTxEndCallback, m_interference, m_mobility, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteSpectrumPhy::EndRx ( )

private

Definition at line 475 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::LteInterference::EndRx(), ns3::LteRadioBearerTag::GetLayer(), ns3::LteRadioBearerTag::GetRnti(), ns3::LteMiErrorModel::GetTbError(), ns3::UniformRandomVariable::GetValue(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), list, m_expectedTbs, m_genericPhyRxEndOkCallback, m_interference, ns3::TbId_t::m_layer, m_pemEnabled, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_random, ns3::TbId_t::m_rnti, m_rxPacketBurstList, m_sinrPerceived, m_state, m_transmissionMode, m_txModeGain, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, and RX.

Referenced by StartRx().

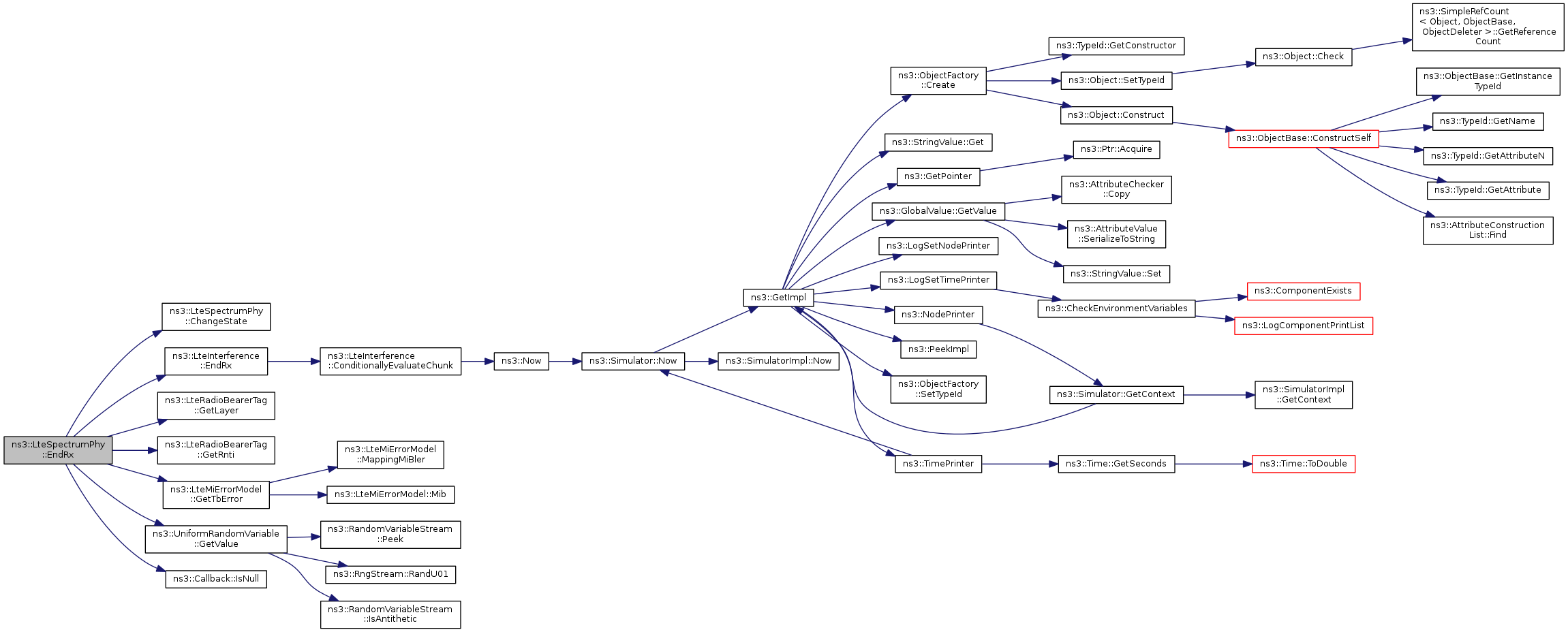

Here is the call graph for this function:

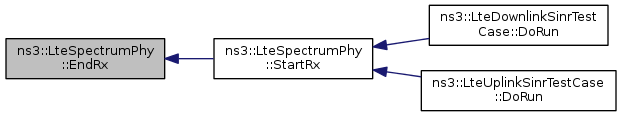

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndTx ( )

private

Definition at line 337 of file lte-spectrum-phy.cc.

References ns3::PacketBurst::Begin(), ChangeState(), ns3::Packet::Copy(), ns3::PacketBurst::End(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), list, m_genericPhyTxEndCallback, m_phyTxEndTrace, m_state, m_txPacketBurst, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and TX.

Referenced by StartTx().

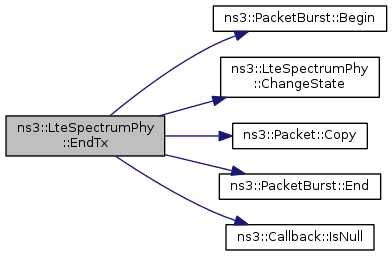

Here is the call graph for this function:

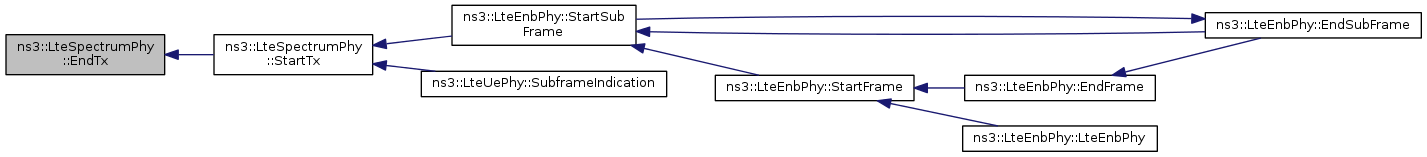

Here is the caller graph for this function:

Ptr< NetDevice > ns3::LteSpectrumPhy::GetDevice ( )

virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 160 of file lte-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::LteSpectrumPhy::GetMobility ( )

virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 168 of file lte-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

Ptr< AntennaModel > ns3::LteSpectrumPhy::GetRxAntenna ( )

virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 249 of file lte-spectrum-phy.cc.

References m_antenna.

Ptr< const SpectrumModel > ns3::LteSpectrumPhy::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 199 of file lte-spectrum-phy.cc.

References m_rxSpectrumModel.

TypeId ns3::LteSpectrumPhy::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteSpectrumPhy.

Attributes defined for this type:

PemEnabled: Activate/Deactivate the error model (by default is active).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

TraceSources defined for this type:

TxStart: Trace fired when a new transmission is started
TxEnd: Trace fired when a previosuly started transmission is finished
RxStart: Trace fired when the start of a signal is detected
RxEndOk: Trace fired when a previosuly started RX terminates successfully
RxEndError: Trace fired when a previosuly started RX terminates with an error

Reimplemented from ns3::SpectrumPhy.

Definition at line 129 of file lte-spectrum-phy.cc.

References m_pemEnabled, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_phyRxStartTrace, m_phyTxEndTrace, m_phyTxStartTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

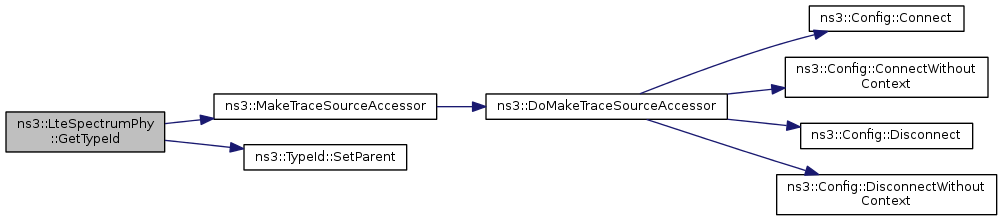

Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetAntenna ( Ptr< AntennaModel > a )

set the AntennaModel to be used

Parameters

a	the Antenna Model

Definition at line 255 of file lte-spectrum-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetCellId ( uint16_t cellId )

Parameters

cellId the Cell Identifier

Definition at line 548 of file lte-spectrum-phy.cc.

References m_cellId.

Referenced by ns3::LtePhy::DoSetCellId(), and ns3::LteUePhy::SetEnbCellId().

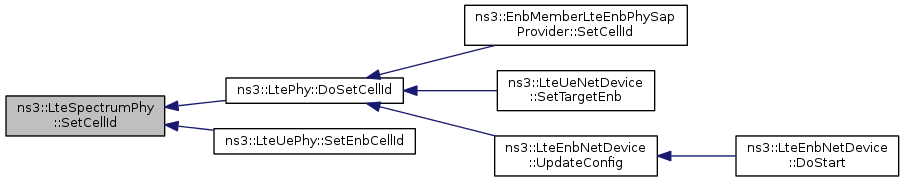

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetChannel ( Ptr< SpectrumChannel > c )

virtual

Set the channel attached to this device.

Parameters

c	the channel

Implements ns3::SpectrumPhy.

Definition at line 192 of file lte-spectrum-phy.cc.

References m_channel, and NS_LOG_FUNCTION.

Referenced by ns3::LtePhy::SetDownlinkChannel(), and ns3::LtePhy::SetUplinkChannel().

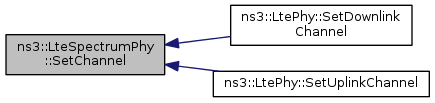

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetDevice ( Ptr< NetDevice > d )

virtual

set the associated NetDevice instance

Parameters

d	the NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 176 of file lte-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetGenericPhyRxEndErrorCallback ( GenericPhyRxEndErrorCallback c )

set the callback for the end of a RX in error, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 234 of file lte-spectrum-phy.cc.

References m_genericPhyRxEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetGenericPhyRxEndOkCallback ( GenericPhyRxEndOkCallback c )

set the callback for the successful end of a RX, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 242 of file lte-spectrum-phy.cc.

References m_genericPhyRxEndOkCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetGenericPhyTxEndCallback ( GenericPhyTxEndCallback c )

set the callback for the end of a TX, as part of the interconnections betweenthe PHY and the MAC

Parameters

c	the callback

Definition at line 226 of file lte-spectrum-phy.cc.

References m_genericPhyTxEndCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetMobility ( Ptr< MobilityModel > m )

virtual

Set the mobility model associated with this device.

Parameters

m	the mobility model

Implements ns3::SpectrumPhy.

Definition at line 184 of file lte-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue > noisePsd )

set the noise power spectral density

Parameters

noisePsd the Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

Definition at line 215 of file lte-spectrum-phy.cc.

References ns3::SpectrumValue::GetSpectrumModel(), m_interference, m_rxSpectrumModel, NS_ASSERT, NS_LOG_FUNCTION, and ns3::LteInterference::SetNoisePowerSpectralDensity().

Referenced by ns3::LteEnbPhy::DoStart(), and ns3::LteUePhy::DoStart().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetState ( State newState )

Set the state of the phy layer.

Parameters

newState the state

Definition at line 262 of file lte-spectrum-phy.cc.

References ChangeState().

Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetTransmissionMode ( uint8_t txMode )

Parameters

txMode UE transmission mode (SISO, MIMO tx diversity, ...)

Definition at line 560 of file lte-spectrum-phy.cc.

References m_transmissionMode, m_txModeGain, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::DoSetTransmissionMode().

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetTxModeGain	(	uint8_t	txMode,
		double	gain
	)

private

Definition at line 569 of file lte-spectrum-phy.cc.

References m_txModeGain, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SetTxModeGain().

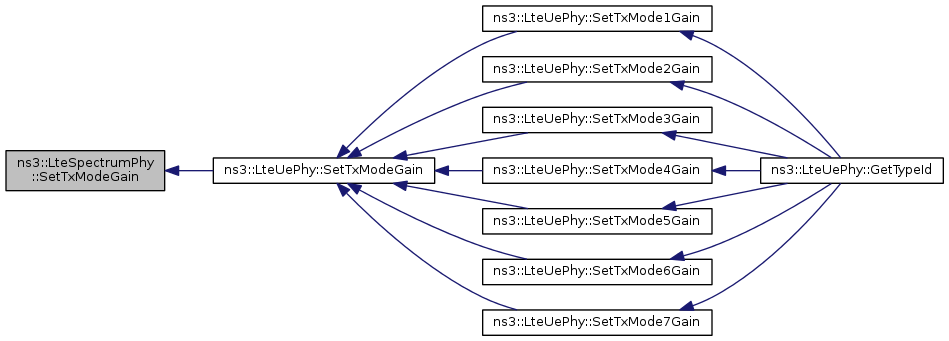

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::SetTxPowerSpectralDensity ( Ptr< SpectrumValue > txPsd )

set the Power Spectral Density of outgoing signals in W/Hz.

Parameters

txPsd

Definition at line 206 of file lte-spectrum-phy.cc.

References m_txPsd, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbPhy::DoSetDownlinkSubChannels(), and ns3::LteUePhy::SetSubChannelsForTransmission().

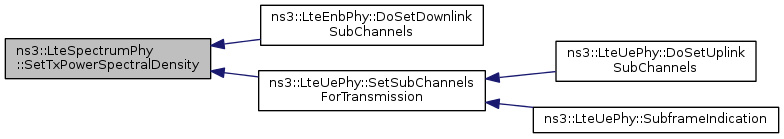

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::StartRx ( Ptr< SpectrumSignalParameters > params )

virtual

Notify the SpectrumPhy instance of an incoming signal

Parameters

params the parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 362 of file lte-spectrum-phy.cc.

References ns3::LteInterference::AddSignal(), ChangeState(), EndRx(), IDLE, m_cellId, m_firstRxDuration, m_firstRxStart, m_interference, m_phyRxStartTrace, m_rxPacketBurstList, m_state, ns3::Now(), ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::RemovePacketTag(), RX, ns3::Simulator::Schedule(), ns3::LteInterference::StartRx(), and TX.

Referenced by ns3::LteDownlinkSinrTestCase::DoRun(), and ns3::LteUplinkSinrTestCase::DoRun().

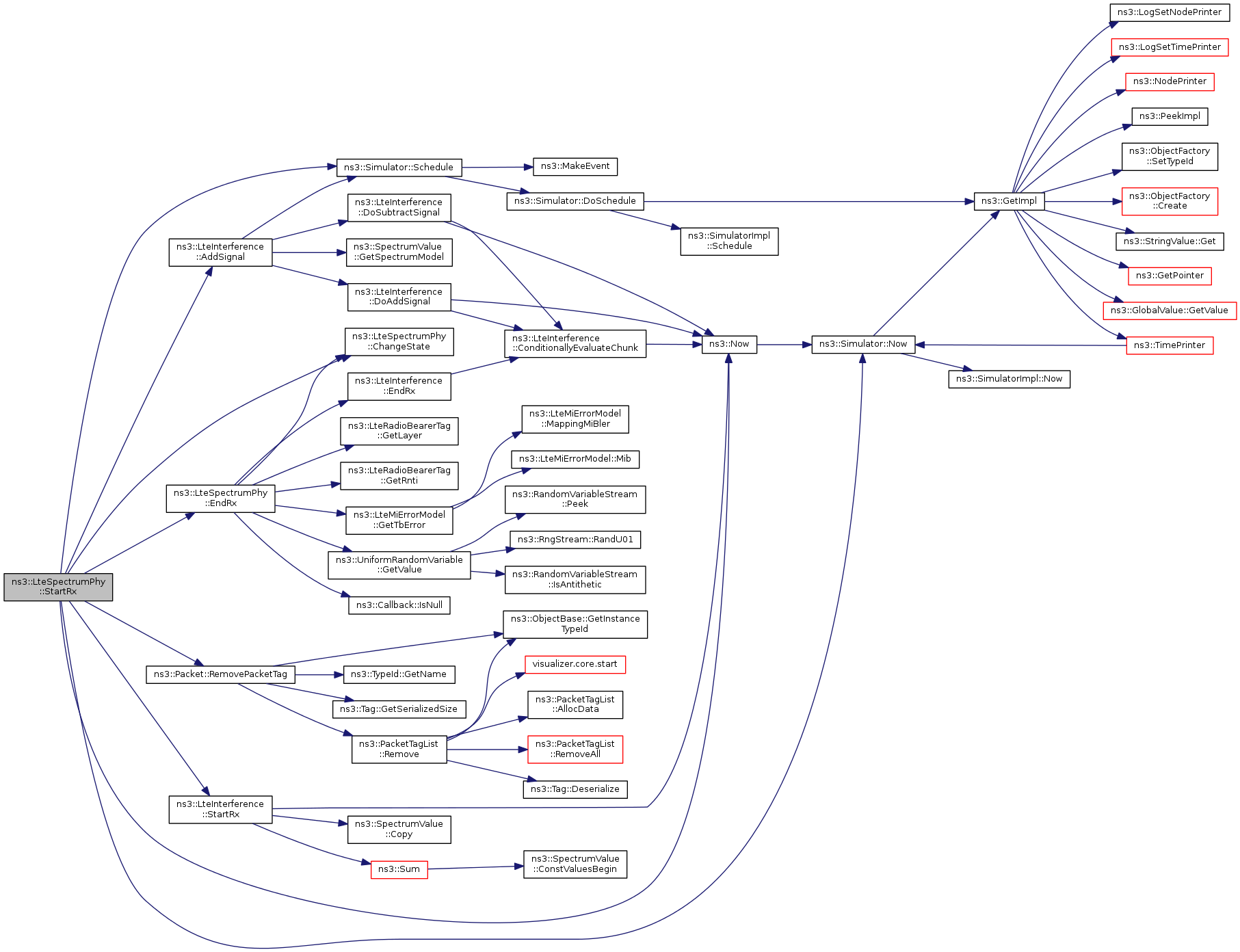

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteSpectrumPhy::StartTx ( Ptr< PacketBurst > pb )

Start a transmission

Parameters

pb	the burst of packets to be transmitted

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 277 of file lte-spectrum-phy.cc.

References ns3::Packet::AddPacketTag(), ns3::PacketBurst::Begin(), ChangeState(), ns3::PacketBurst::End(), EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_phyTxStartTrace, m_state, m_txPacketBurst, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::SpectrumChannel::StartTx(), and TX.

Referenced by ns3::LteEnbPhy::StartSubFrame(), and ns3::LteUePhy::SubframeIndication().

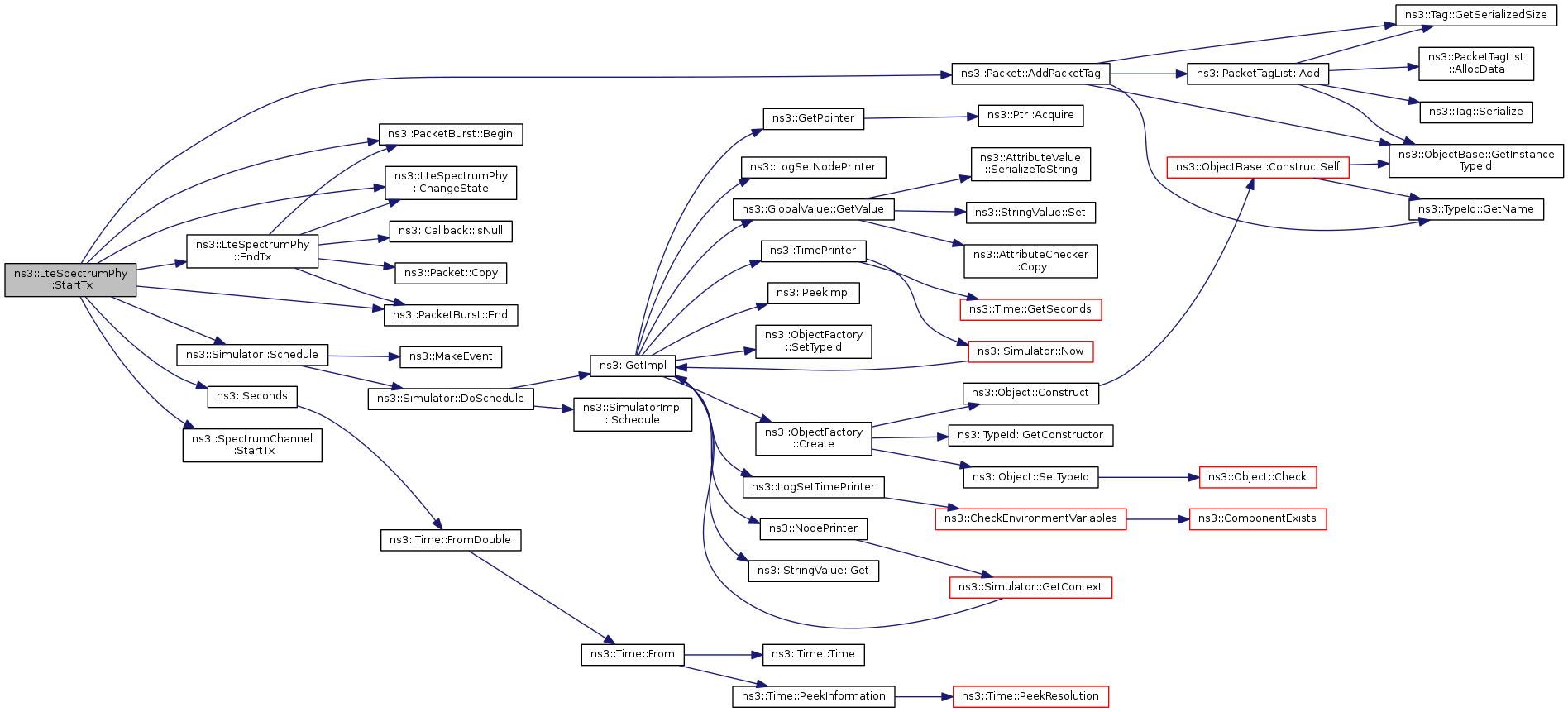

Here is the call graph for this function:

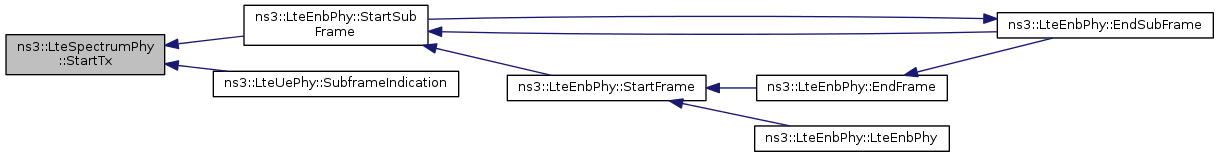

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::UpdateSinrPerceived ( const SpectrumValue & sinr )

Parameters

sinr	vector of sinr perceived per each RB

Definition at line 447 of file lte-spectrum-phy.cc.

References m_sinrPerceived, and NS_LOG_FUNCTION.

Referenced by ns3::LtePemSinrChunkProcessor::End().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class LteUePhy

friend

Definition at line 211 of file lte-spectrum-phy.h.

Member Data Documentation

Ptr<AntennaModel> ns3::LteSpectrumPhy::m_antenna

private

Definition at line 232 of file lte-spectrum-phy.h.

Referenced by GetRxAntenna(), SetAntenna(), and StartTx().

uint16_t ns3::LteSpectrumPhy::m_cellId

private

Definition at line 258 of file lte-spectrum-phy.h.

Referenced by SetCellId(), StartRx(), and StartTx().

Ptr<SpectrumChannel> ns3::LteSpectrumPhy::m_channel

private

Definition at line 235 of file lte-spectrum-phy.h.

Referenced by DoDispose(), SetChannel(), and StartTx().

Ptr<NetDevice> ns3::LteSpectrumPhy::m_device

private

Definition at line 233 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

expectedTbs_t ns3::LteSpectrumPhy::m_expectedTbs

private

Definition at line 260 of file lte-spectrum-phy.h.

Referenced by AddExpectedTb(), EndRx(), and ~LteSpectrumPhy().

Time ns3::LteSpectrumPhy::m_firstRxDuration

private

Definition at line 244 of file lte-spectrum-phy.h.

Referenced by StartRx().

Time ns3::LteSpectrumPhy::m_firstRxStart

private

Definition at line 243 of file lte-spectrum-phy.h.

Referenced by StartRx().

GenericPhyRxEndErrorCallback ns3::LteSpectrumPhy::m_genericPhyRxEndErrorCallback

private

Definition at line 253 of file lte-spectrum-phy.h.

Referenced by DoDispose(), and SetGenericPhyRxEndErrorCallback().

GenericPhyRxEndOkCallback ns3::LteSpectrumPhy::m_genericPhyRxEndOkCallback

private

Definition at line 254 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRx(), and SetGenericPhyRxEndOkCallback().

GenericPhyTxEndCallback ns3::LteSpectrumPhy::m_genericPhyTxEndCallback

private

Definition at line 252 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndTx(), and SetGenericPhyTxEndCallback().

Ptr<LteInterference> ns3::LteSpectrumPhy::m_interference

private

Definition at line 256 of file lte-spectrum-phy.h.

Referenced by AddSinrChunkProcessor(), DoDispose(), EndRx(), LteSpectrumPhy(), SetNoisePowerSpectralDensity(), and StartRx().

Ptr<MobilityModel> ns3::LteSpectrumPhy::m_mobility

private

Definition at line 231 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

bool ns3::LteSpectrumPhy::m_pemEnabled

private

Definition at line 265 of file lte-spectrum-phy.h.

Referenced by EndRx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::LteSpectrumPhy::m_phyRxEndErrorTrace

private

Definition at line 250 of file lte-spectrum-phy.h.

Referenced by EndRx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::LteSpectrumPhy::m_phyRxEndOkTrace

private

Definition at line 249 of file lte-spectrum-phy.h.

Referenced by EndRx(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyRxStartTrace

private

Definition at line 248 of file lte-spectrum-phy.h.

Referenced by GetTypeId(), and StartRx().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyTxEndTrace

private

Definition at line 247 of file lte-spectrum-phy.h.

Referenced by EndTx(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyTxStartTrace

private

Definition at line 246 of file lte-spectrum-phy.h.

Referenced by GetTypeId(), and StartTx().

Ptr<UniformRandomVariable> ns3::LteSpectrumPhy::m_random

private

Provides uniform random variables.

Definition at line 264 of file lte-spectrum-phy.h.

Referenced by AssignStreams(), EndRx(), and LteSpectrumPhy().

std::list<Ptr<PacketBurst> > ns3::LteSpectrumPhy::m_rxPacketBurstList

private

Definition at line 240 of file lte-spectrum-phy.h.

Referenced by EndRx(), and StartRx().

Ptr<const SpectrumModel> ns3::LteSpectrumPhy::m_rxSpectrumModel

private

Definition at line 237 of file lte-spectrum-phy.h.

Referenced by GetRxSpectrumModel(), and SetNoisePowerSpectralDensity().

SpectrumValue ns3::LteSpectrumPhy::m_sinrPerceived

private

Definition at line 261 of file lte-spectrum-phy.h.

Referenced by EndRx(), and UpdateSinrPerceived().

State ns3::LteSpectrumPhy::m_state

private

Definition at line 242 of file lte-spectrum-phy.h.

Referenced by ChangeState(), EndRx(), EndTx(), StartRx(), and StartTx().

uint8_t ns3::LteSpectrumPhy::m_transmissionMode

private

Definition at line 267 of file lte-spectrum-phy.h.

Referenced by EndRx(), and SetTransmissionMode().

std::vector<double> ns3::LteSpectrumPhy::m_txModeGain

private

Definition at line 268 of file lte-spectrum-phy.h.

Referenced by EndRx(), LteSpectrumPhy(), SetTransmissionMode(), SetTxModeGain(), and ~LteSpectrumPhy().

Ptr<PacketBurst> ns3::LteSpectrumPhy::m_txPacketBurst

private

Definition at line 239 of file lte-spectrum-phy.h.

Referenced by EndTx(), and StartTx().

Ptr<SpectrumValue> ns3::LteSpectrumPhy::m_txPsd

private

Definition at line 238 of file lte-spectrum-phy.h.

Referenced by SetTxPowerSpectralDensity(), and StartTx().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
